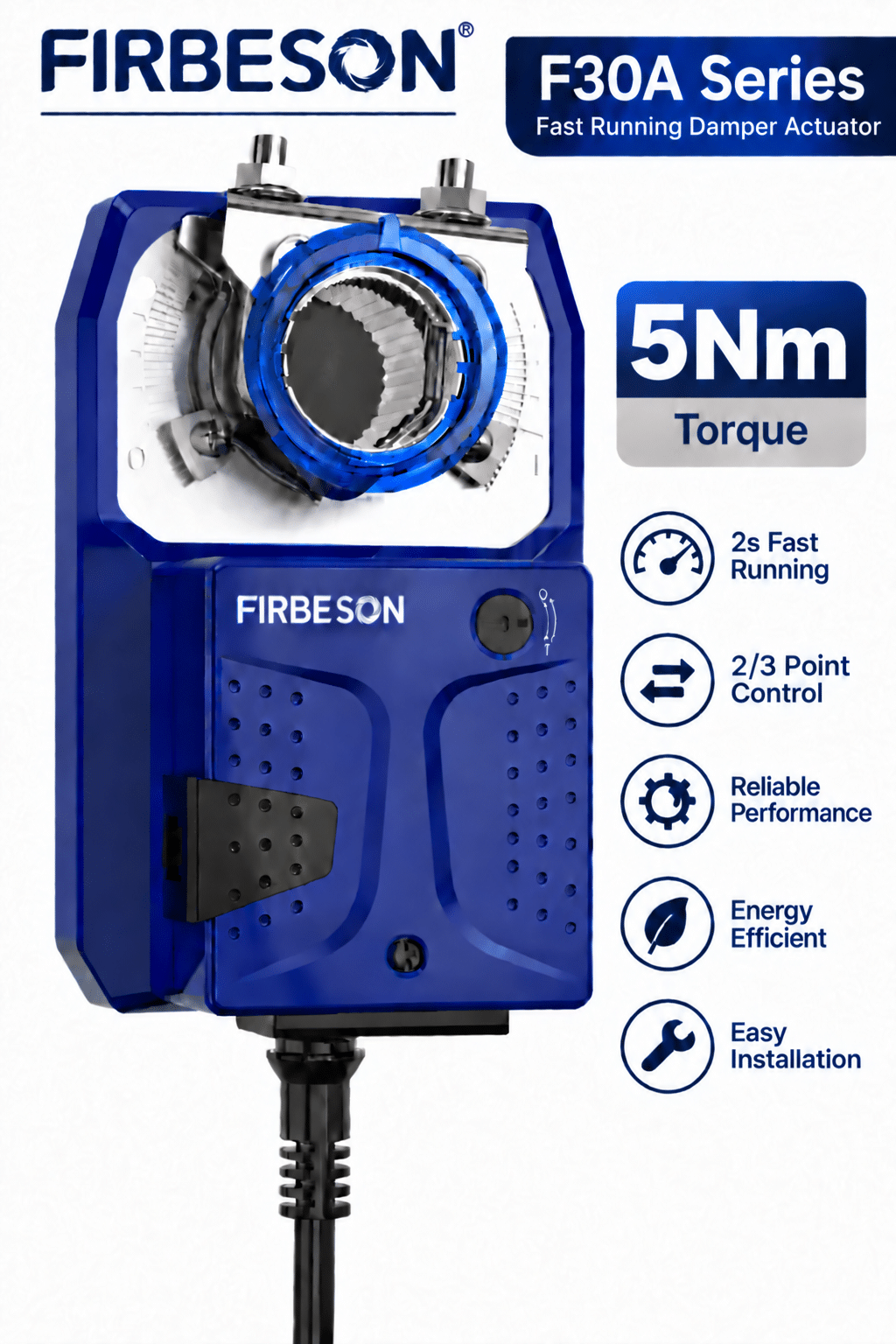

F30A Series Fast-Running Damper Actuator designed for HVAC air dampers.
F30A5D230-Q – 5Nm, 2s, 2 or 3 Point Switching Control, No Auxiliary Switches, AC 230V
Model
|
Nominal voltage
|
Control
|
Auxiliary switches
|
| F30A-5D24-Q |
AC/DC 24 V |
2/3 point |
Without |
| F30A-5D230-Q |
AC 230 V |
2/3 point |
Without |
| F30A-5M24-Q |
AC/DC 24 V |
Modulating |
Without |
| F30A-5D24-SQ |
AC/DC 24 V |
2/3 point |
2 SPDT |
| F30A-5D230-SQ |
AC 230 V |
2/3 point |
2 SPDT |
| F30A-5M24-SQ |
AC/DC 24 V |
Modulating |
2 SPDT |
Order code
F30A – torque/control/power source – accessory
Code element
|
Meaning
|
| F30 |
Series designation |
| A |
Standard damper actuator |
| 5 / 10 / 16 |
Torque in Nm |
| D / M |
D: 2/3 point; M: modulating |
| 24 / 230 |
24: AC/DC 19.2–28.8 V; 230: AC 85–265 V |
| Q / SQ |
Q: fast running; SQ: auxiliary switches |
Electrical parameters
Parameter
|
24 V models
|
230 V models
|
| Models |
F30A-5D24-Q / -SQ
F30A-5M24-Q / -SQ |
F30A-5D230-Q / -SQ |
| Nominal voltage |
AC/DC 24 V, 50/60 Hz |
AC 230 V, 50/60 Hz |
| Voltage range |
AC/DC 19.2–28.8 V |
AC 85–265 V |
Parameter
|
Specification
|
| Power consumption on |
15 W |
| Power consumption off |
2 W |
| Cable |
2/3 point: 1 m, 3 × 0.75 mm²
Modulating: 1 m, 4 × 0.5 mm²
Positional feedback: 1 m, 6 × 0.5 mm² |
| Torque |
5 Nm |
| Damper area |
1 m² |
| Running time |
2.5–3.5 seconds |
| Control signal |
D models: 2/3 point
M models: 0(2)–10 V or 0(4)–20 mA |
| Angle of rotation |
0–90° (maximum 93°) |
| Direction of rotation |
L/R switch |
| Positional feedback |
None or 2 SPDT |
| Life cycle |
≥ 30,000 |
| Noise level |
60 dB |
| Protection class |
II / III |
| Degree of protection |
IP54 |
| Ambient temperature |
-30 to +50°C |
| Ambient humidity |
5–95% RH |
| Non-operating temperature |
-40 to +80°C |
| Spindle diameter |
12–26.7 mm |
| Weight |
1.0 kg |
| Certificates |
CE, UKCA, RoHS |
