Firbeson Actuators

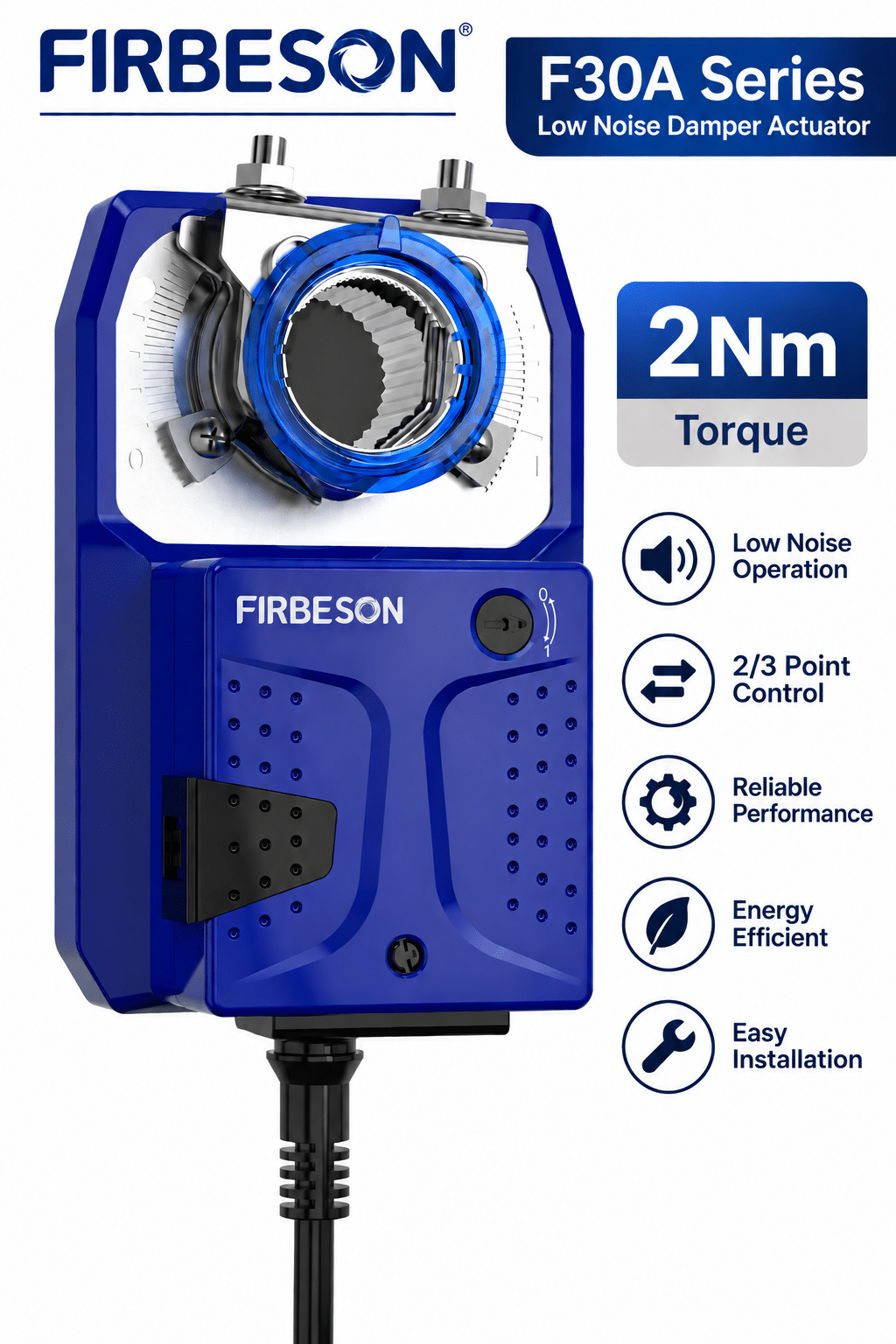

F30A Series Low Noise Damper Actuator – 2Nm, 2/3 Point Control Signal, With 2 Auxiliary Switches, AC/DC24V
Original price was: £358.00.£179.00Current price is: £179.00. Exc. VAT
Fiberson specialises in high-quality electric damper actuators and valves for fire & smoke safety and standard HVAC systems.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Certified, Advanced Damper Actuators for HVAC Controls: reliable and efficient actuators designed for precise airflow control in standard HVAC and ventilation systems. Fiberson specialises in high-quality electric damper actuators and valves for fire & smoke safety and standard HVAC systems.

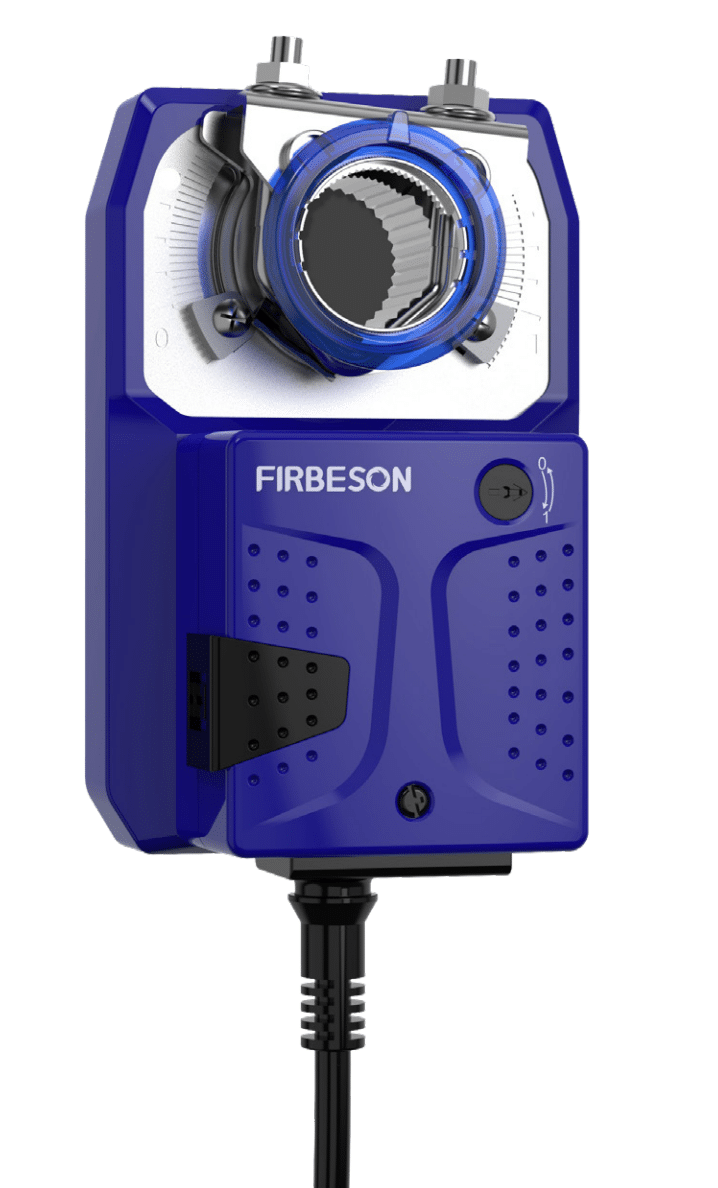

F30A Series Low Noise Damper Actuator designed for HVAC air dampers.
F30A2D24-SL – 2Nm, 2/3 Point Control Signal, With 2 Auxiliary Switches, AC/DC24V
Model |
Nominal voltage |
Control |
Auxiliary switches |
| F30A-2D24-L | AC/DC 24V | 2/3 point | Without |
| F30A-2D24-SL | AC/DC 24V | 2/3 point | 2 SPDT |
| F30A-2D230-L | AC 230V | 2/3 point | Without |
| F30A-2D230-SL | AC 230V | 2/3 point | 2 SPDT |
| F30A-2M24-L | AC/DC 24V | Modulating | Without |
| F30A-2M24-SL | AC/DC 24V | Modulating | 2 SPDT |
Electrical parameters
Parameter |
D24 models |
D230 models |
M24 models |
| Nominal voltage | AC/DC 24V 50/60Hz | AC 230V 50/60Hz | AC/DC 24V 50/60Hz |
| Voltage range | AC/DC 19.2–28.8V | AC 85–265V | AC/DC 19.2–28.8V |
| Control signal | 2/3 point | 2/3 point | 0(2)–10V or 0(4)–20mA |
| Power consumption on | 1.5W | 1.5W | 1.5W |
| Power consumption off | 0.7W | 0.7W | 0.7W |
Cable information
Application |
Cable specification |
| 2/3 point control | 1 m cable, 3 × 0.75 mm² |
| Modulating control | 1 m cable, 4 × 0.5 mm² |
| Positional feedback | 1 m cable, 6 × 0.5 mm² |
Common specifications
Parameter |
Specification |
| Torque | 2Nm |
| Damper area | 0.5m² |
| Running time | 75 seconds |
| Angle of rotation | 0–90° maximum 93° |
| Direction of rotation | L/R switch |
| Positional feedback | None or 2 SPDT |
| Life cycle | ≥70,000 |
| Noise level | < 35 dB |
| Protection class | II/III |
| Degree of protection | IP54 |
| Ambient temperature | −30 to +50°C |
| Ambient humidity | 5–95% RH |
| Non-operating temperature | −40 to +80°C |
| Spindle diameter | 8–18mm |
| Weight | 0.5kg |
| Certificates | CE, UKCA, RoHS |
Series and order codes
Code element |
Meaning |
| F30 | Series designation |
| A | Standard damper actuator |
| Torque | 2Nm, 5Nm or 10Nm in the series |
| D | 2/3 point control |
| M | Modulating control |
| 24 | AC/DC 19.2–28.8V supply |
| 230 | AC 85–265V supply |
| L | Low noise |
| SL | Auxiliary switches |
Download the PDF file below
Additional information
| Weight | 0.5 kg |
|---|
