Fan Speed Controller 8 Amps Soft Start
£145.00 Exc. VAT

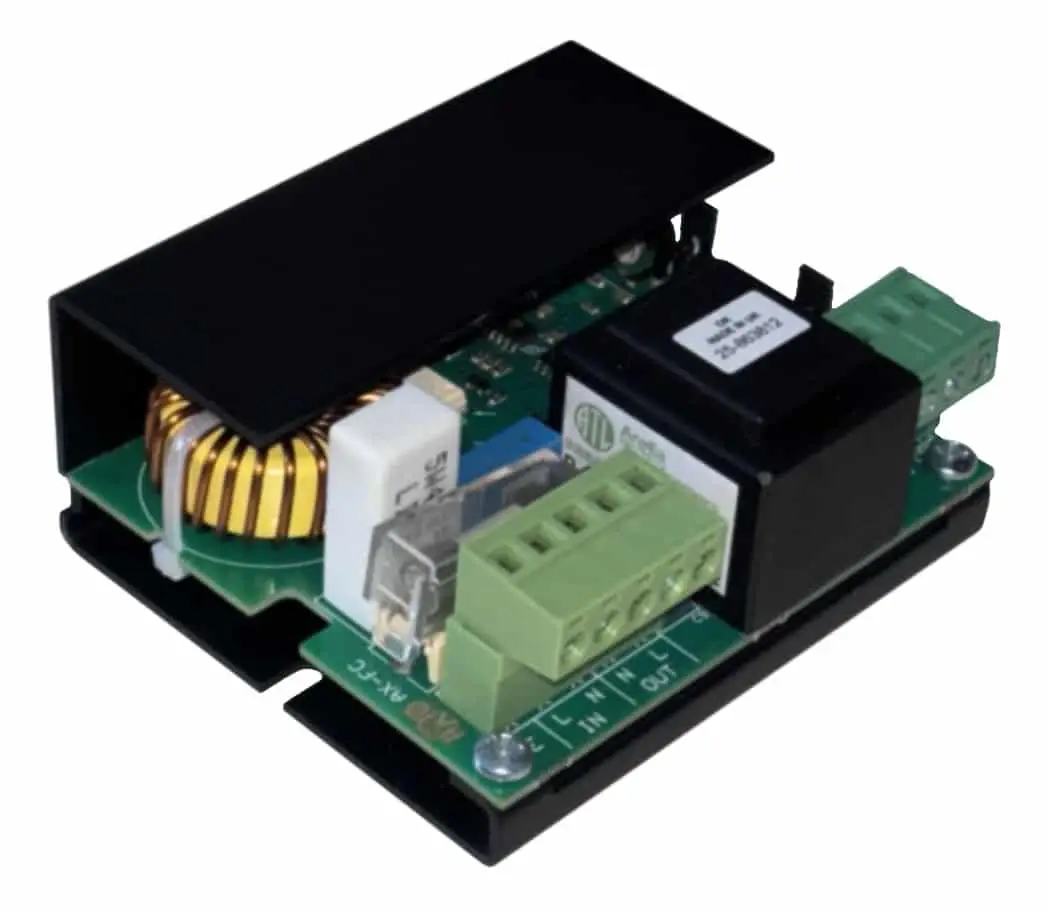

The compact FSC-8 fan speed controller offers stepless speed regulation for single-phase AC motors.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

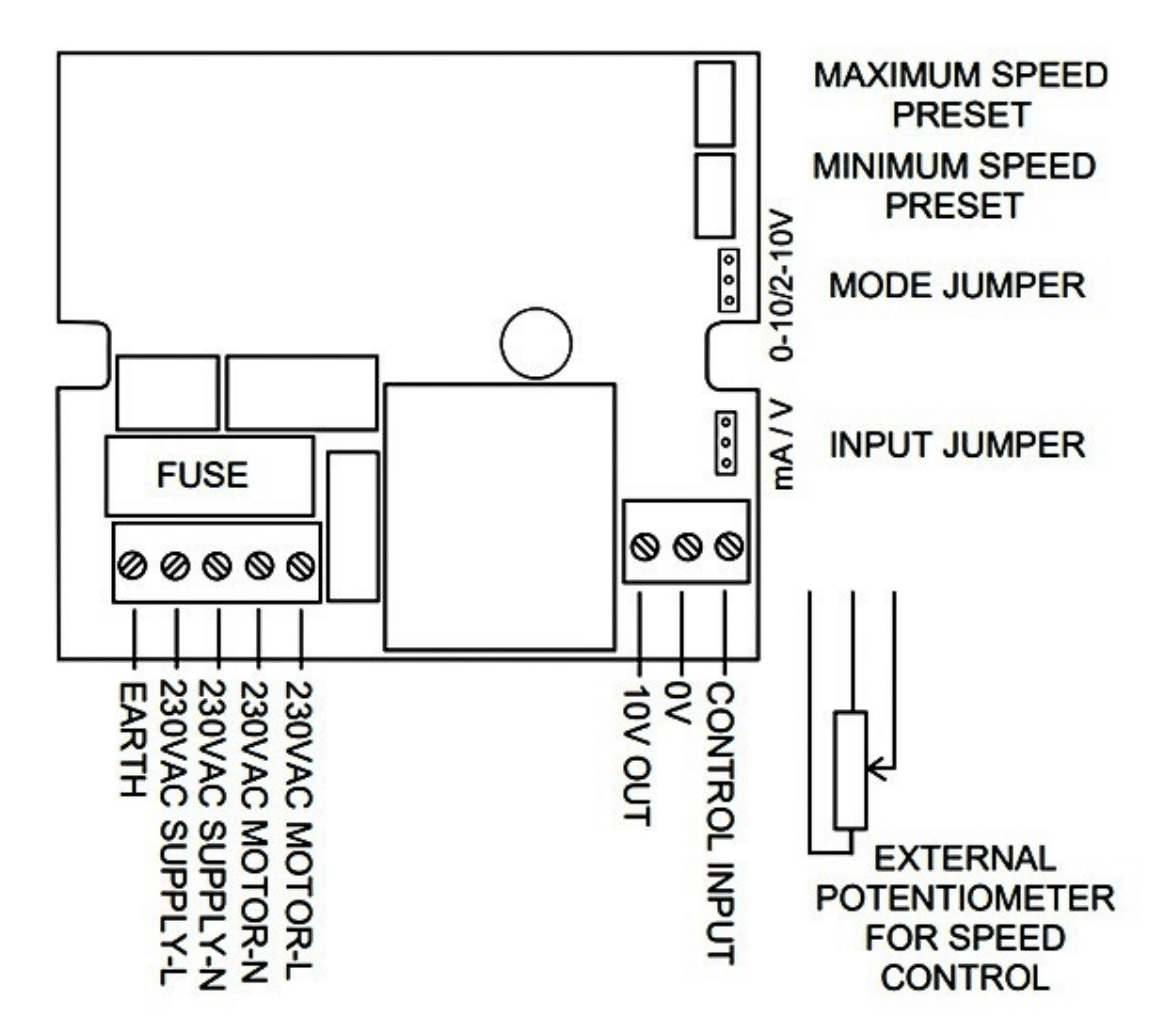

The compact FSC-8 fan speed controller offers stepless speed regulation for single-phase AC motors. The unit provides several voltage- and current-control input options, along with a fan-off function. The unit is designed for panel mounting.
Specification
Supply Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 210Vac to 250Vac 50Hz
Control Signal Voltage:Â Â Â Â Â Â Â Â Â Â 0-10V or 2-10V
Control Signal Current:Â Â Â Â Â Â Â Â Â Â 0-20mA or 4-20mA
0-10V Input Current:Â Â Â Â Â Â Â Â Â Â Â Â Â 1mA maximum
Maximum Output Current:Â Â Â Â Â Â Â 8 Amps
Start Up:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Soft start
Min. Speed Adjustment:Â Â Â Â Â Â Â Â Â Â 0% to 40%
Max. Speed Adjustment:Â Â Â Â Â Â Â Â Â 60% to 100%
Fuse Size:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -4 4 Amps, -8 8 Amps
Terminals:                       Rising clamp for 0.5-2.5mm² cable

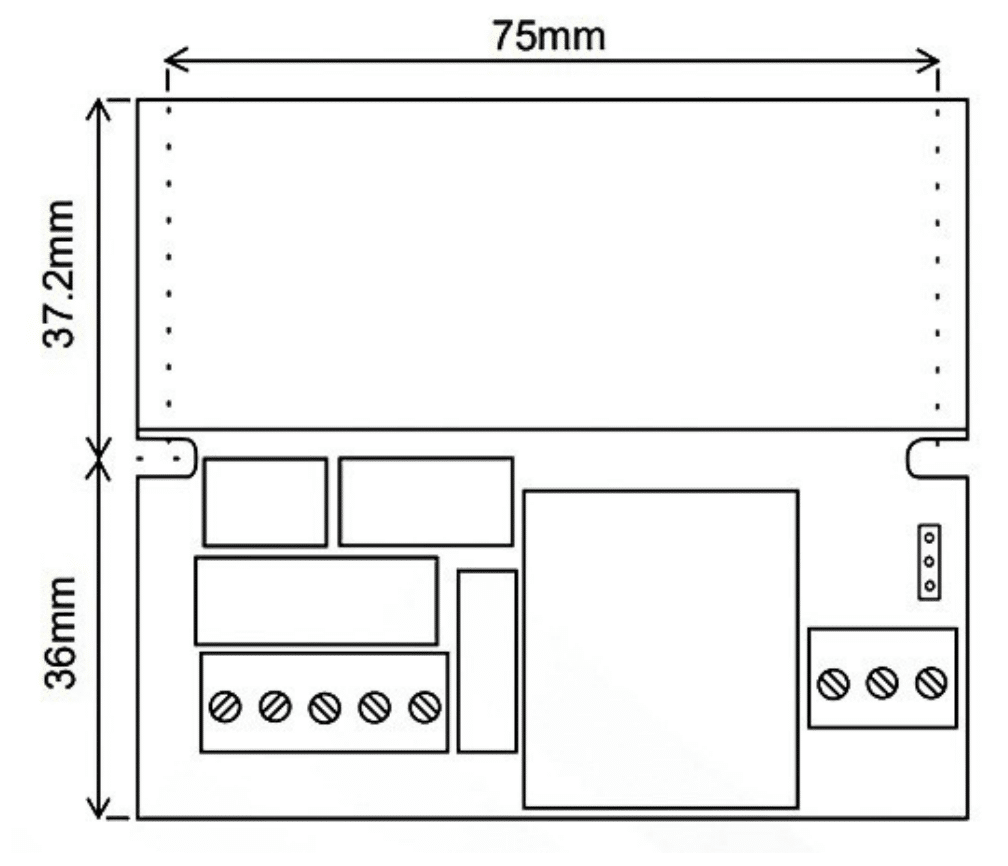

Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 83(W) x 37(H) x 74(D)mm,
Weight:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 220 gms
Ambient Temperature:Â Â Â Â Â Â Â Â Â Â 0ËšC to 40ËšC
Country of Origin:Â Â Â Â Â Â Â Â Â Â Â Â Â Â United Kingdom
PDF Datasheet
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 8.3 × 7.4 × 3.7 cm |
| Amps | 4A, 6A, 8A |
Notes
0-10VDC or 4-20 mA control
