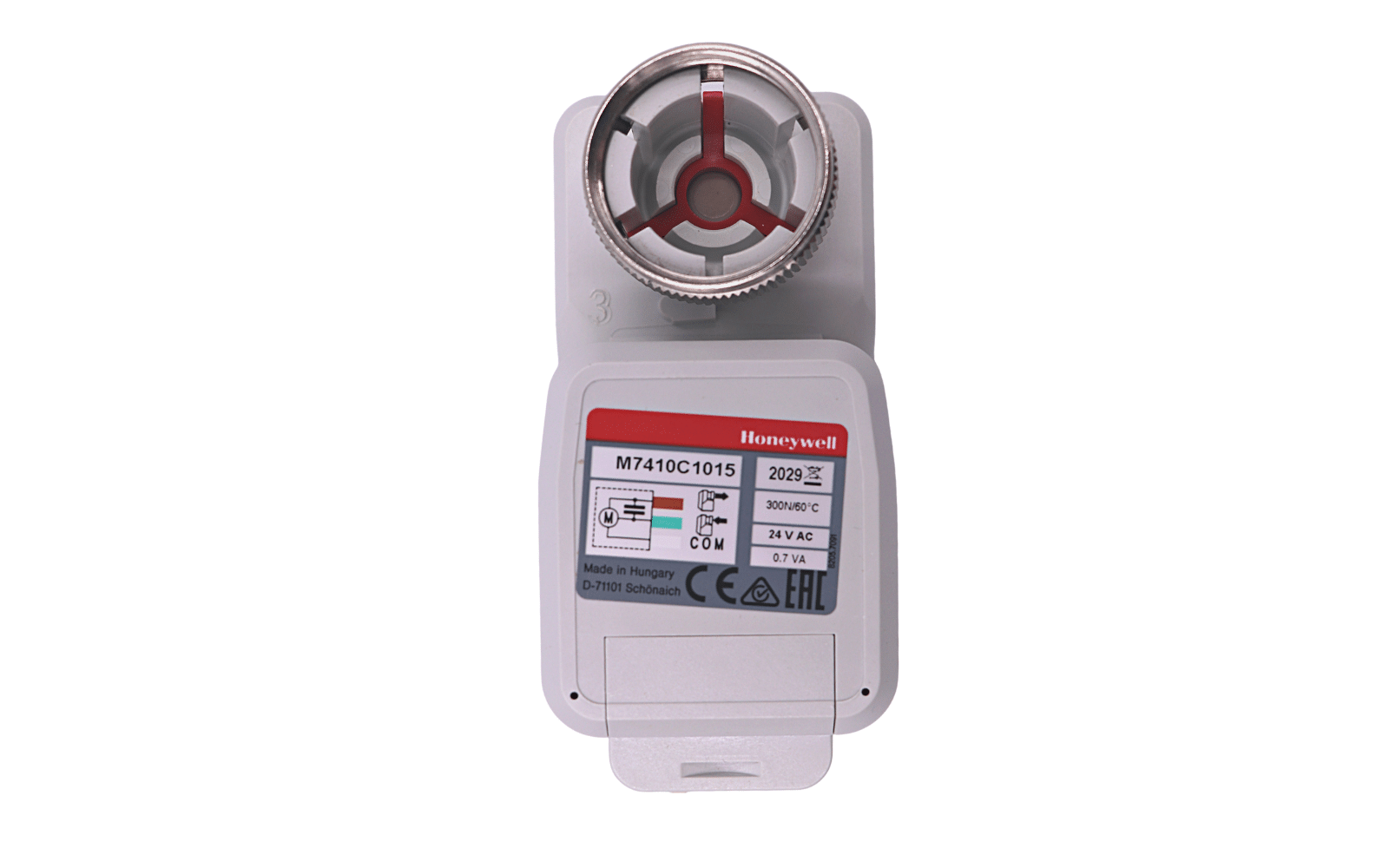

FCU 24VAC Honeywell Linear Actuator M7410C1015
£119.00
Electrothermal Actuators are for use with the VFX range of Fan Coil valves and are used in heating, cooling, and air conditioning systems.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
- Trend Actuator 3-pt for zone control, 6,5 mm 180/300 N, M6410/M7410
- Electrical actuator floating control.
- Protection class: IP43/IP42
- Position indication: with red indicator
- End switch function/capacity: SPDT; capacity 1 A inductive, 5 A resistive
- For M7410 models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable.
- Control input signal: 3-pt
- Stroke: 6.5mm
- Runtime: 150s
- 6,5 mm; 300 N; for valve series: V5825B, V5832B2, V5833A2
- Stem force: 300N
- Supply voltage: 24 Vac
- Manual operation: no
- End switches: no
- Cable length: 1.5m
