Fan Coil Valves, FlowCon
FlowCon Electric Modulating, 0(2)-10V with Feedback Signal
£98.00
FlowCon Electric Modulating, 0(2)-10V with Feedback Signal
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

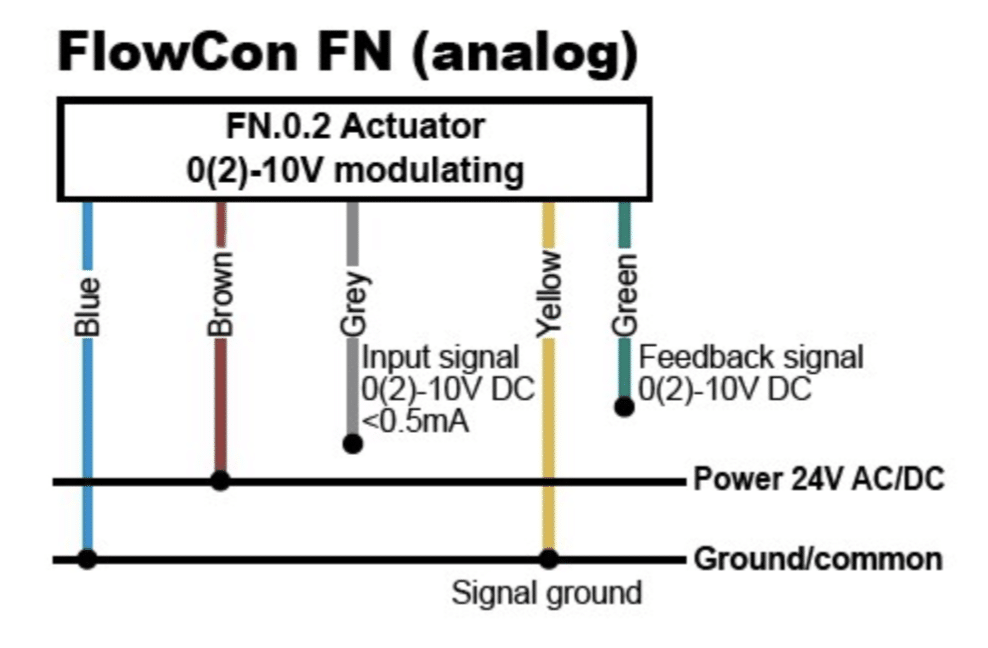

FlowCon FN.0.2 – 24V 0(2)-10V modulating actuator (equivalent to the current FN.0.2 actuator)
FlowCon FN for FlowCon Green
- For FlowCon Green.0, Green.1, Green.1HF, Green.2
- Electrical actuators, 24V
- 0(2)-10V modulating, 3-point floating or 2-position
- Standard with feedback on modulating versions
- Standard with override on modulating versions
- Settable control characteristics (linear control or equal percentage control) on modulating versions
- Settable control direction (NO/NC)
- Optional bus, BACnet or Modbus
- Auto cycle is available on modulating versions
- Position indicator
- IP54, 360°
The Actuator is compatible with the following inserts in the Green
• Green.EQ – 3.4mm stroke – closing time 75 sec
• Green.0 – 3.4 mm stroke – closing time 75 sec
• Green.1 – 3.4 mm stroke – closing time 75 sec
• Green.1HF – 3.4 mm stroke – closing time 75 sec
• Green.2 – 5.2 mm stroke – closing time 114.4 sec
FlowCon_Actuator_Selection_Matrix
Additional information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 8.65 × 4.35 × 8 cm |
