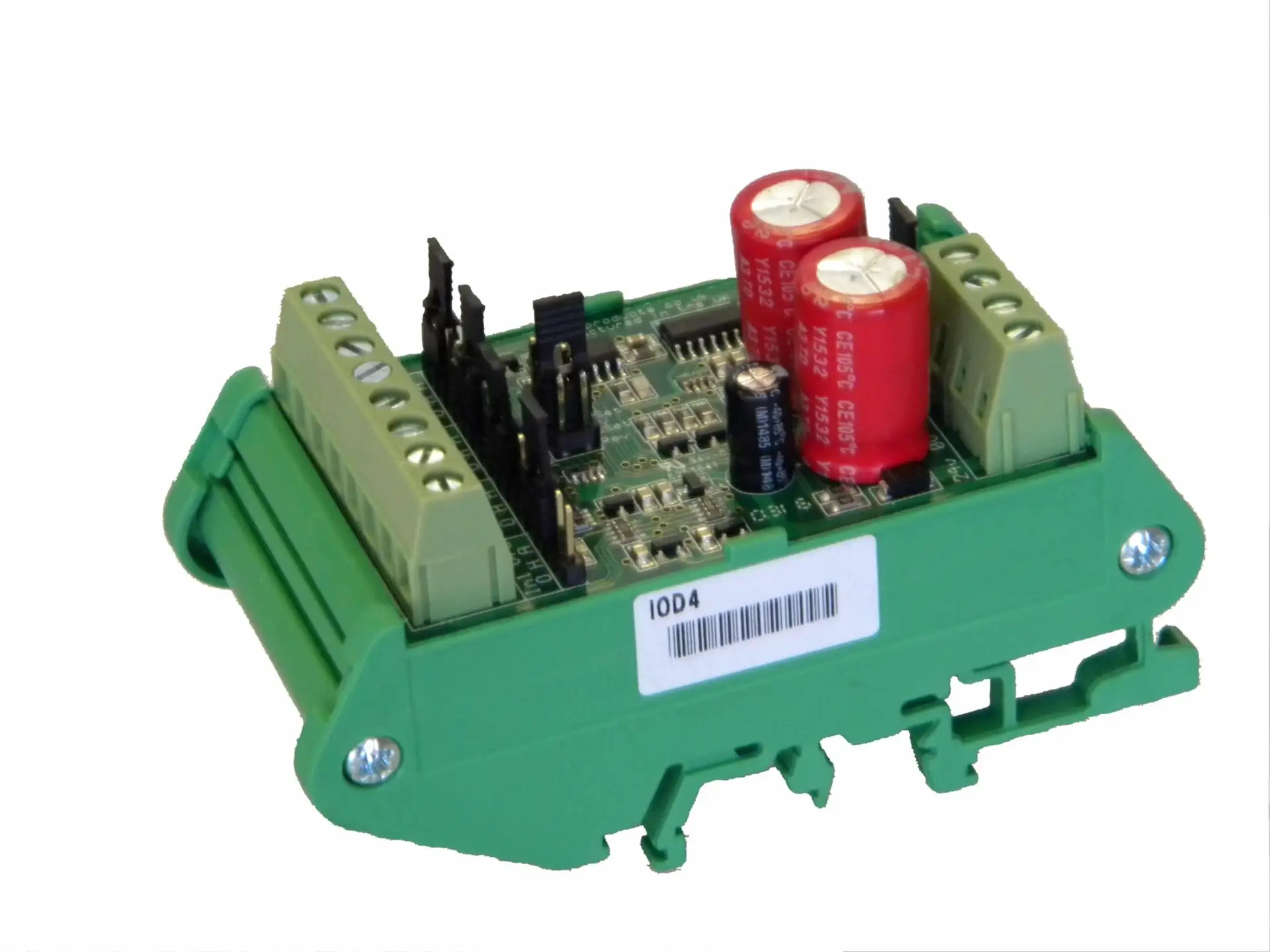

Four Channel Digital Input Multiplexer – VFC input – IOD4
£40.95

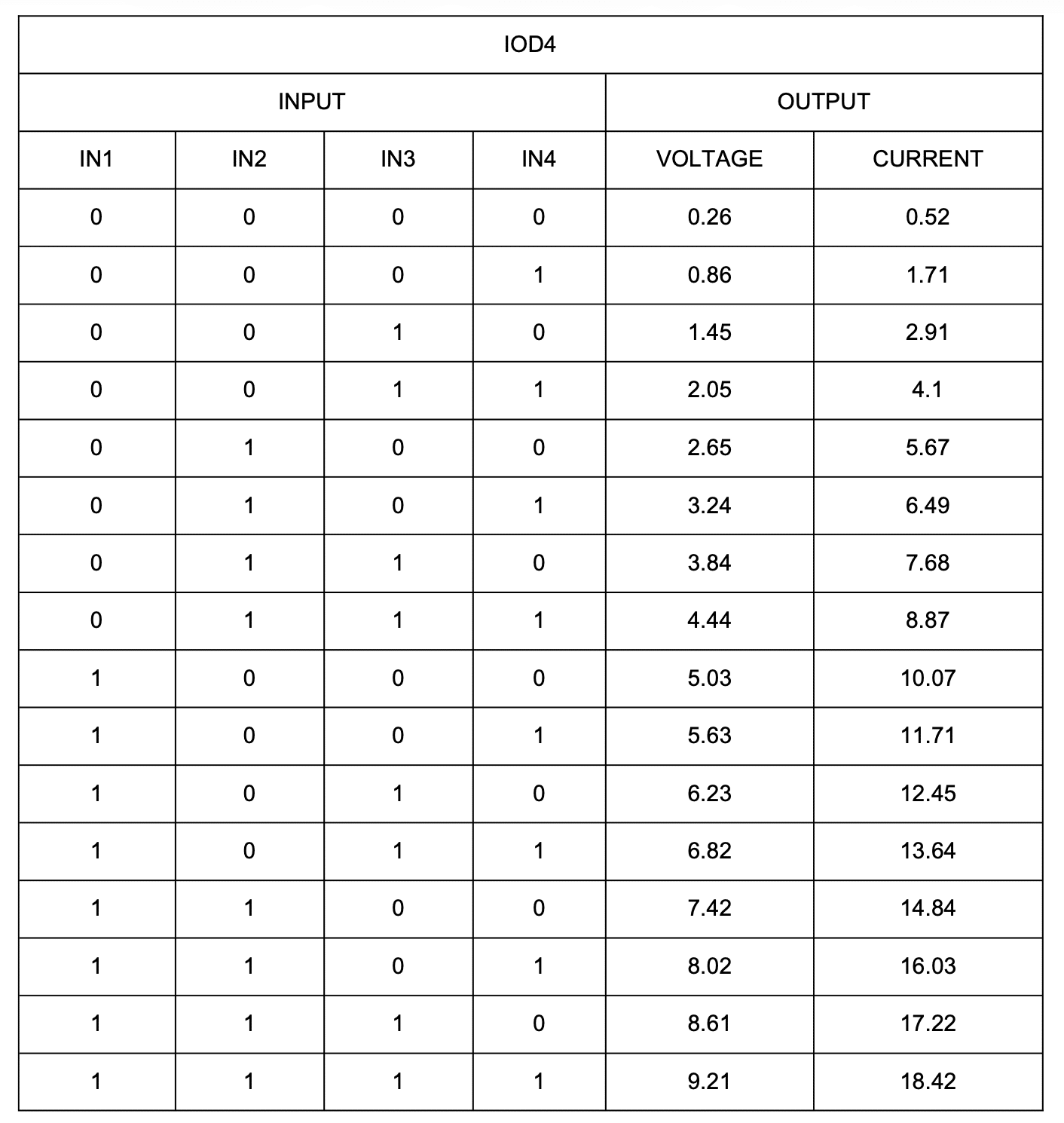

The Digital Input Expander (4 DIX) allows 4 volt-free inputs to be monitored by a single analogue input channel. The resultant analogue value can be decoded by the A-to-D function module in a BMS controller to produce internal digital status bits for alarm monitoring or other status-input applications.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The Digital Input Expander (4 DIX) allows 4 volt-free inputs to be monitored by a single analogue input channel. The resultant analogue value can be decoded by the A-to-D function module in a BMS controller to produce internal digital status bits for alarm monitoring or other status-input applications.
Specification
Supply Voltage: 24Vdc or ac ± 15%
Supply Current: 50mA max. (I mode) 30mA max. (V mode)
Input Channels: 4-volt free contact switch 24Vdc
Input Threshold: Upper 17.5V max (ON) level, Lower 7.5V min (OFF) level
Distance: Max. distance of IOD4 from controller 25m (V mode), 1000m (I mode).

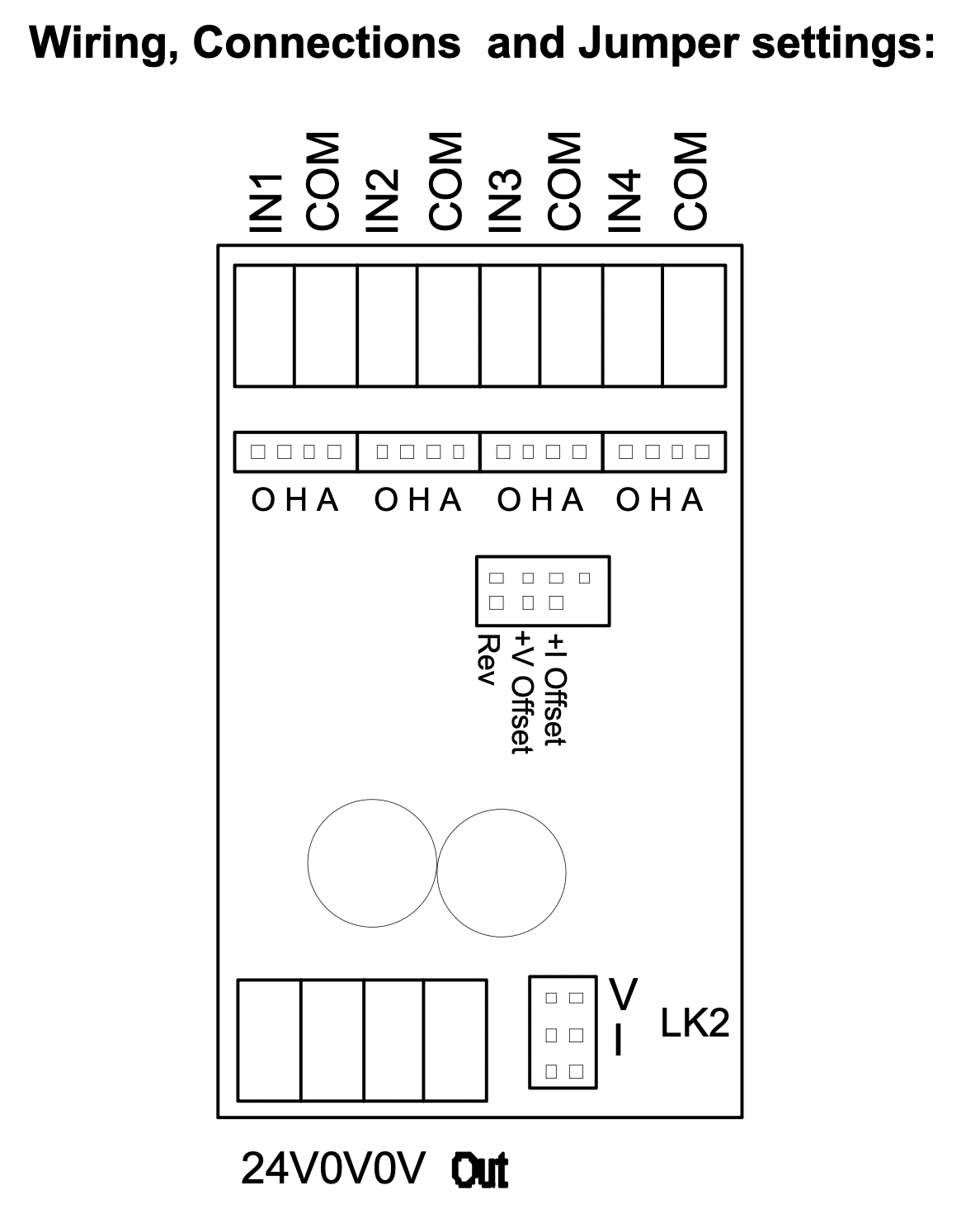

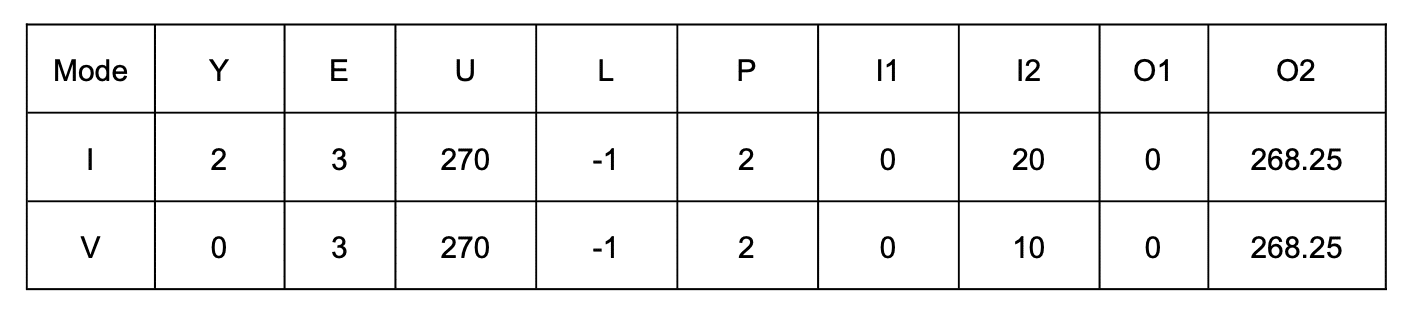

Output: Mode selectable by link header current/voltage (I/V).
I: 0 to 20mA, max. resistance of load 250Ω.
V: 0 to 10Vdc, max. current 1mA.
LED: Single LED per input channel, LED on indicates contact closed.
Ambient limits: Storage: -10℃ (14 °F) to +70℃(158 °F) Operating: -10℃ to +50℃ Humidity: 0 to 90%RH non- condensing
Additional information
| Weight | 0.85 kg |
|---|---|
| Dimensions | 6 × 8 × 5 cm |
| Amps |
4A, 6A, 8A |
