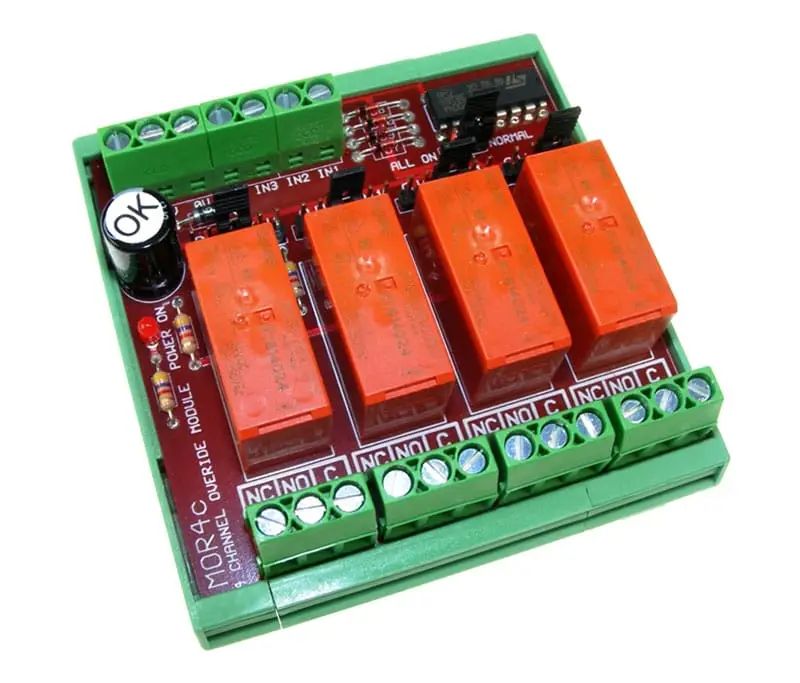

Four Channel Override Relay Module – IORM04

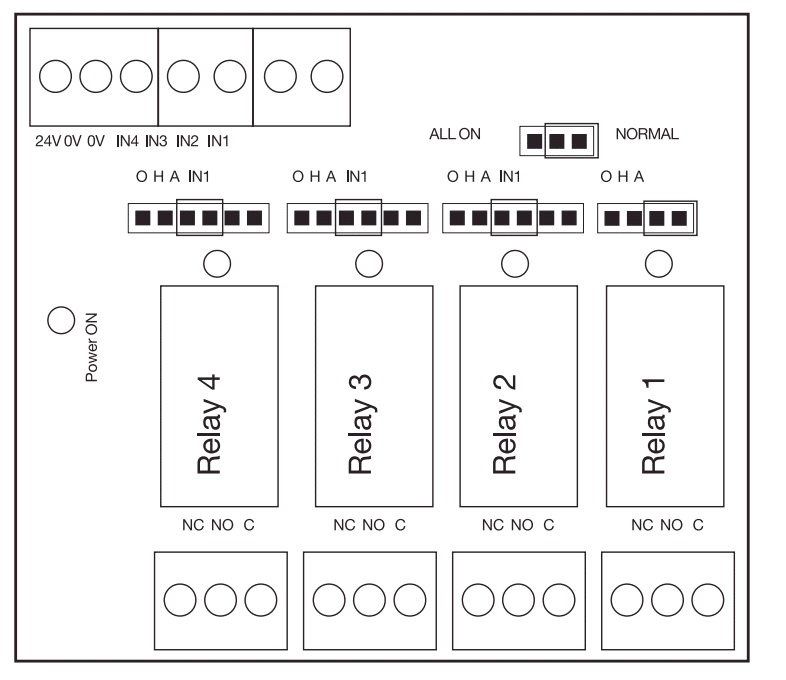

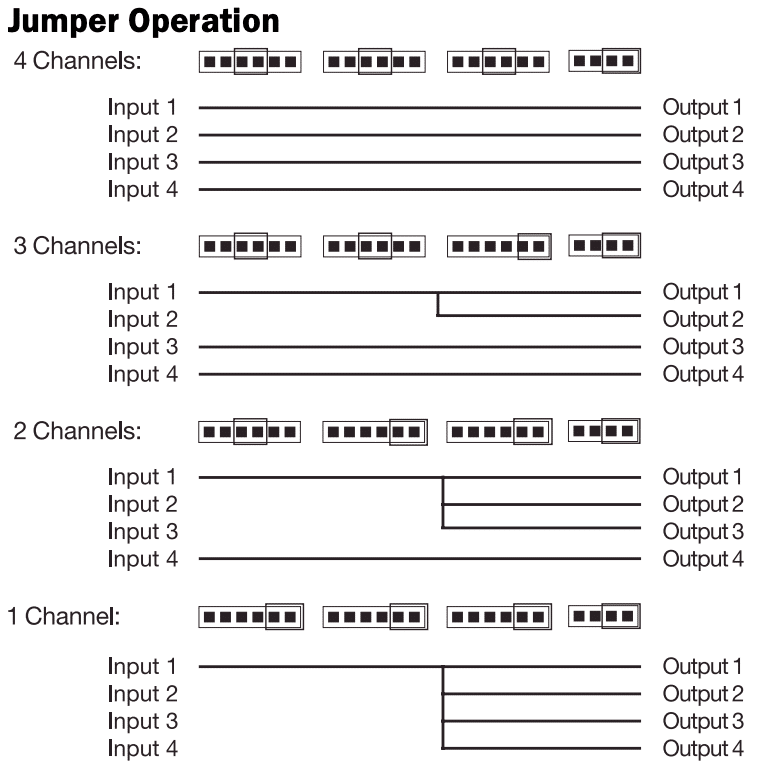

The IOMR4 is designed for applications that require an independent manual override of digital output channels from BMS Controllers. The outputs can be switched without a controller present, making the IOMR4 useful for temporary control or commissioning. Link selection enables up to 4 outputs to be switched from Input 1. High-Quality Rising Clamp Terminals are used for all connections. The IOMR4 is powered by 24V ac or dc and features an LED indication of Power ON and an LED indication for each energised relay. The IOMR4 is designed to mount on the TS35 DIN Rail section.

Specification

Input Signal:                         4 x 0-10Vdc, (2mA typical)
Must Operate:                       5Vdc
Output Contacts:                  4 x SPCO
Contact Rating:                    12A/250Vac (res.)
Power Supply:                      24V ac or dc +/-10%
Manual Override:                  ON/OFF/AUTO (Link Selectable)
Terminals:                              Rising clamp for 0.5-2.5mm² cable.
LED Indicators:                     ON when relay energised
Ambient Range:                    0 to 50˚C
Dimensions:                          78 x 92.5 x 48mm (approx.)
