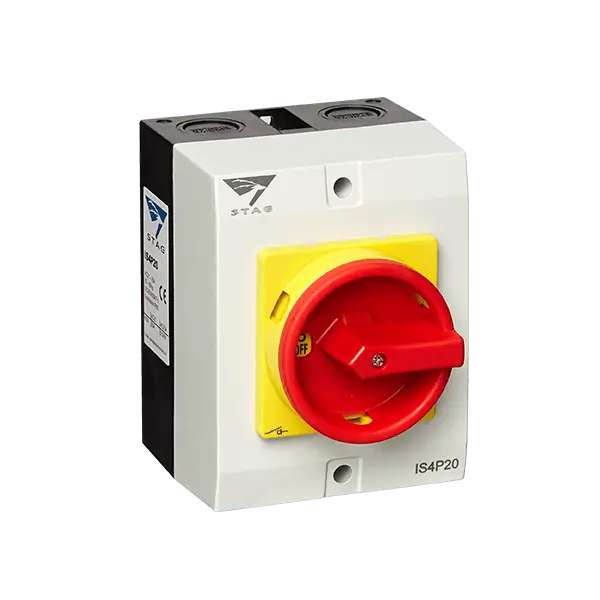

Four Pole Stag Isolator, Enclosed IP65 – 20Amp
£15.00
Four Pole Stag Isolator, Enclosed IP65 – 20Amp
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
This 4 Pole Range of Stag Isolators is available from 20A to 150A. They have an IP65 protection rating and are compliant with EN 60947-3. They are flame-retardant, and we offer three sizes of enclosures. Other features include multiple gland knockouts, lockable rotary handle, external mounting points, additional earth connections, and an interlocked enclosure lid.
Specification
Poles: 4
Rated Operational Current: 20A
Rated Power of 3Ph Motor at 415V: 5.5kW
Rated Voltage: 415V
Frequency: 50/60Hz
Rated Insulation Voltage Uᵢ: 690V
Max. Cable Size (Solid/Stranded): 10mm²
Protection Degree: IP65
Tightening Torque: 2Nm
Mechanical Life: 10,000
Additional information
| Weight | 0.52 kg |
|---|
