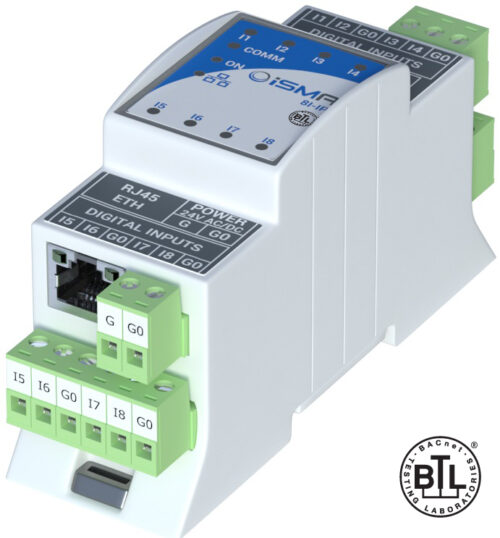

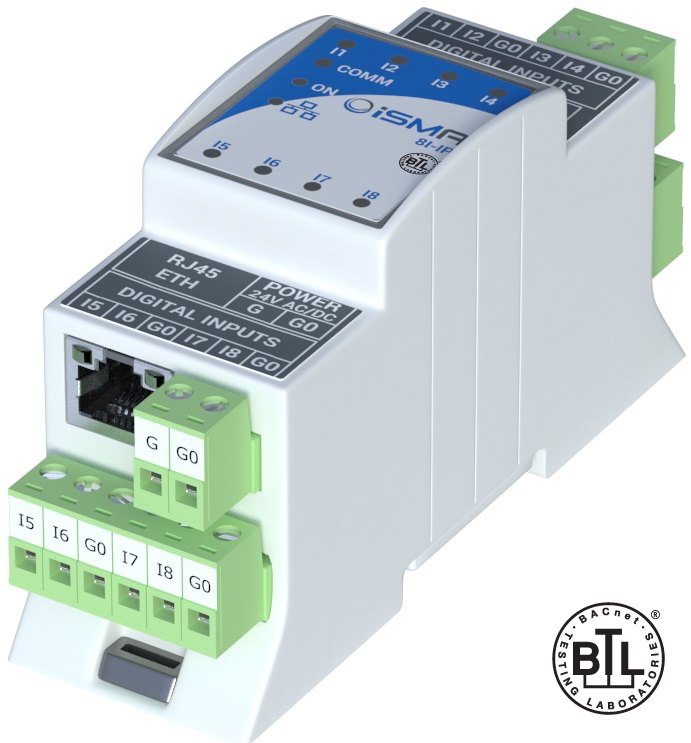

iSMA-B-8I-IP

MINI modules have been designed to complement the MIX series. Depending on the project needs, one of 7 different MINIs can be chosen; all inputs and outputs are unified among our products. One feature that makes these two product groups different is the hand-operated switches; in some applications, they are required. Moreover, all I/O modules have BTL, CE, and UL certificates.

Like the MIX modules IP (1x Ethernet), MINI are factory-equipped with the most popular open communication protocols: Modbus (TCP/IP) and BACnet (IP), which are selected using DIP switches. Rotary switches are used to set the module address, facilitating and accelerating commissioning. Built-in mini USB allows for the initial configuration of the unit without an external power supply.

MINI I/O Modules with Ethernet have built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.

iSMA-B-8I-IP is one of the easiest to set up and most versatile IO modules. Compatible with almost any BMS that works on either Bacnet or Modbus. It has 8 Digital Inputs and works on IP connection.

This module is fully compatible with any Modbus or Bacnet system, including the following: Tridium Jace3, Jace6, Jace8000Compatible, Trend IQ3, IQ4 Bacnet IPCompatible, Siemens PX range, Cylon Bacnet controllers, Schneider Electric StruxureWare Bacnet controllers, OSS NeOSS building management controller, Priva Blue ID, Distech EC Bos, DELL EDGE GATEWAY 5000, Compatible with any Honeywell Centraline Hawk, Delta Controls Compatible IO Modules

Inputs & Outputs:
8x Digital Inputs (8DI)

• Dry contact inputs
• Fast pulse counter up to 100Hz

Platform

• Cortex-M3

Communication

• 1 x Fast Ethernet
• Interface RS-485 half-duplex
• Up to 99 devices on the bus
• Protocols: MODBUS or BACnet
• Baud rate: 2400 to 115200 bps

Power supply

• 24V AC/DC

Housing

• Dimension: 35x110x62 mm.
• Construction: plastic, self-extinguishing (PC/ABS)
• DIN rail mounting (DIN EN 50022 norm)
• Cooling: internal air circulation

Environments

• Operating temperature: -10C to 50C
• Storage temperature: -40C to 85C
• Relative humidity: 5 to 95%, no condensation
• Ingress Protection Rating: IP40 for indoor installation
