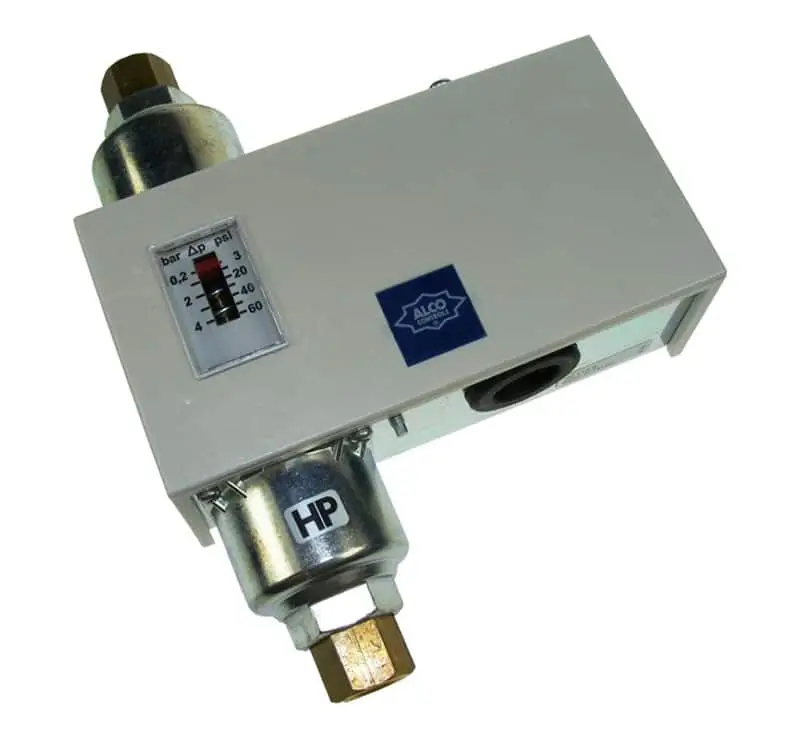

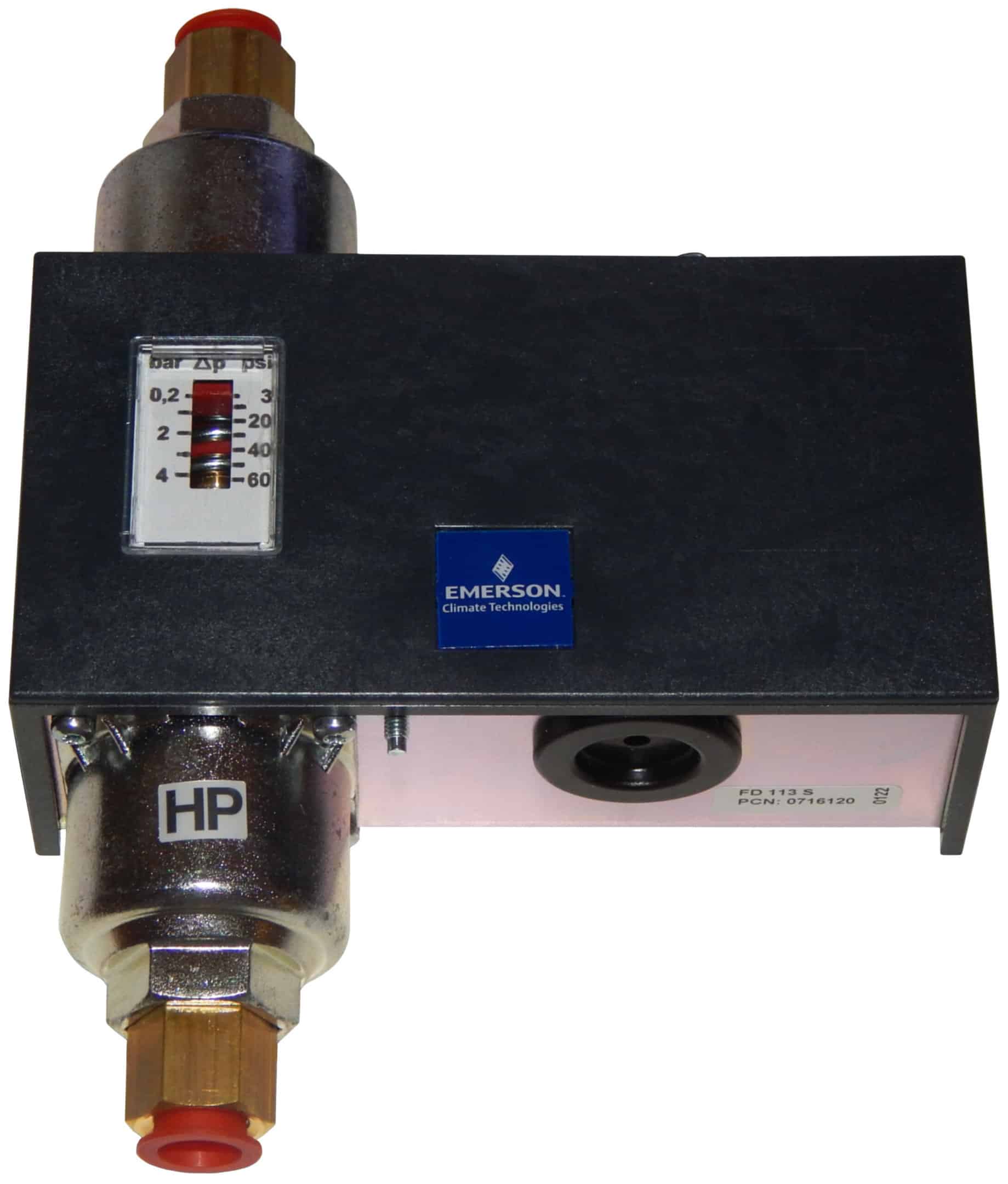

Liquid Differential Pressure Switch 0.3-4.5 bar – FD113
£90.80
The FD113 is a differential pressure switch that is used for monitoring flow status across pumps, chillers, etc. The unit has an adjustable setpoint with scale and ¼” BSP female pipe connections.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The FD113 is a differential pressure switch used to monitor flow status across pumps, chillers, etc. The unit has an adjustable setpoint with scale and ¼” BSP female pipe connections.
Specification
Range: 0.3…4.5 bar
Switching Differential: 0.2 bar
Pipe Connections: ¼” BSP female
Ambient Temperature: -20…+70°C
Liquid Temperature: 0 to 110°C
Switch Rating: 5(3)A @ 240Vac
Protection: IP30
Dimensions: 128 x 175 x 48mm
Additional information
| Weight | 0.79 kg |
|---|---|
| Dimensions | 16 × 11 × 6 cm |
| Pressure |
20-300Pa, 50-500Pa, 200-1000Pa |
