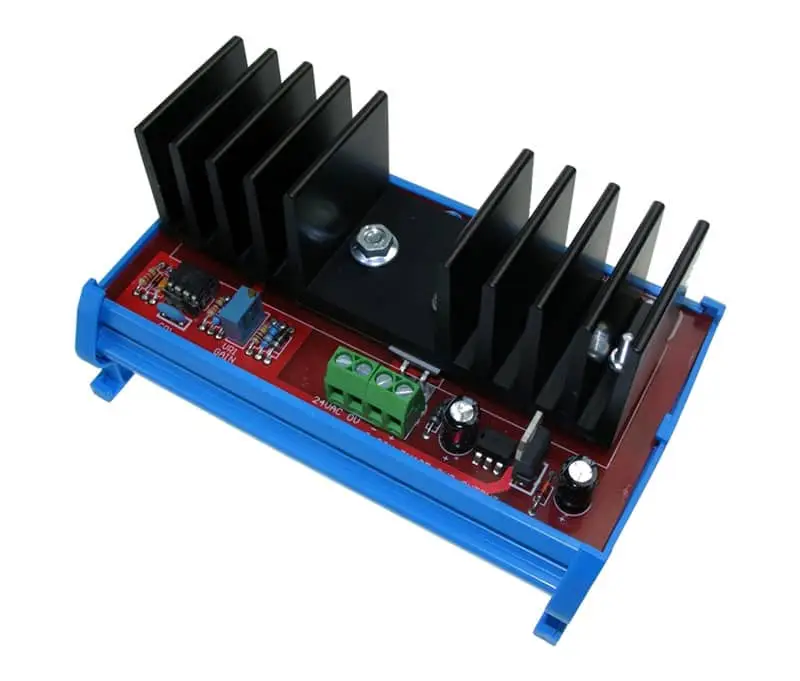

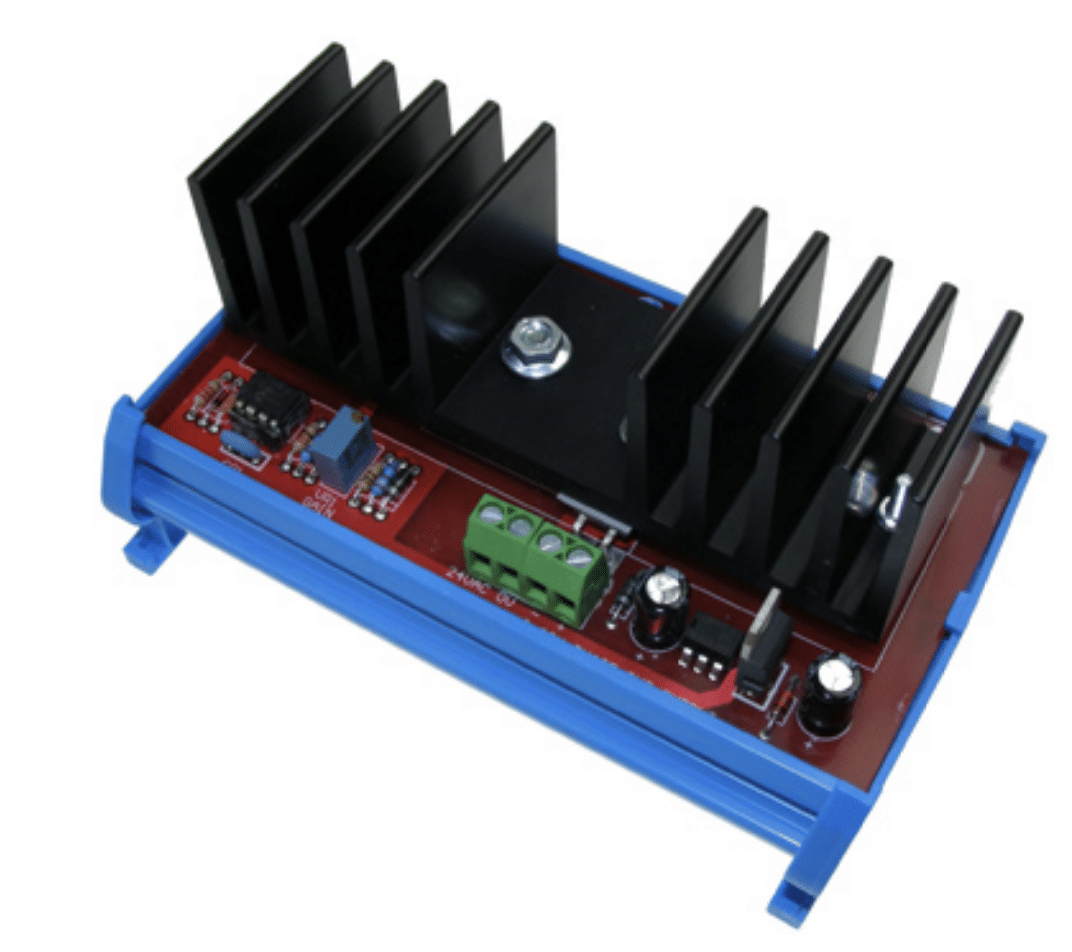

Phase Cut Module 120VA – IOPC1-120
£175.00
The IOPC1-120 is designed to convert a single 0-10Vdc input signal into a 0-20V 50Hz phase-cut output at 120VA to drive larger valve and damper actuators. The IOPC1-120 features an optoisolator powered by 24Vac (with a common connection to the input signal) and high-quality rising-clamp screw terminals.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The IOPC1-120 is designed to convert a single 0-10Vdc input signal into a 0-20V 50Hz phase-cut output at 120VA to drive larger valve and damper actuators. The IOPC1-120 features an optoisolator powered by 24Vac (with a common connection to the input signal) and high-quality rising-clamp screw terminals.
Specification

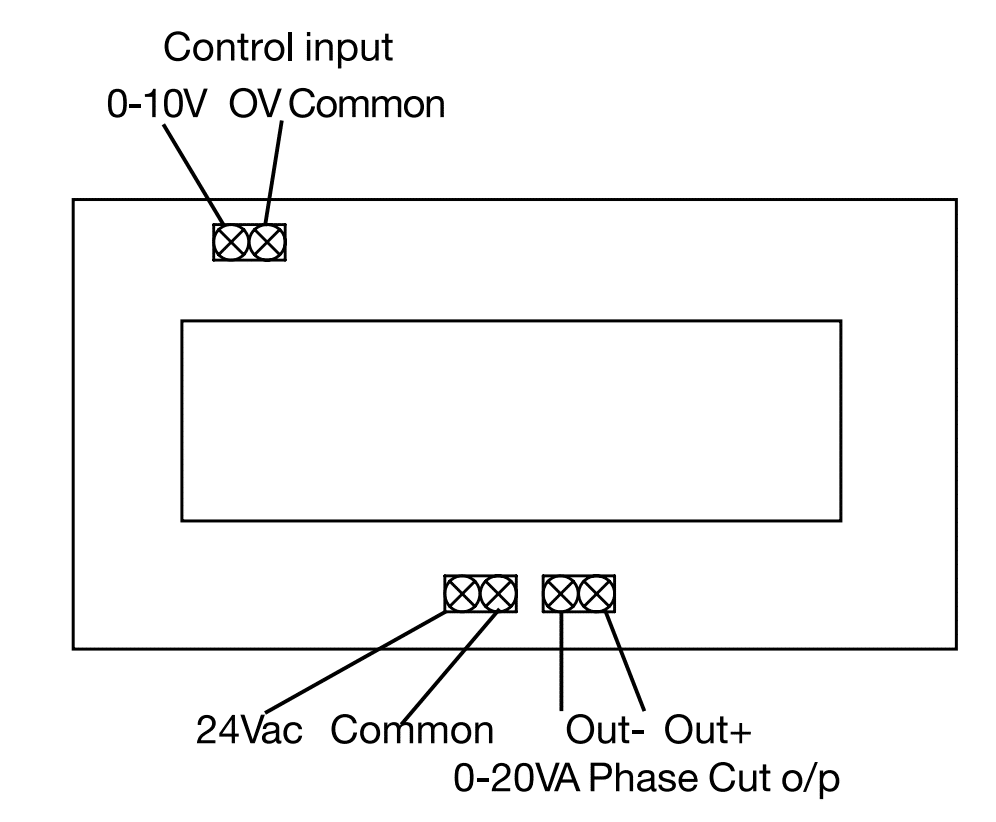

Input Signal: 0 – 10Vdc (2mA)
Output Signal: 0 – 20V full wave rectified 50Hz phase cut- 120VA.
Power Supply: 24Vac (Common to 0-10Vdc input).
Terminals: Rising clamp for 0.5-2.5mm² cable.
LED Indicators: ON when Power is on
Ambient Temp.: 0 to 50˚C
Dimensions: 139 x 92.5 x 78mm (approx.)
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps |
4A, 6A, 8A |
