Description

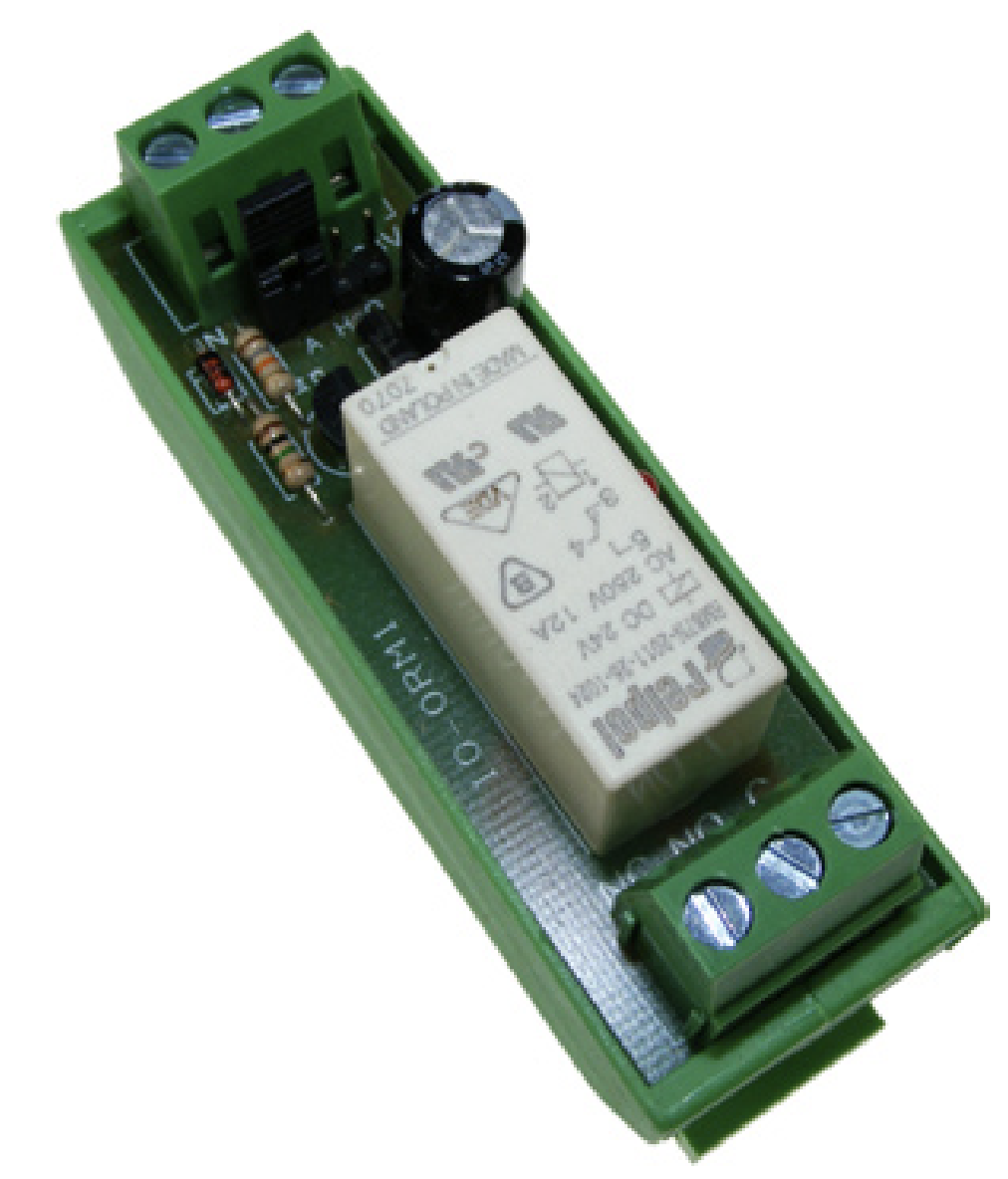

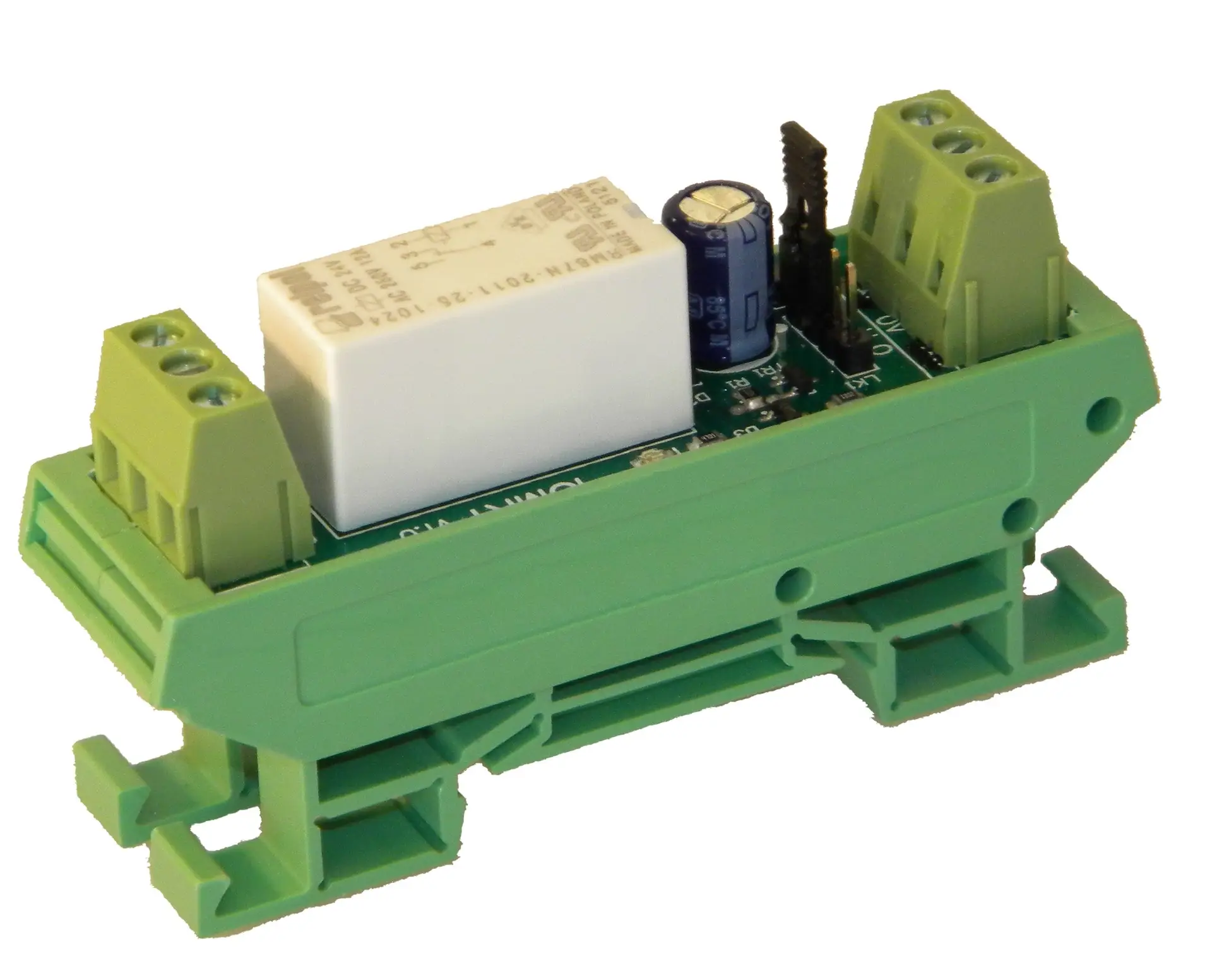

The IOMR1 is designed to provide a manual override of the output from a BMS Controller (or similar) and is particularly useful for commissioning or temporary control applications.
The IOMR1 can also serve as an alternative to the IO-RM1-12DC relay module, with the added advantage of ON/OFF/AUTO links.
The unit has a fixed switchpoint at 6V.
Specification
Supply Voltage: 24V ac or dc
Input Signal: 0/10Vdc
Switchpoint: 6Vdc
Output Contacts: 1 x SPCO
Rating: 12A @ 230Vac
LED Indication: ON when the relay is energised
Ambient: 0°C to 40°C/5-90% RH
Storage: 0/+50°C
Terminals: Rising clamp 0.5-2.5mm² cable.
Dimensions: 76 x 23 x 45mm approx.
Country of Origin: United Kingdom
