Solid Core and Split Core Current Sensors, 0-10, 0-20, 0-50, 0–100, 0-150, 0-200 A, output 0-10VDC or 4-20-mA

The CS series current sensors monitor the current flowing to electrical equipment or buildings.
The magnitude of this current is then converted into a linear  4-20mA or 0 to 10 VDC output signal, which can be monitored by a Building Management System.
The units have jumper-selectable input ranges.
These current sensors should be used in load-trending (current-monitoring) type applications and are fast-acting, accurate, reliable, and extremely easy to install.

Specification

Power Supply:                               0…10Vdc output – self-powered /  4…20mA output – nominal 24Vdc supply
Selectable Ranges:                      Low Range – 0…10/20/50A / High Range – 0…100/150/200A
Frequency:                                    40…100Hz (VSD Version 10…400Hz)
Insulation Class:                           600Vac RMS
Accuracy:                                       ± 1%
Response Time:                            0.5 S
Enclosure Size:                             Solid core – 61 x 90 x 25mm / Split core – 63 x 100 x 32mm
Enclosure Material:                       UL 94V – 0 flammability rated ABS
Conductor Hole Size:                    Solid core – 19mm diameter / Split core – 22.6 x 22.6mm
Operating Temperature:               –30˚C to +70˚C
Certification: CE, UL and RoHs

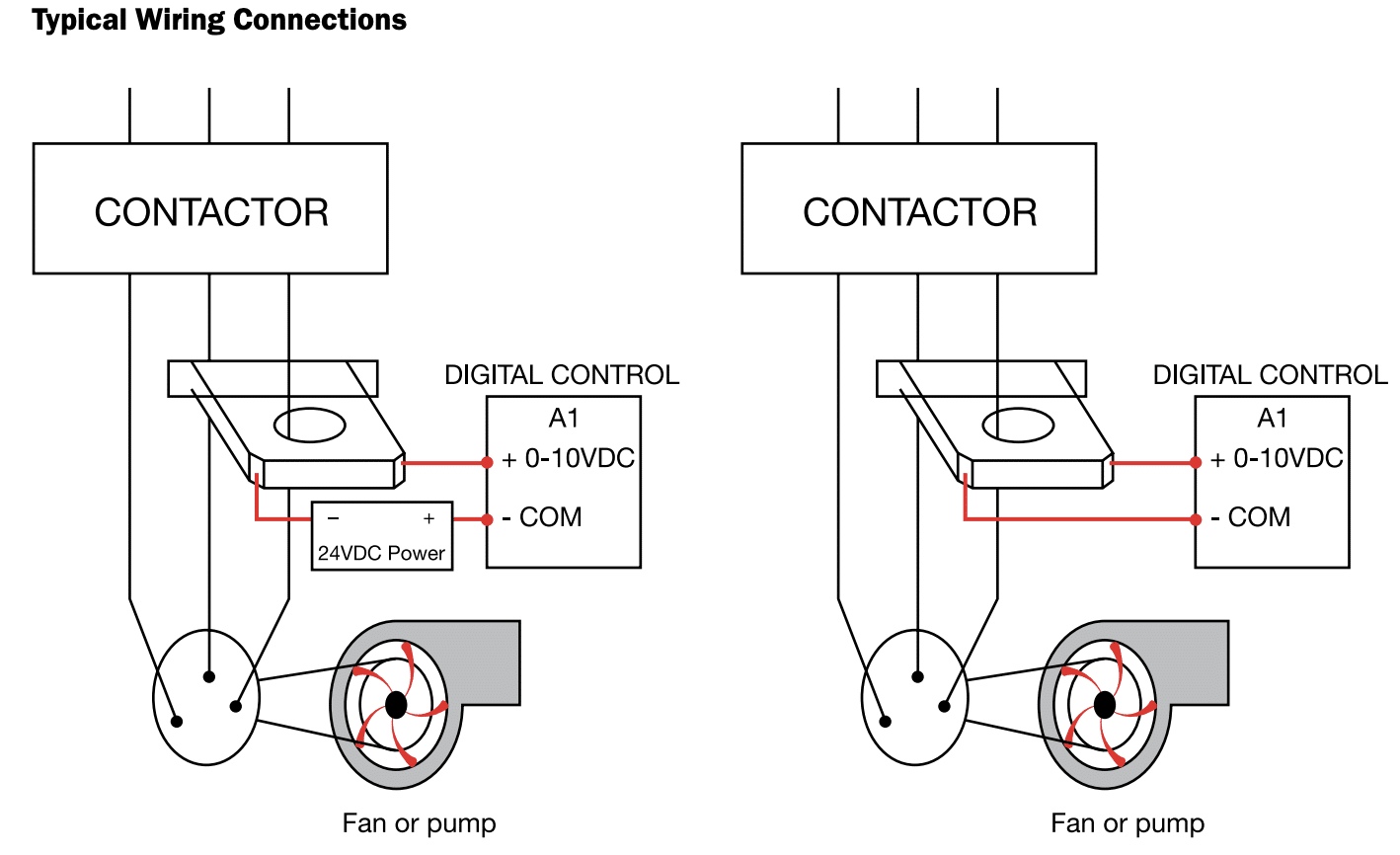

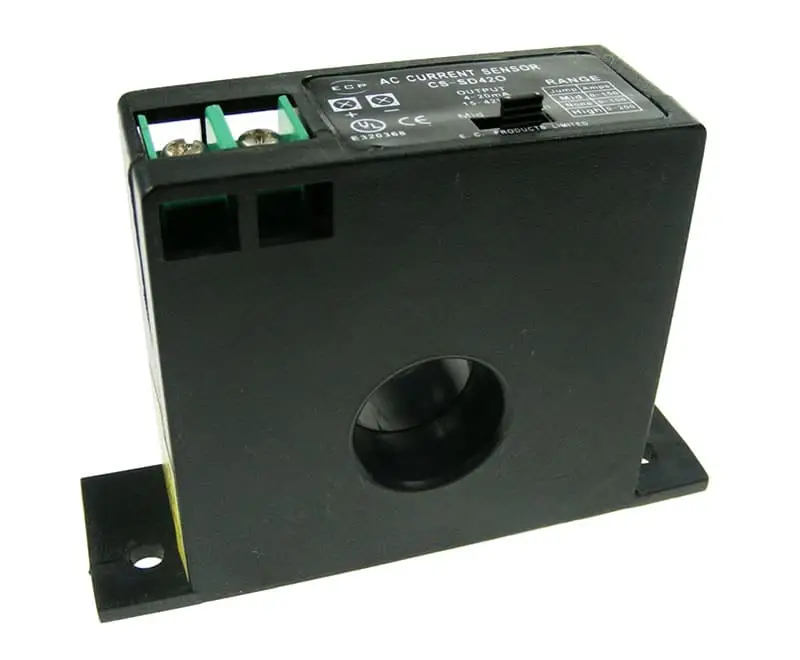

cs-sd10
