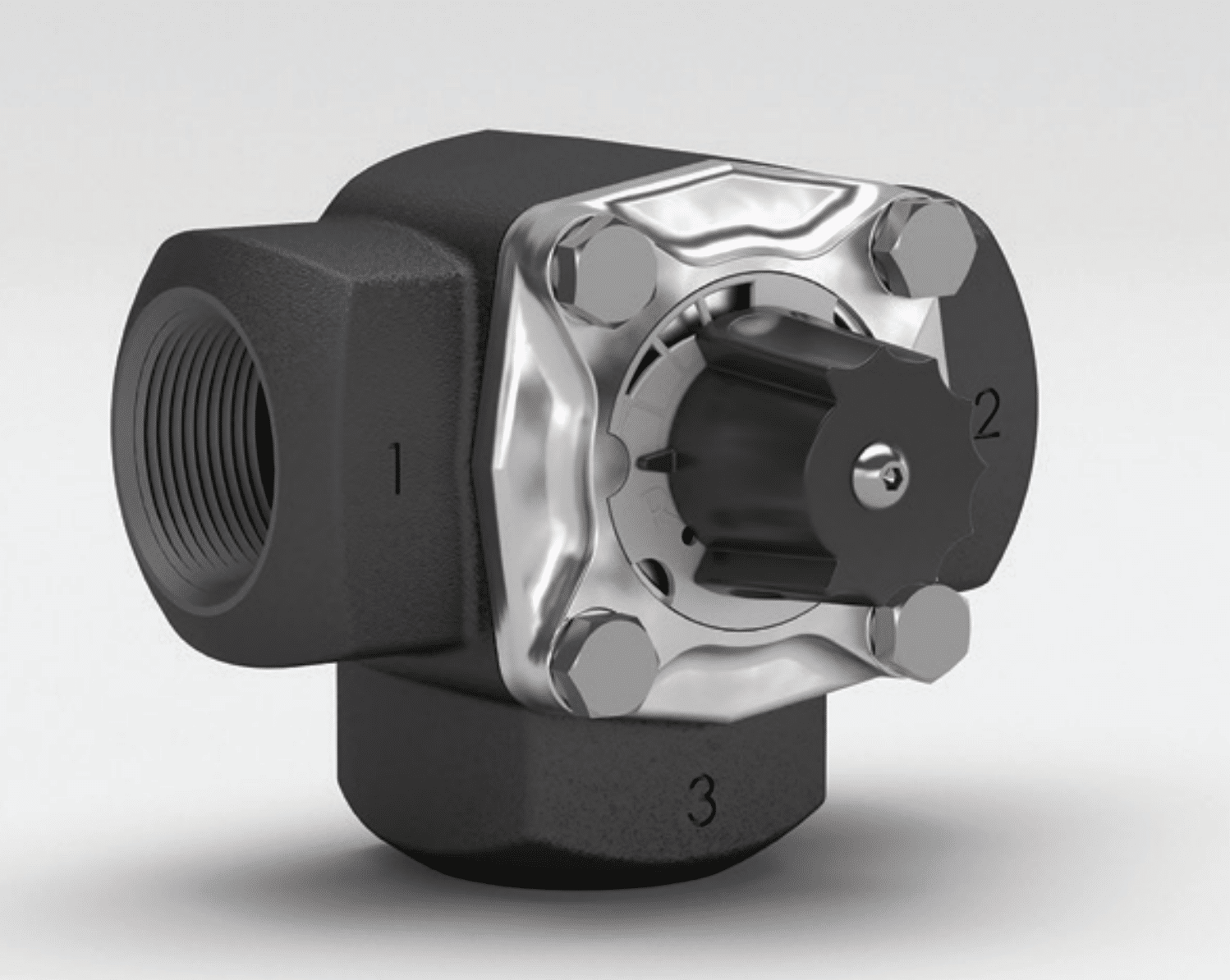

Termomix 20mm 3P Rotary Shoe Valve, Kv 13
£78.00 Exc. VAT
TERMOMIX valves are high-performance mixing and diverting valves designed for hydronic heating systems, boilers, and air heating/cooling applications.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
TERMOMIX valves are high-performance mixing and diverting valves designed for hydronic heating systems, boilers, and air heating/cooling applications.
TERMOMIX valves are cast iron valves available in 3-way and 4-way configurations, designed to mix or divert fluid flows in heating and cooling systems. They suit control of both supply and return lines and can be installed in any position. Their low torque makes them ideal for motorisation, allowing integration with valve actuators for automated temperature control
FEATURES
- Rotary shoe valve, used with 3-point and modulating actuators
- Internally threaded, cast iron body
- Suitable for medium temperatures up to 110°C
- Suitable for mixing and diverting applications
- Use with Gruner actuators and ET3 linkage
DATASHEET GRUNER 227-230-10 Actuator
DATASHEET GRUNER 227-230-10-S1 Actuator
DATASHEET GRUNER 227C-024-10 Actuator
DATASHEET GRUNER 227-024-10-S1 Actuator
| Part Number | Voltage (V) | Aux Switch |
|---|---|---|
| 227-024-10 | 24 | NO |
| 227-024-10-S1 | 24 | YES |
| 227-230-10 | 230 | NO |
| 227-230-10-S1 | 230 | YES |
| 227C-024-10 | 24 0-10v | NO |
Additional information
| Weight | 1 kg |
|---|
