Tri-Rated Cable
Price range: £28.00 through £130.00
Tri-Rated Cable – High temperature, flame-retardant cable designed for use in switch control, relay and instrumentation panels.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
High temperature, flame-retardant cable designed for use in switch control, relay and instrumentation panels.

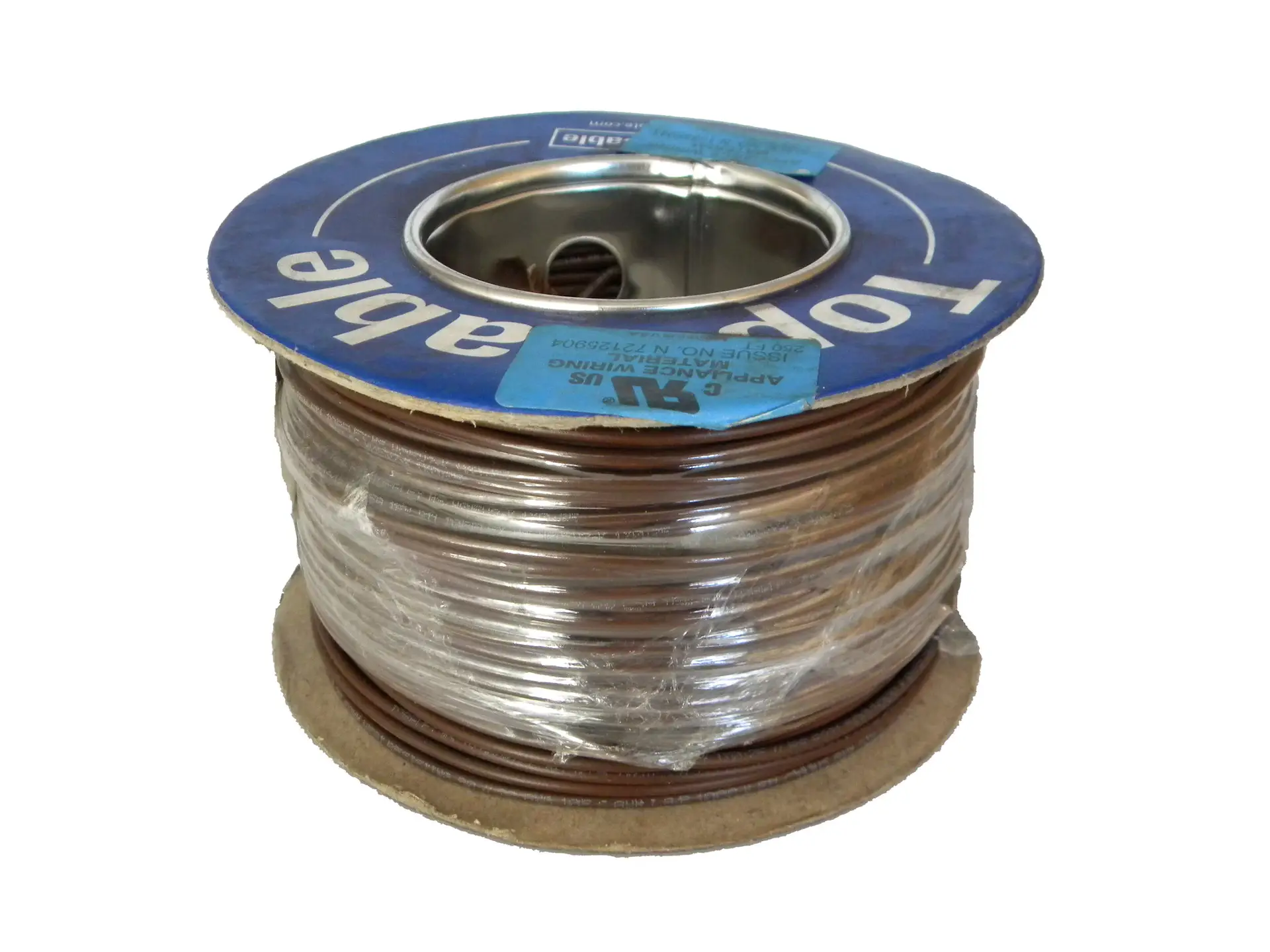

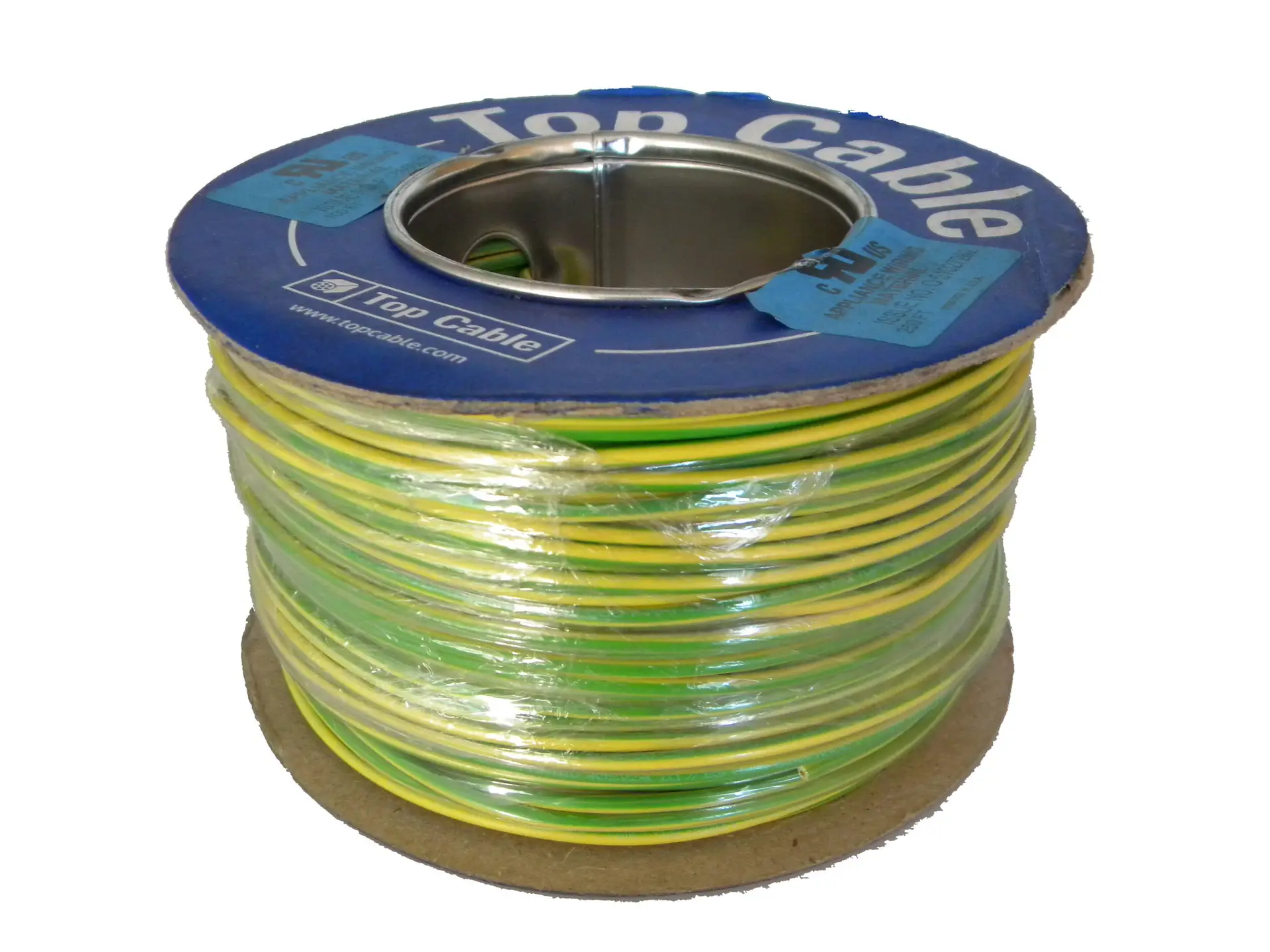

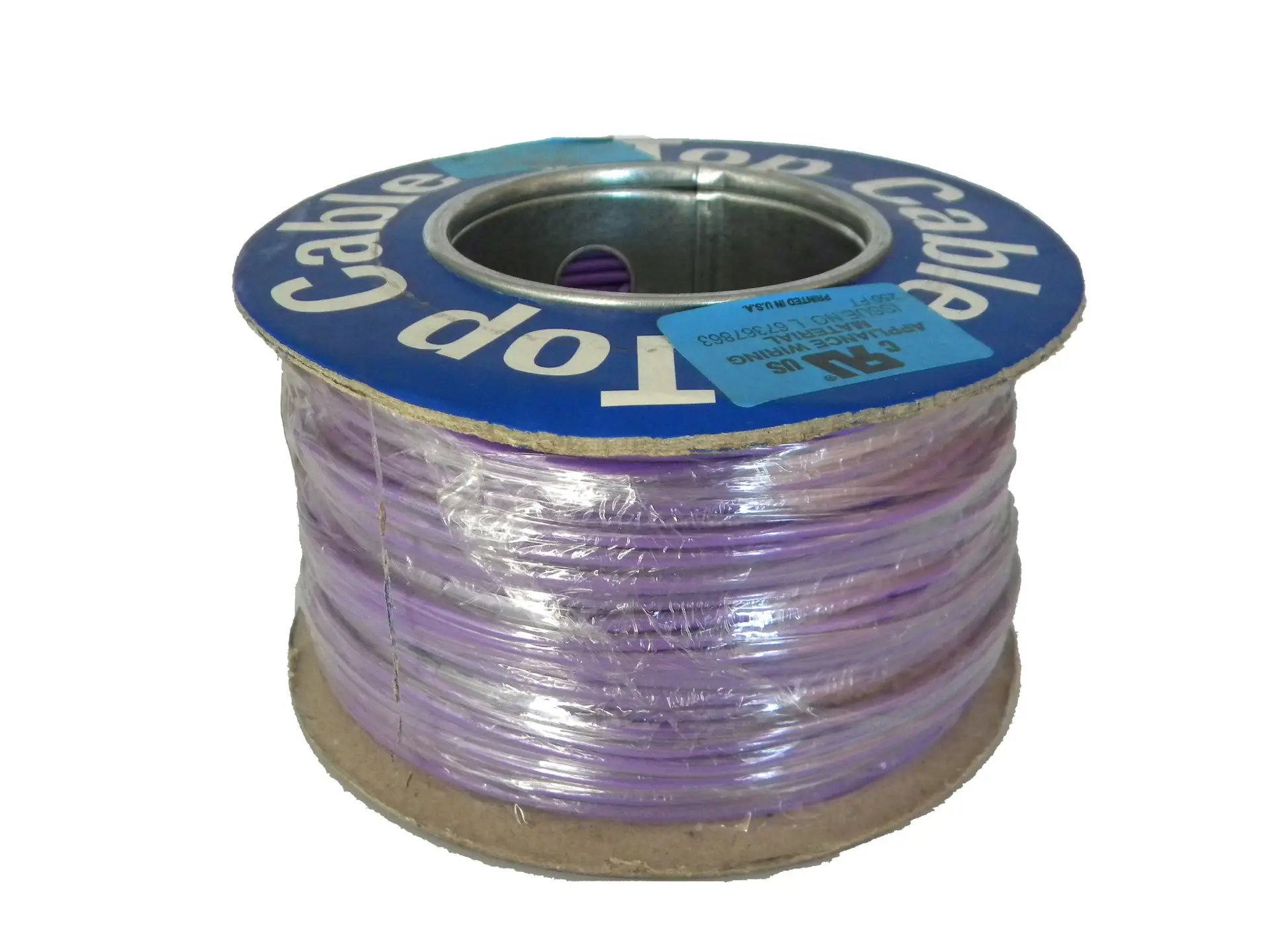

Tri-Rated Cable supplied on 100m reels.
Specification
Conductor:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Copper, class 5 (flexible), based on EN60228 / IEC 60228 and BS 6360.
Insulation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Flexible PVC, extra sliding, high service temperature type TI3 according to UNE 21031/HD 21 and Class 43 UL 1581.
Voltage Rating          (Uo/U): UL, CSA: 600/1000V BS 6231: 600/1000V BS EN 50525-2-31: 300/500V, 450/750V
Temperature Rating:    UL, CSA: +105°C BS 6231: +90°C Minimum: -15°C
Min Bending Radius:Â Â Â Â 6 x overall diameter
Additional information
| Weight | 1.2 kg |
|---|---|

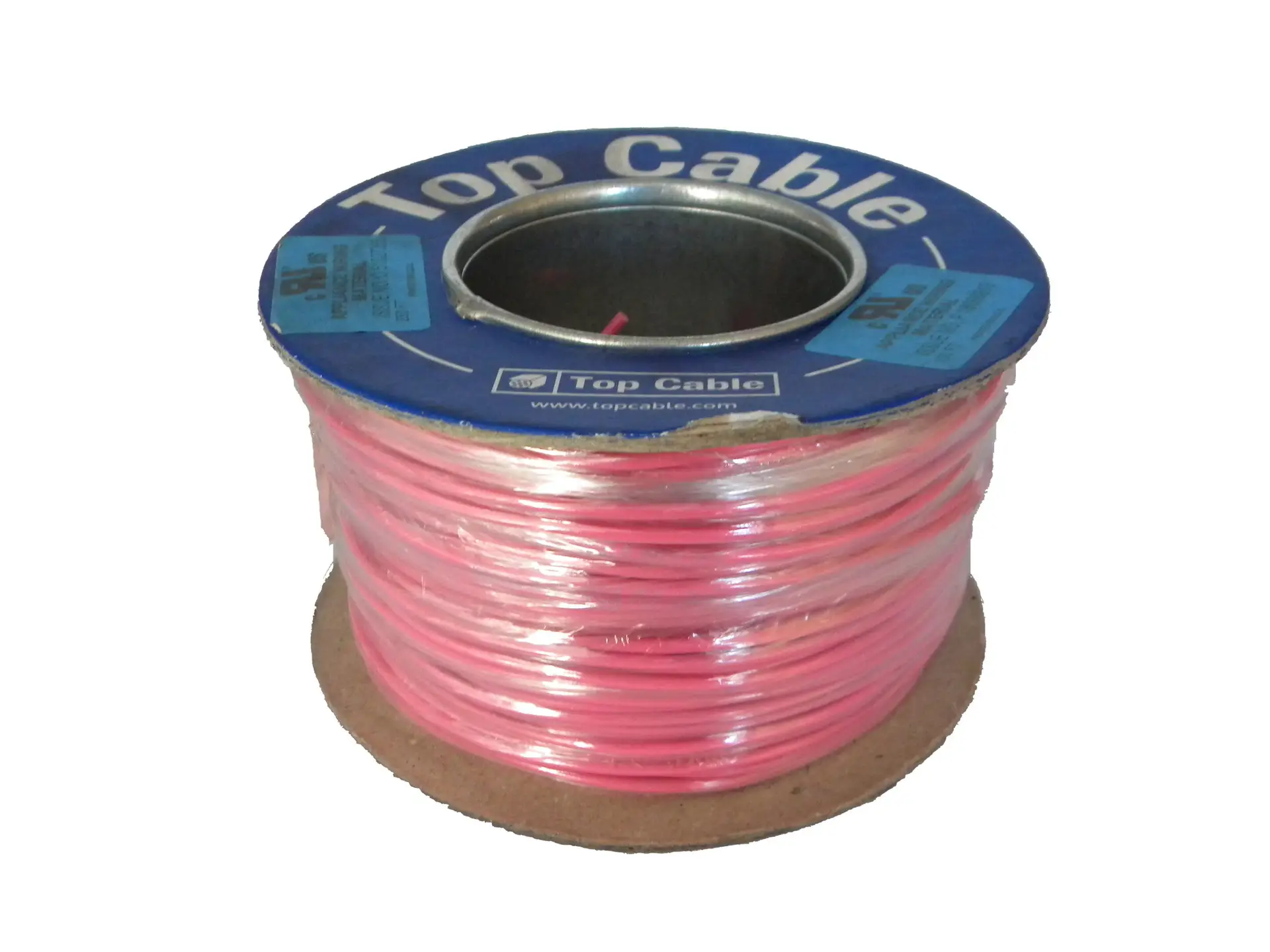

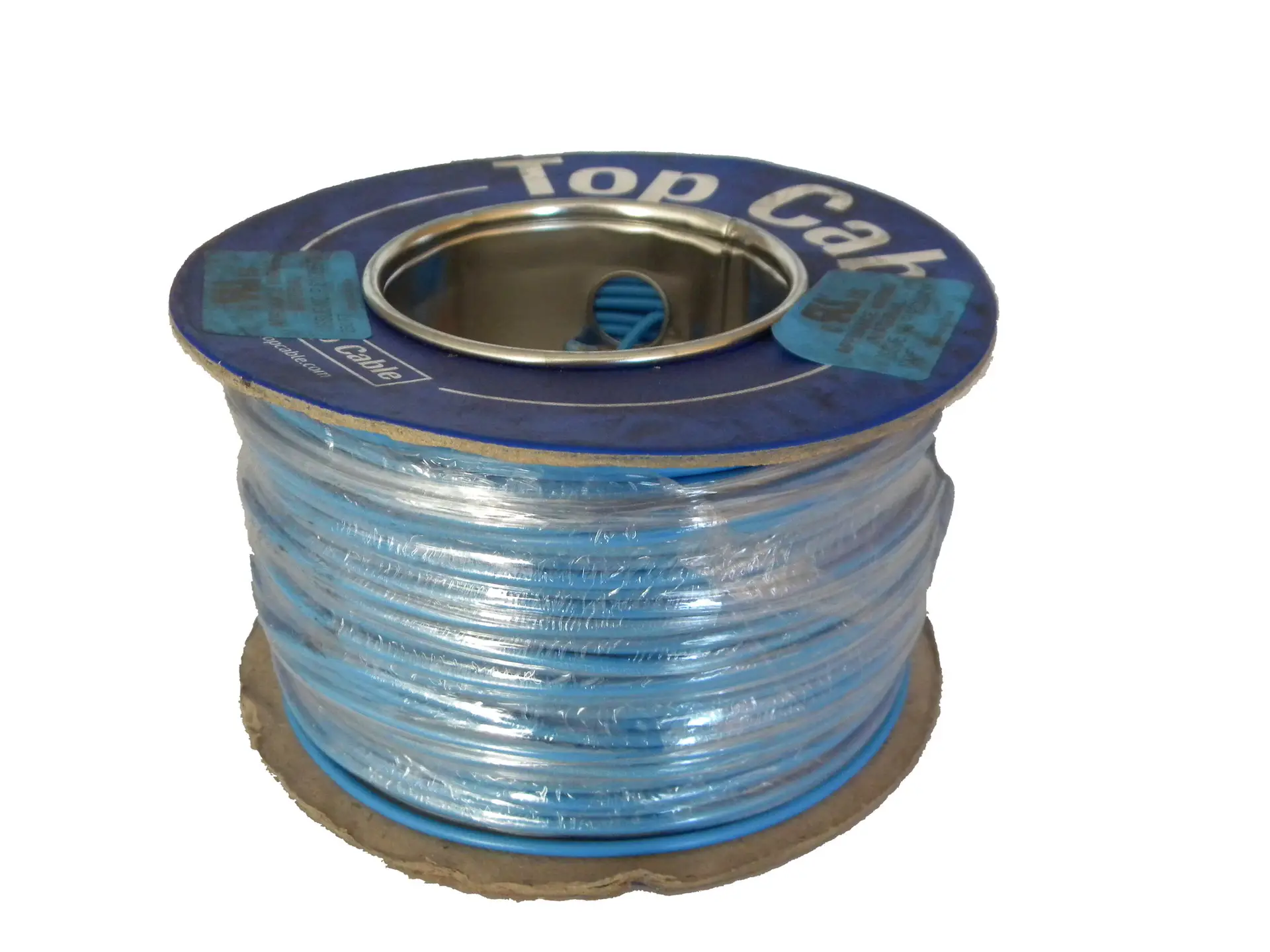

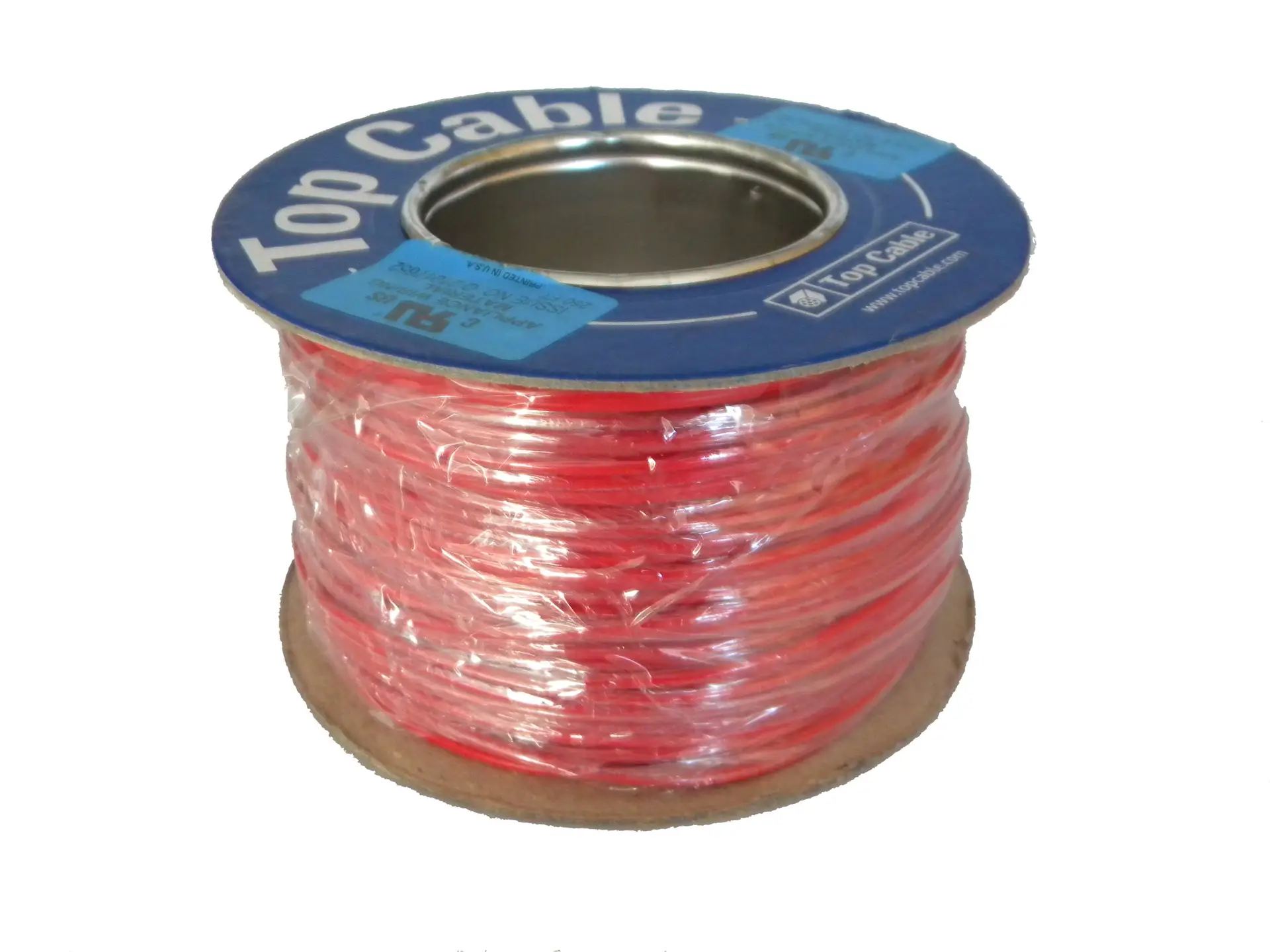

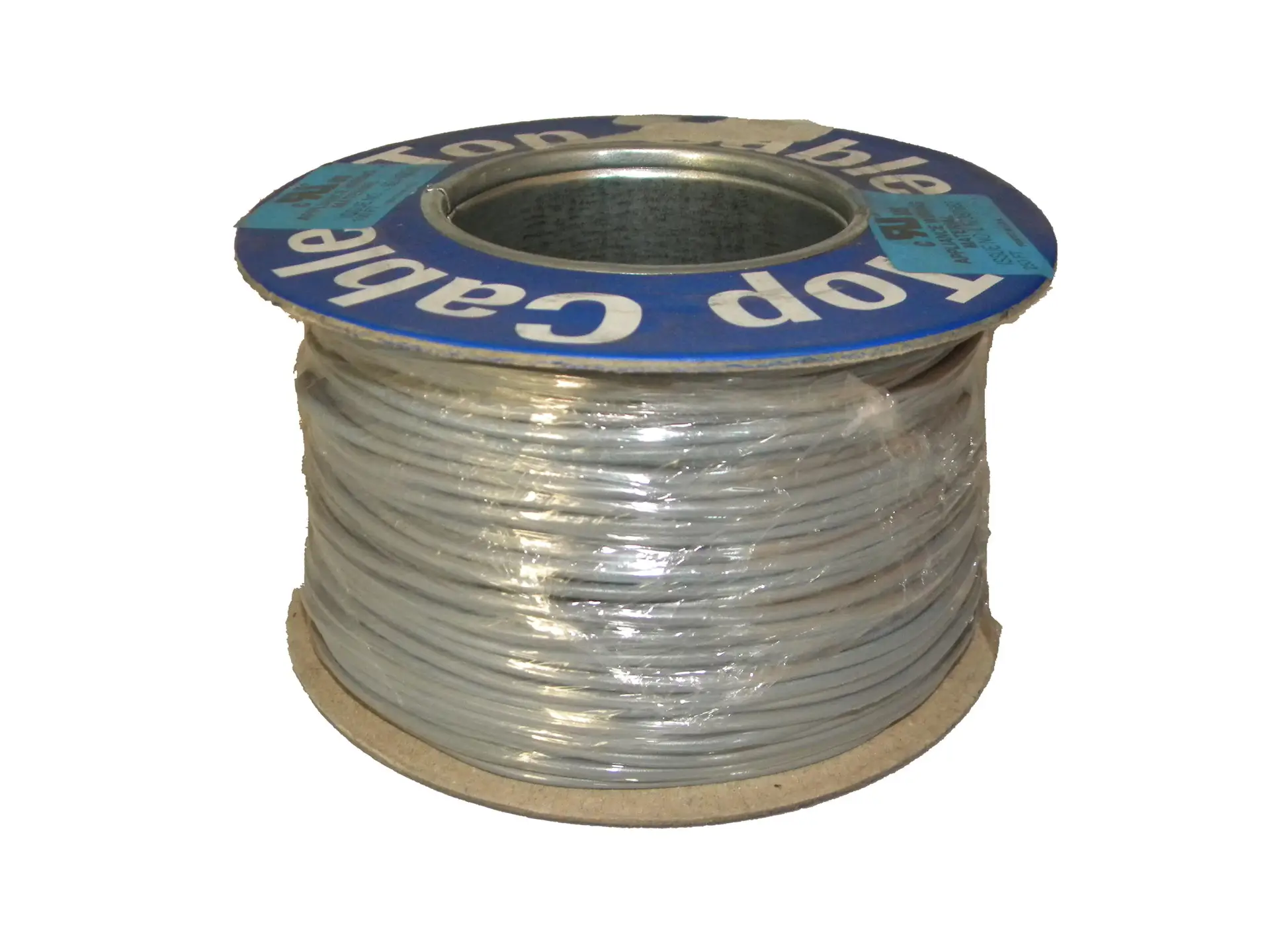

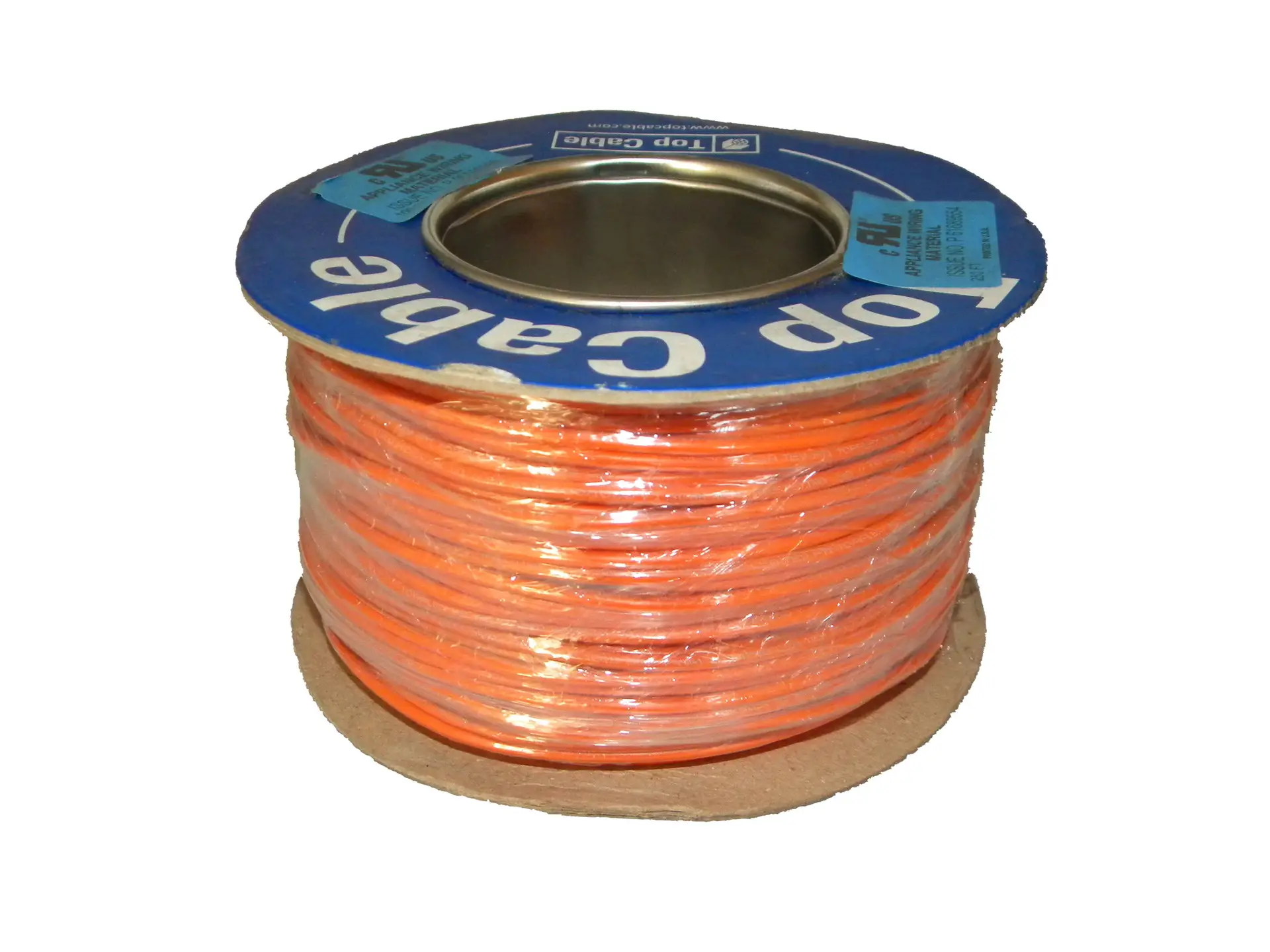

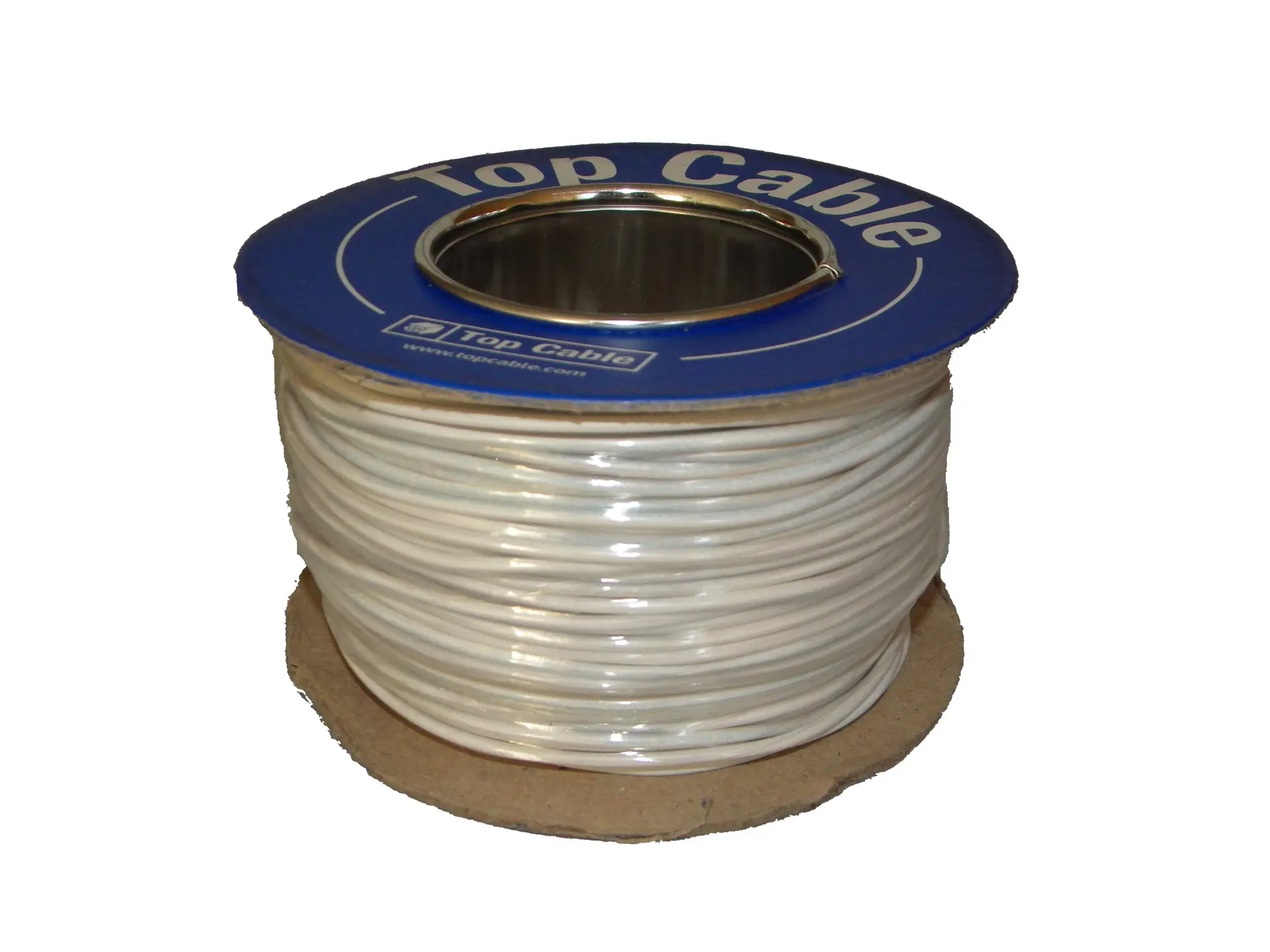

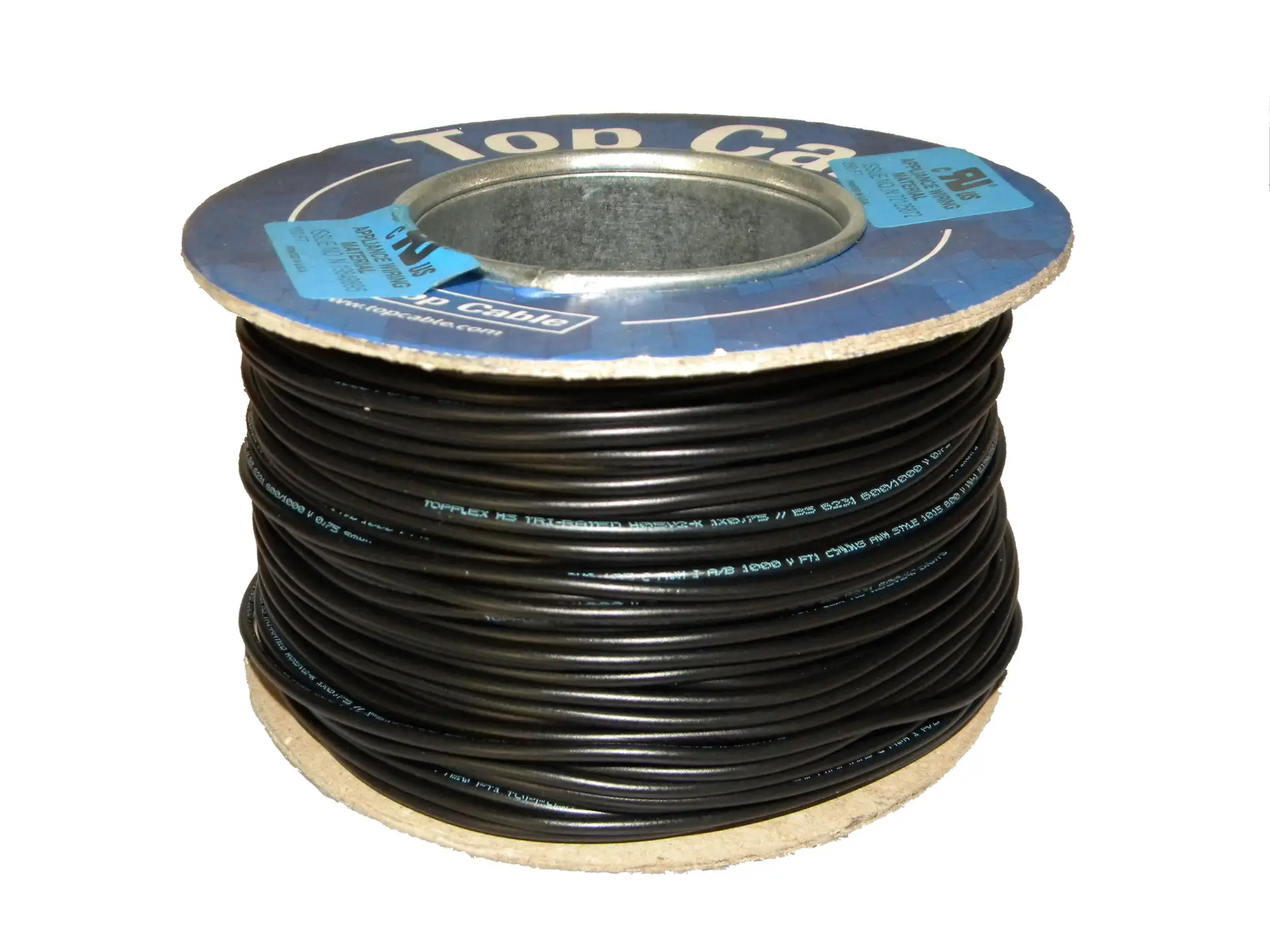

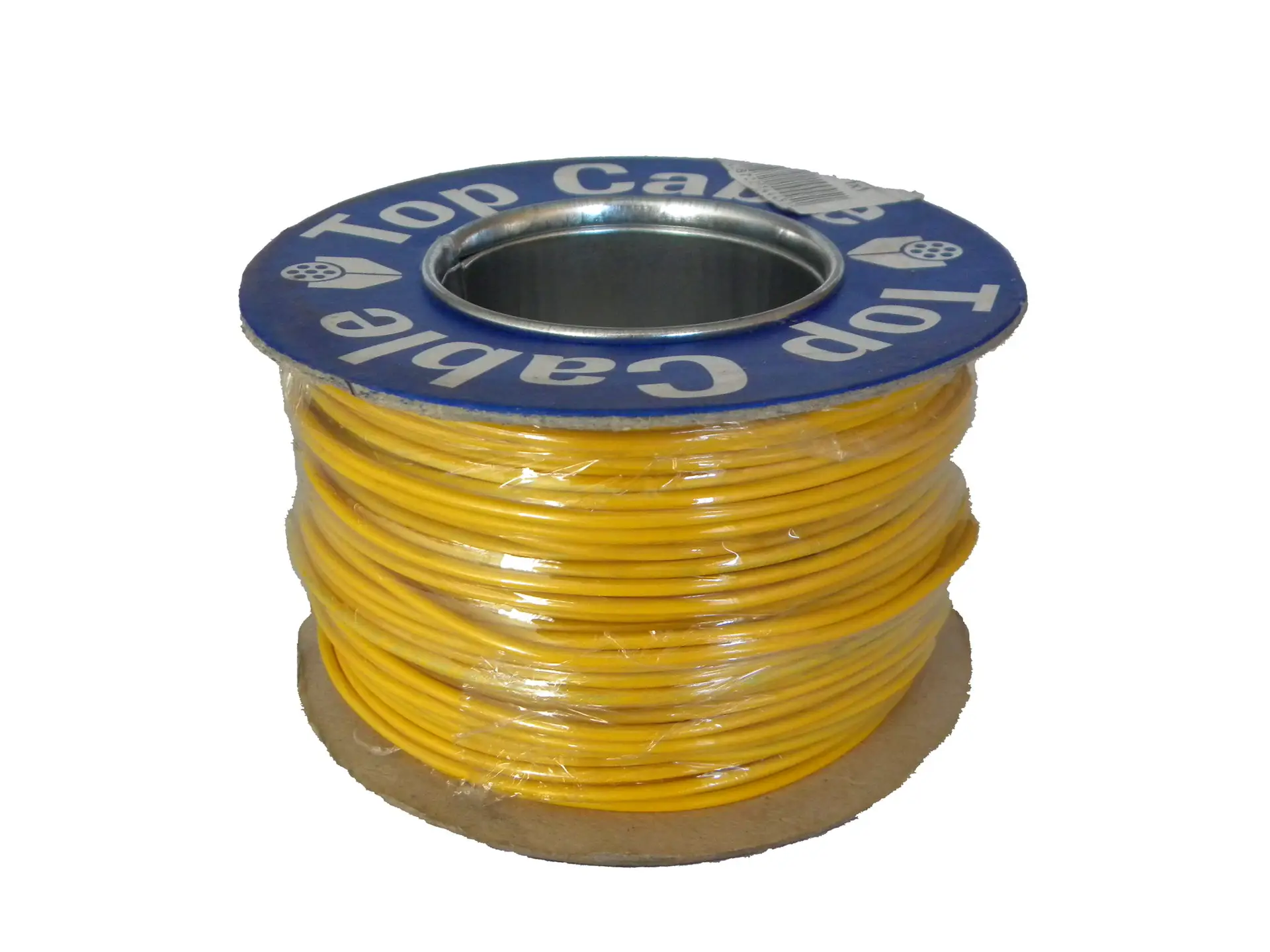

| Colour | Black, Blue, Brown, Green, Green/Yellow, Grey, Orange, Pink, red, Violet, White, Yellow |
| Cable Size | 0.5mm, 0.75mm, 1mm, 1.5mm, 2.5mm, 4mm |
