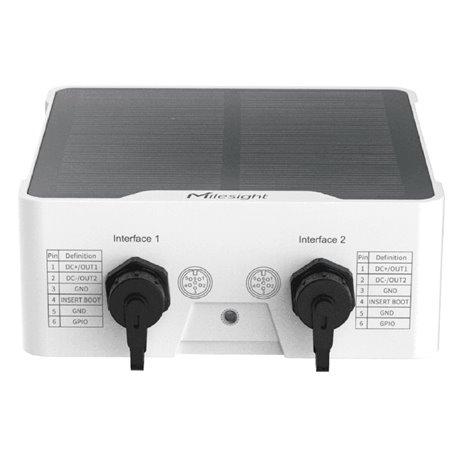

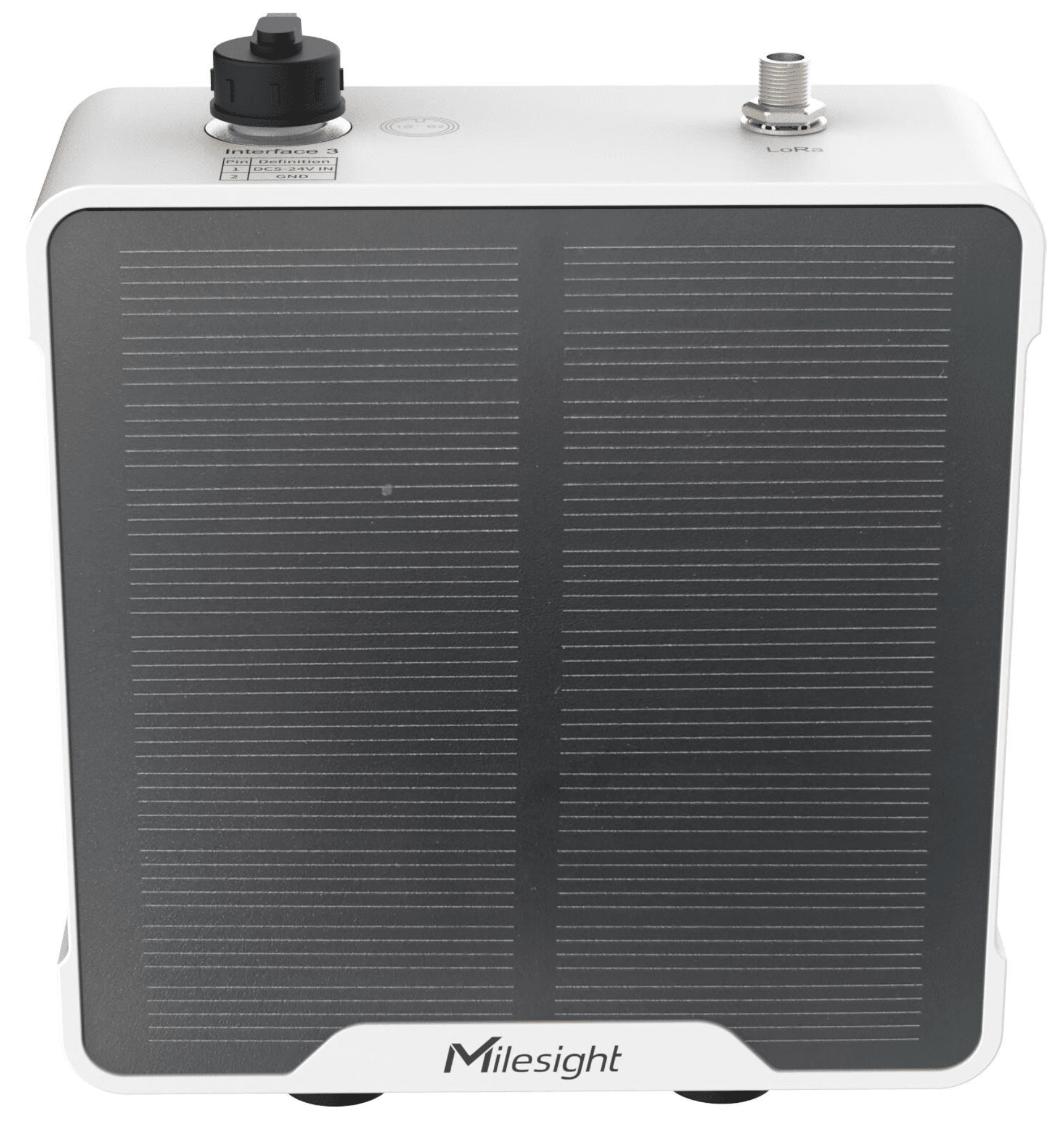

UC511-DI-868M-EA – Solenoid Valve Controller with External Antenna

The UC511 series LoRaWAN® Solenoid Valve Controller is a device used to remotely control the valve’s DC latching solenoids. It contains 2 solenoid interfaces and 2 GPIO interfaces, which can be easily controlled locally or remotely.

In addition to ultra-low-power LoRaWAN® technology, the UC511 series includes a built-in solar panel and a high-capacity battery for long-term operation. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors, providing protection against water and dust under harsh environments.

Features

• External Antenna: 1 * 50 Ω SMA Female Connector
• Compatible with standard DC latching solenoids
• Waterproof design including IP67 case and M12 connectors
• Solar-powered and built-in chargeable batteries
• OPEN/CLOSE control by mobile App locally or commands remotely
• Two GPIO interfaces for flow monitoring or valve status monitoring
• Transmission distance up to 15 km with line of sight
• Store locally 1000 historical records and support retransmission to prevent data loss
• Equipped with NFC for easy configuration
• Support multicast for control in bulk
