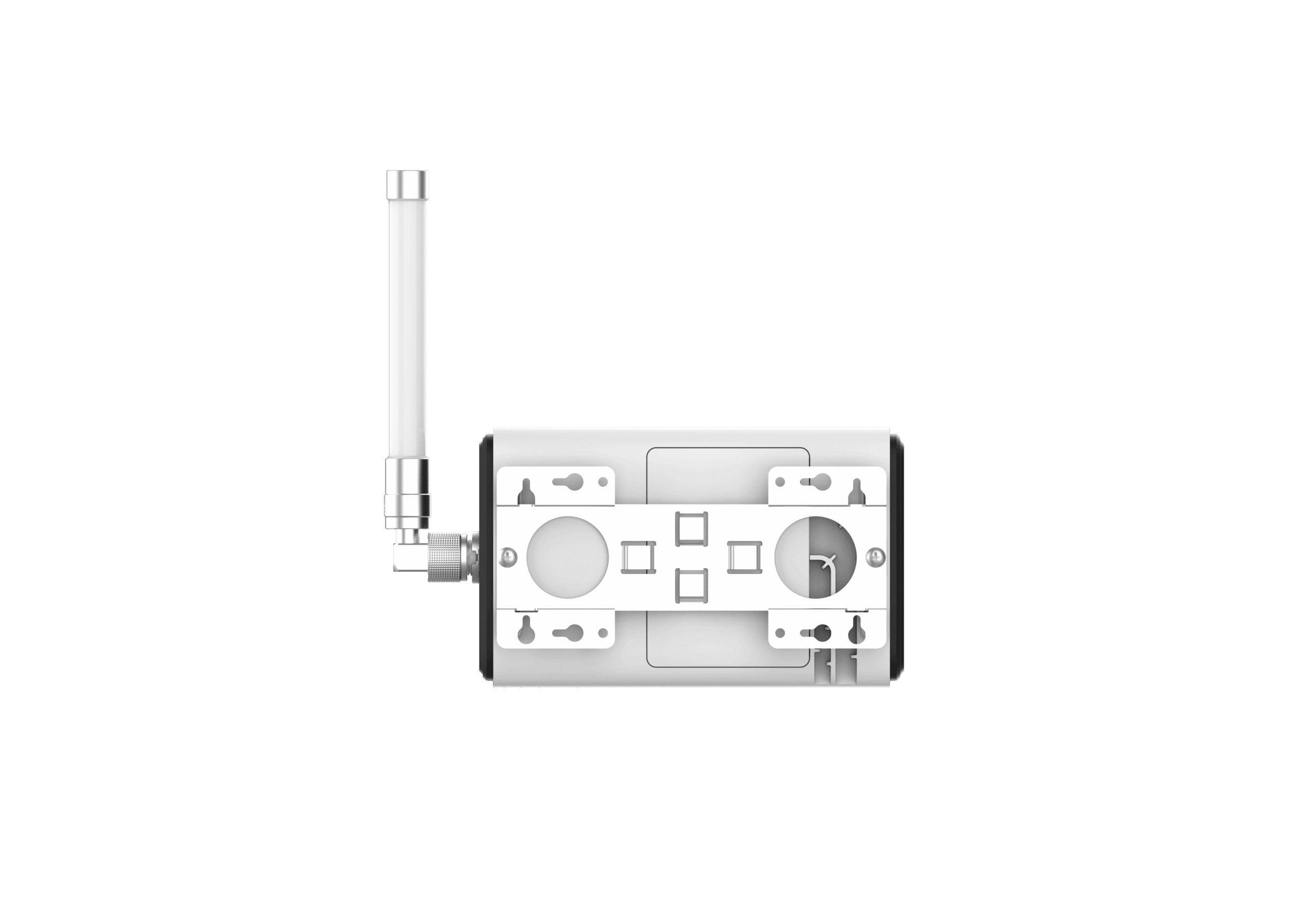

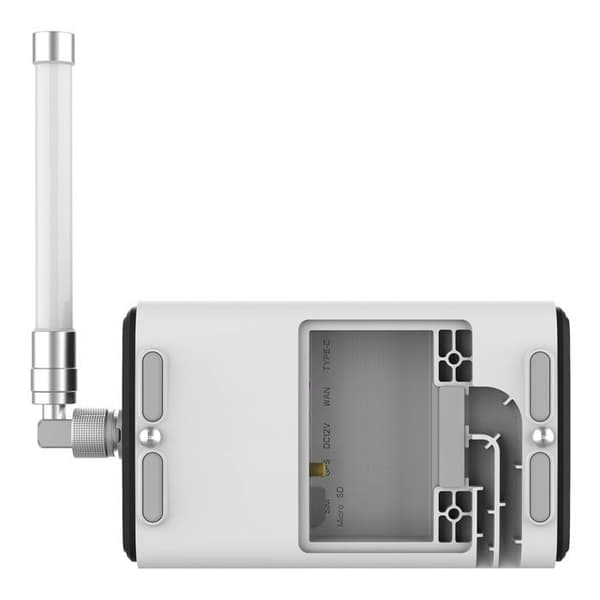

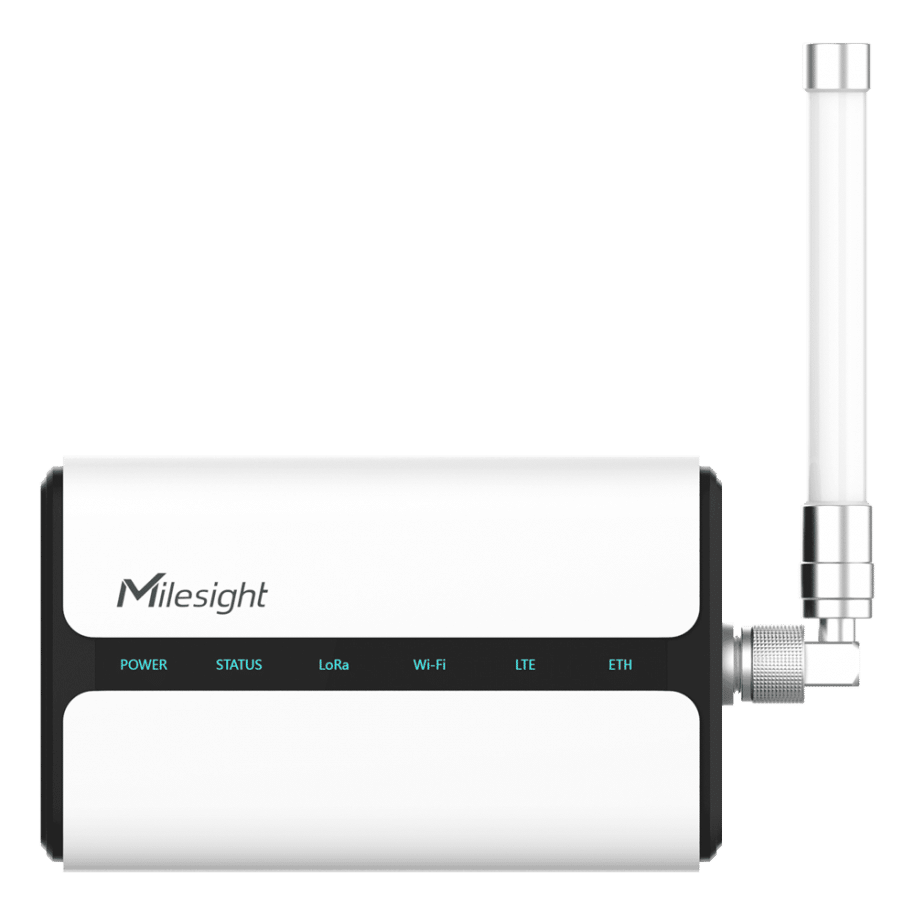

UG65-L08GL-868M-EA LoRaWAN Receiver to HTTP and MQTT Gateway with 4G

£412.00

UG65 is a robust 8-channel indoor LoRaWAN ® gateway.

- +

⚡ Electrical Calculator

🔌 Cable Size Reference

🌬 Unit Converter

🔋 Transformer VA & MCB Calculator

📊 Reference Guide

Current (A) Cable Size (mm²)
6 1
6-12 1.5
12-25 2.5
25-32 4
32-40 6
40-64 10
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.
SKU: UG65-L08GL-868M-EA Categories: , , Tags: , Brand: , ,
Download Product Catalog

Description

UG65 is a robust 8-channel indoor LoRaWAN ® gateway. Adopting the SX1302 LoRa chip and a high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has line-of-sight up to 15 km and can cover about 2 km in an urbanised environment, which is ideally suited to smart offices, smart buildings and many other indoor applications.

UG65 supports multiple back-haul backups with Ethernet, Wi-Fi, and cellular, and includes integrated mainstream network servers (such as TTI, ChirpStack, etc.) and a built-in network server.

We have developed a set of supporting Java code and Niagara 4 modules to use with this device, allowing you to easily get Milesight and Enless LoRaWAN wireless data into your Niagara 4 stations.

Features

  • Quad-core industrial processor (1.5GHz) with big memory
  • Equipped with SX1302 chip, handling a higher amount of traffic with lower consumption
  • 8 half/full-duplex channels
  • IP65 enclosure and industrial design for parts of outdoor environment applications like eaves
  • Desktop, wall or pole mounting
  • Multi backhaul backups with Ethernet, cellular (4G/3G) and Wi-Fi
  • Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
  • Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
  • Detect and analyse the noise level and provide an intuitive diagram for deployment
  • Built-in network server and MQTT/HTTP/HTTPS API for easy integration
  • Support BACnet/IP as well as Modbus/IP to integrate LoRaWAN data to BMS system easily
  • Embedded Python SDK for users’ secondary development
  • Fast and user-friendly programming by the Node-RED development tool

Additional information

Weight 0.30 kg
Dimensions 11.5 × 10.5 × 0.3 cm
