Voltage to Current Conversion Module – IO-VI
£43.00

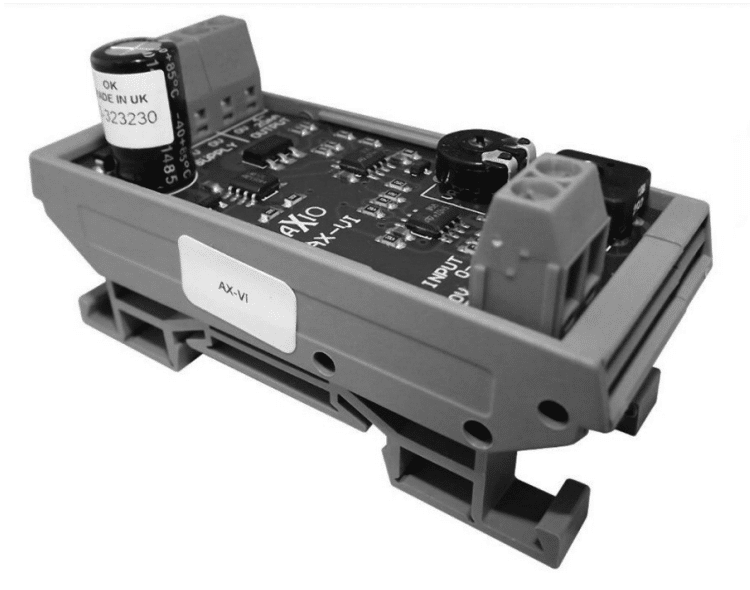

The IO-VI is designed to convert a 0-10Vdc input signal to a 4-20mA current output. The IO-VI is supplied in a DIN Rail carrier suitable for mounting on a TS35 DIN Rail section and features high-quality rising clamp terminals for ease of connection. The unit is powered by 24 Vac/dc and can power a current-loop signal.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The IO-VI is designed to convert a 0-10Vdc input signal to a 4-20mA current output. The IO-VI is supplied in a DIN Rail carrier suitable for mounting on a TS35 DIN Rail section and features high-quality rising clamp terminals for ease of connection. The unit is powered by 24 Vac/dc and can power a current-loop signal.
Features:
● 0-10Vdc input
● 4-20mA output
● 24Vac/dc powered
● High-quality rising clamp terminals
● DIN rail mounting (TS35)

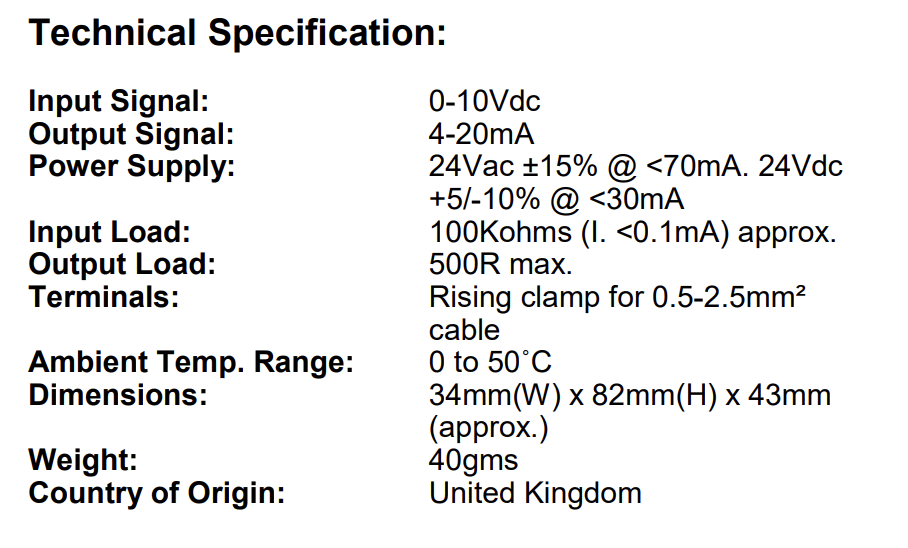

Technical Specification:
Input Signal: 0-10Vdc
Output Signal: 4-20mA
Power Supply: 24Vac ±15% @ <70mA. 24Vdc +5/-10% @ <30mA
Input Load: 100Kohms (I. <0.1mA) approx.
Output Load: 500R max.
Terminals: Rising clamp for 0.5-2.5mm² cable
Ambient Temp. Range: 0 to 50˚C
Dimensions: 34mm(W) x 82mm(H) x 43mm (approx.)
Weight: 40gms
Country of Origin: United Kingdom
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps |
4A, 6A, 8A |
