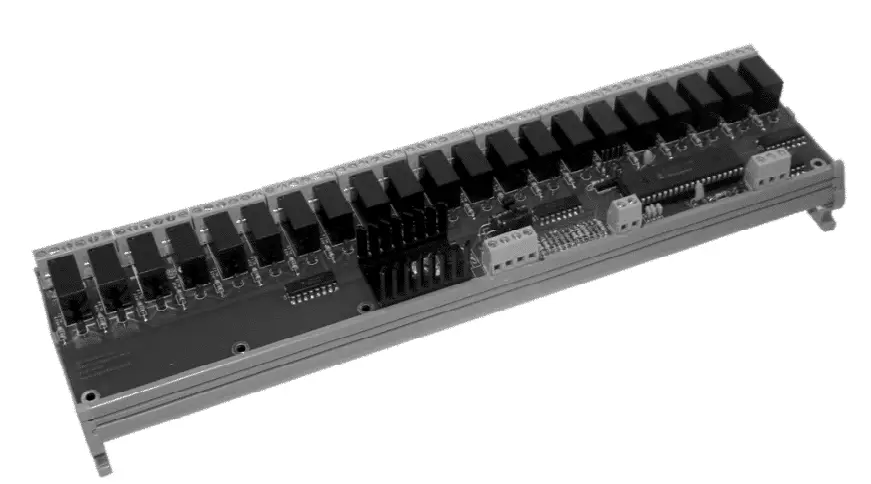

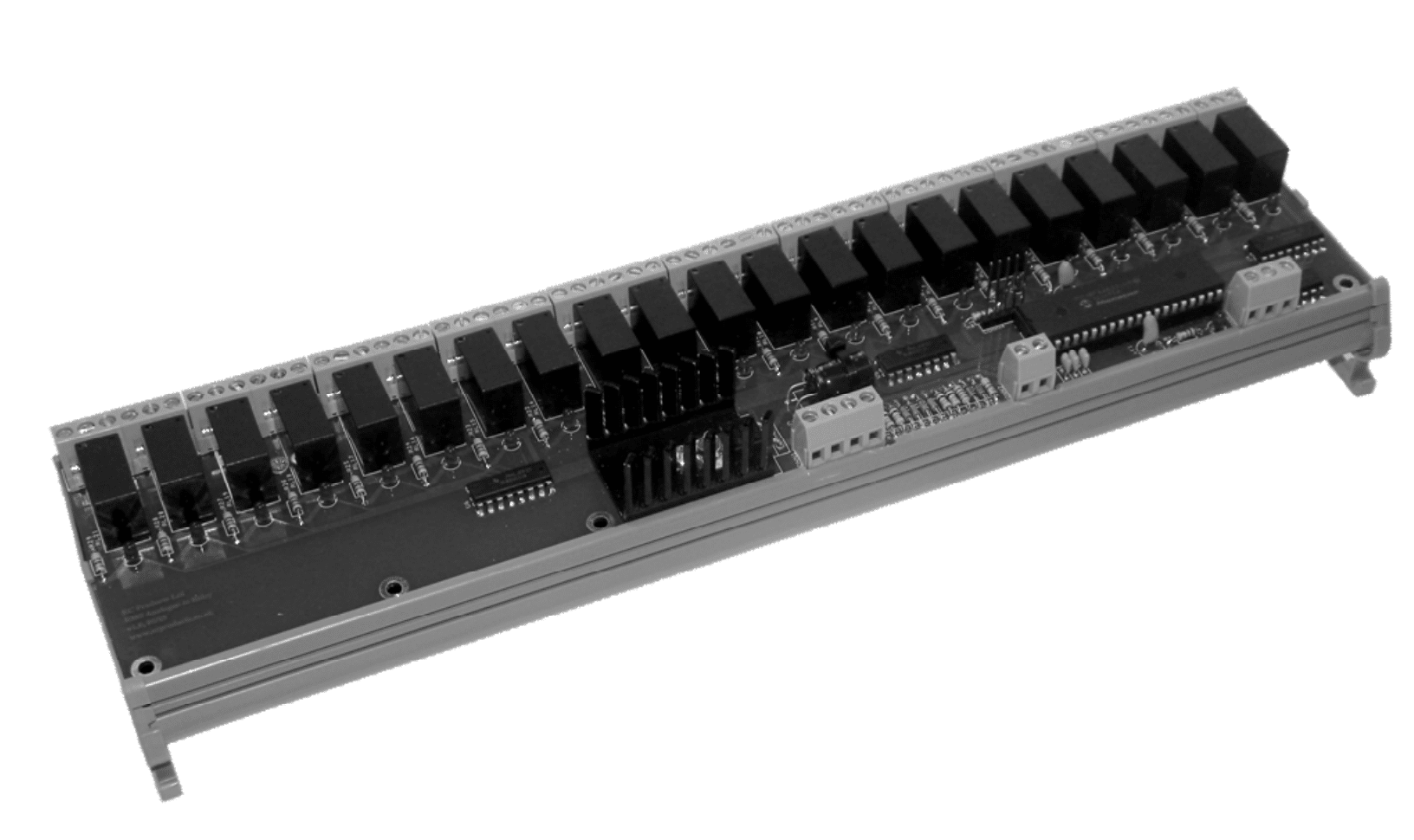

Analogue to 20 Relay Card – IOAD20
£135.00
The IOAD20 has been designed primarily for fault indication of up to 20 alarms from 1 analogue signal. It provides 20-volt free-changeover contacts and 1 common-output contact.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
- No-Risk Money Back Guarantee!
- No Hassle Refunds
- Secure Payments
Description
The IOAD20 has been designed primarily for fault indication of up to 20 alarms from 1 analogue signal.
It provides 20-volt free-changeover contacts and 1 common-output contact.

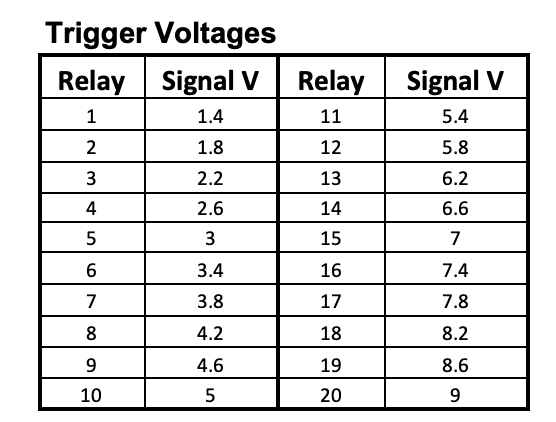

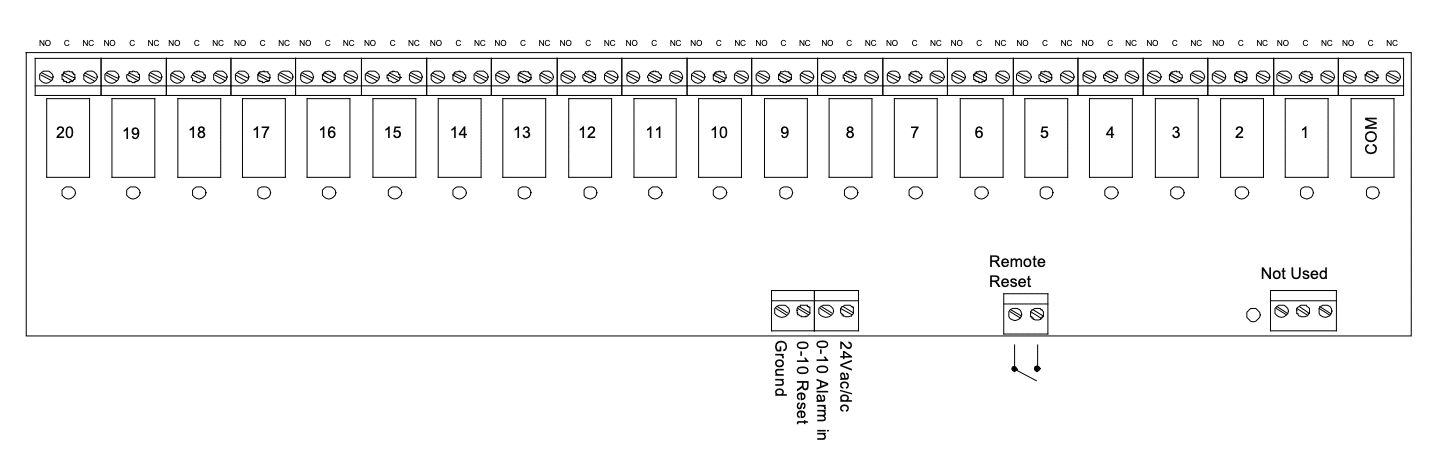

It can be reset using a second analogue signal or by a remote push button. It can also be used to convert one 0-10V signal to 20 outputs and using a second 0-10V signal to reset.
Specification
Output: 21 x Volt free change over contacts 5 Amp
Supply Voltage: 24Vac/dc @ 600mA max.
Termination: Rising clamp for 0.5 to 2.5mm² cable.
Dimensions: 326 x 93 x 50mm
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps | 4A, 6A, 8A |
