Multical 403 Compact ultrasonic energy meter
Price range: £480.00 through £1,340.00
Please select Nominal flow size below
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

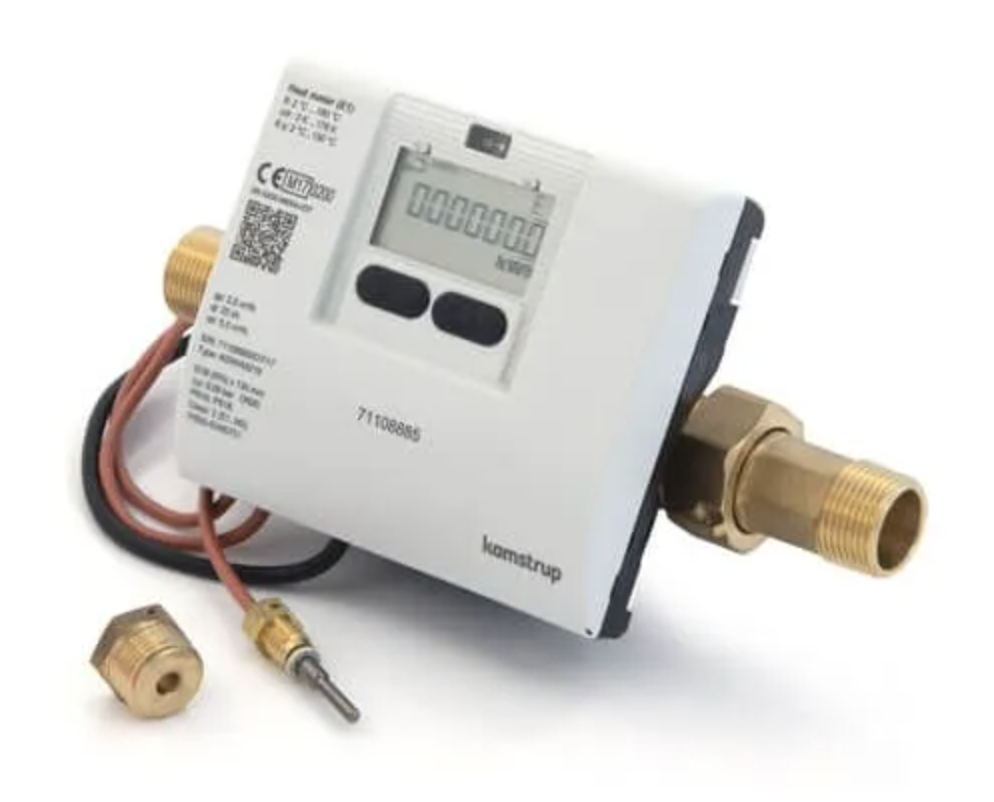

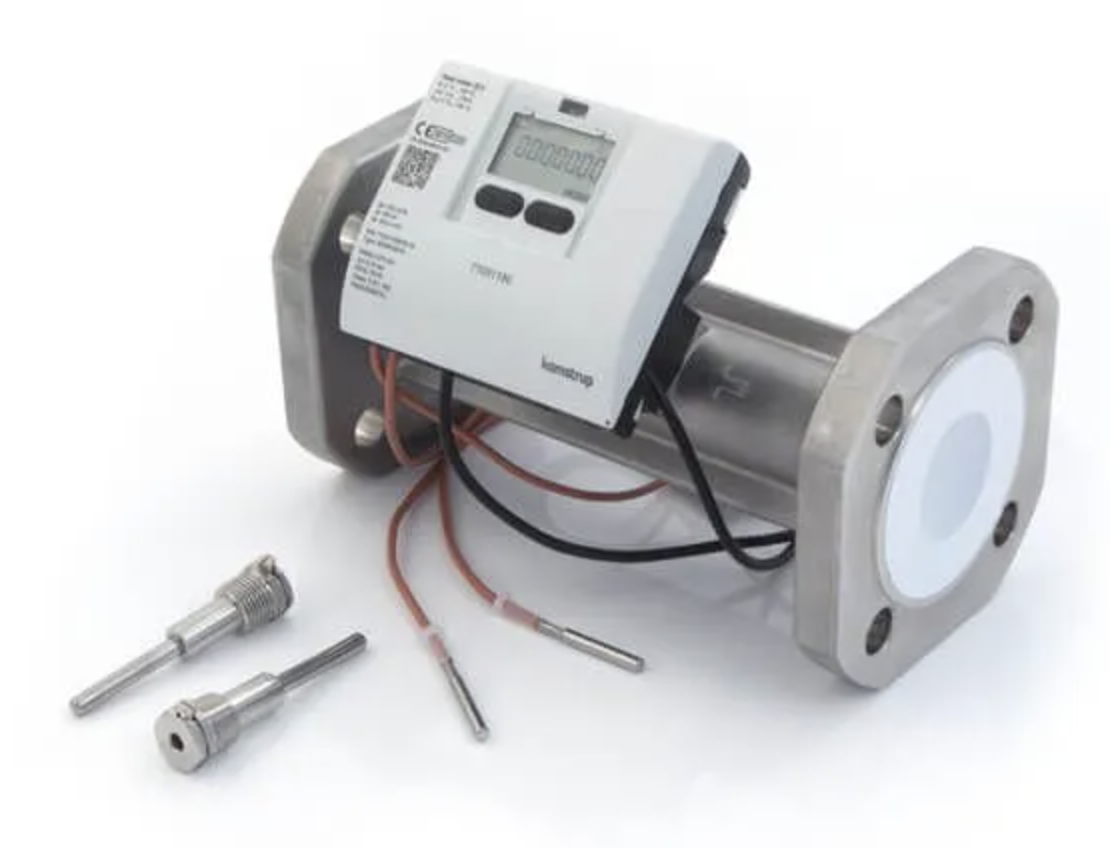

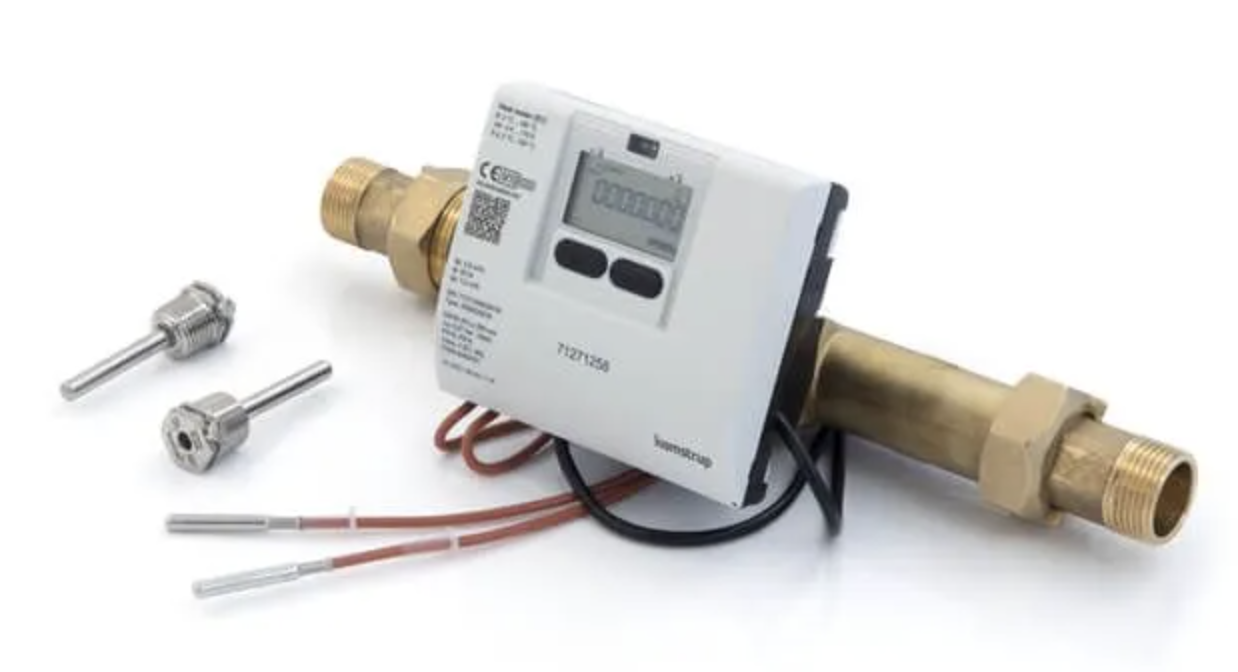

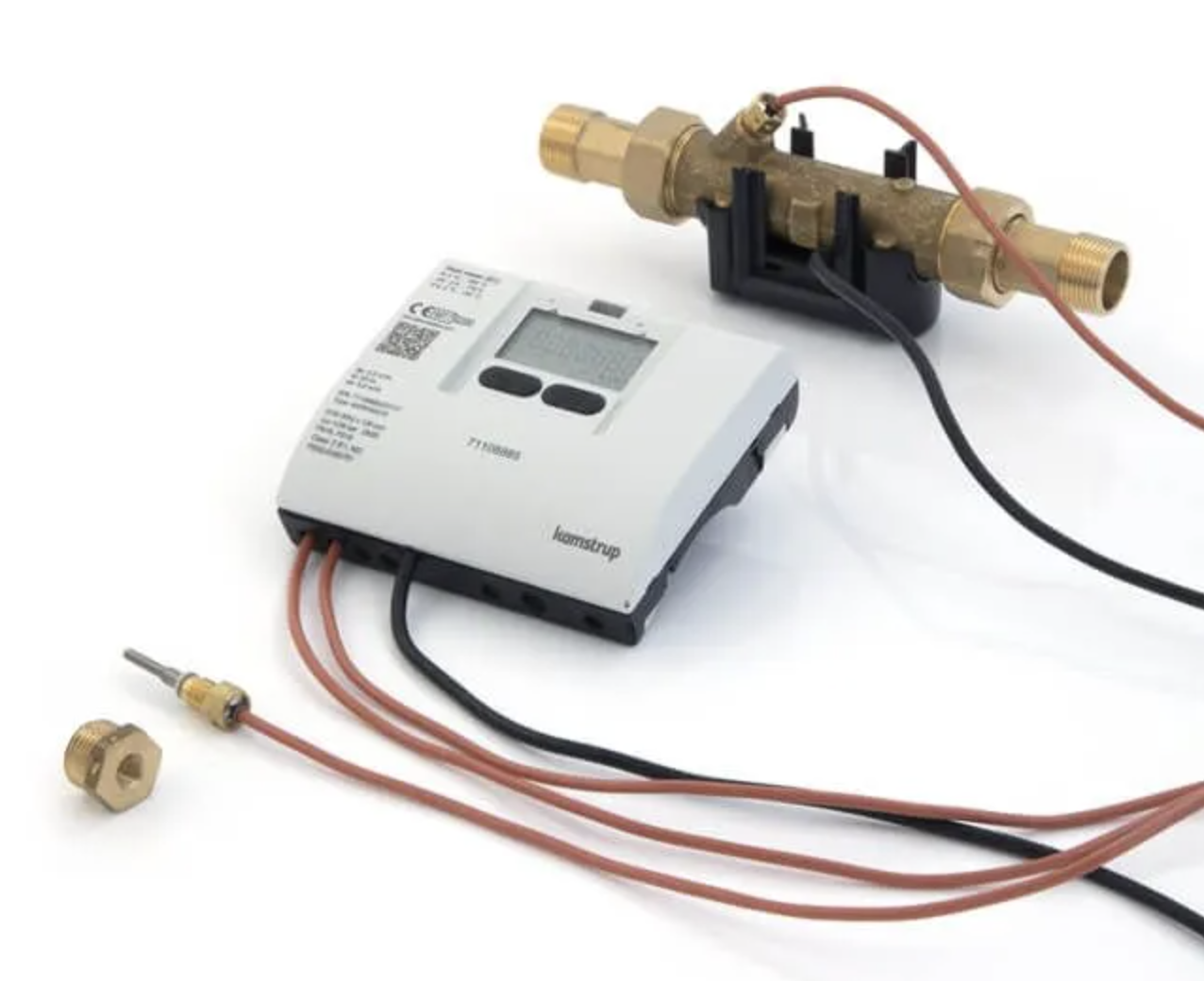

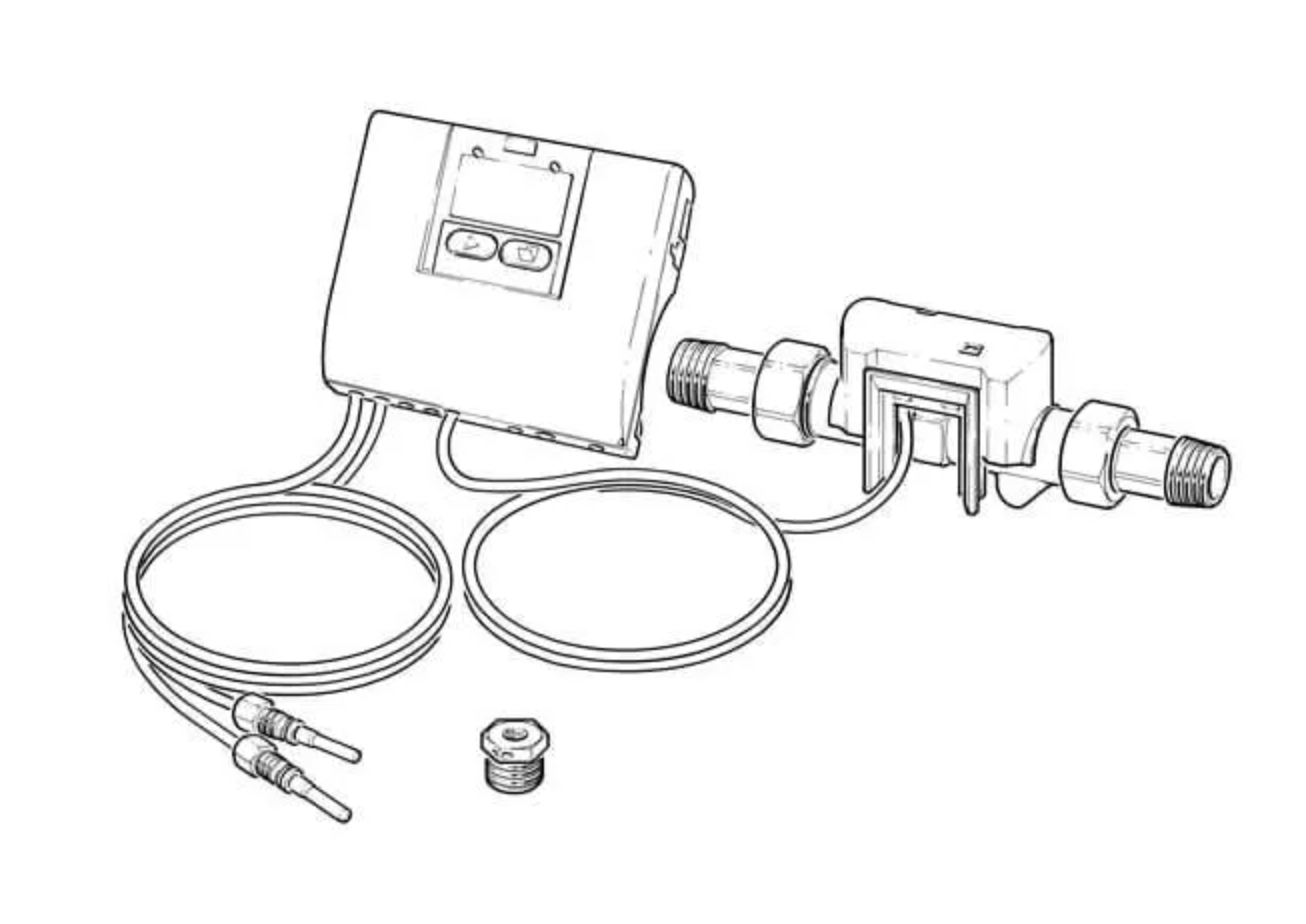

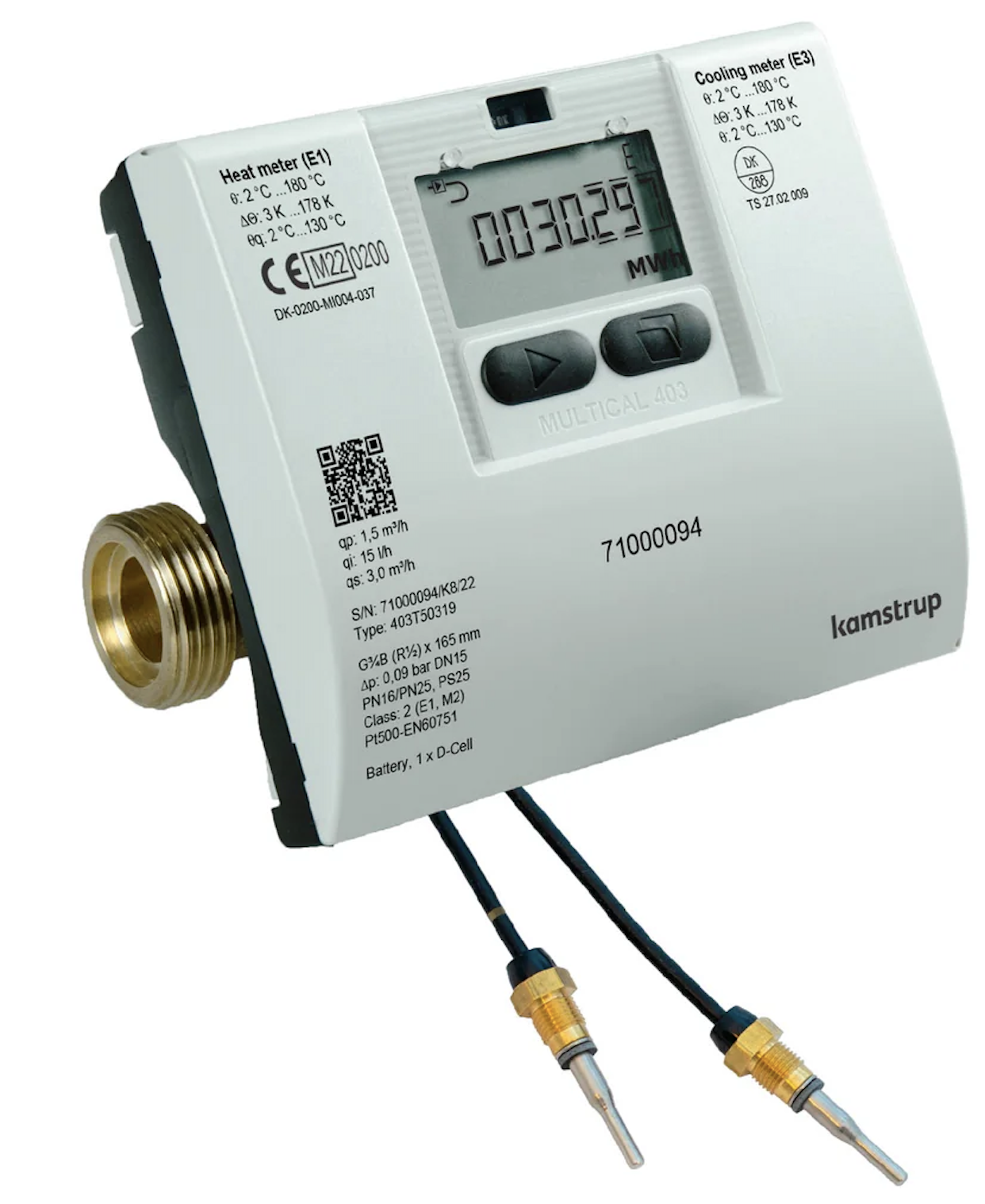

Multical® 403 is a compact ultrasonic energy meter that consists of a calculator, a flow sensor, a 1.5 m signal cable, and two 1.5 m return temperature sensors, for water-based heating systems operating at temperatures from 2 to 130°C. Powered by a D-cell lithium battery (up to 14 years of life), the calculator’s two front keys adjust date and time or reset operating hour/info-event counters and can be used to display log data, including yearly or monthly logger. Can be fitted with optional communication modules for Wireless M-Bus + 2 pulse inputs, M-Bus + 2 pulse inputs and Data pulse + 2 pulse outputs.
| Brand | Kamstrup |
| Standards | BS EN 1434-2/+A1 |
| Application | Developed for measuring energy consumption in family and multiple occupancy housing, blocks of flats and small industry. |
| Connection | 1/2″ BSP M to 2″ Flanged, PN25 |
| Dimensions | Calculator: H 110 x W 128 x D 40 mm |
| Flow Rate | Max: 3 m³/h to 30 m³/h |
| Nominal Bore | DN15 to DN50 |
| Nominal M3/H | 1.5 m³/h to 15 m³/h |
| Optional Data Output | Communication modules for Wireless M-Bus + 2 pulse inputs, M-Bus + 2 pulse inputs and Data pulse + 2 pulse outputs. |
| Power Supply | D-cell Lithium Battery |
| Pressure Loss | 0.09 bar @ Qp to 0.14 bar @ Qp |
| Size | 1/2″ (15mm) to 2″ (50mm) |
| Temperature Range | 2° C to 130° C |
| Type | Heat Meter |
|
Part Code |
Size mm |
Nom Flow M3/Hour |
|
MC403/15/0.6 |
15 |
0.6 |
|
MC403/15/1.5 |
15 |
1.5 |
|
MC403/20/2.5 |
20 |
2.5 |
|
MC403/25/3.5 |
25 |
3.5 |
|
MC403/25/6 |
25 |
6 |
|
MC403/40/10 |
40 |
10 |
|
MC403/50/15 |
50 |
15 |
Additional information
| Weight | 2 kg |
|---|---|
| Nominal Flow M3/H |
0.6, 1.5, 2.5, 3.5, 6, 10, 15 |
