Polished Brass Button Temperature Sensor
Price range: £20.90 through £27.30
Please select resistance type
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The button temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or a platinum element. The sensor is housed in a button enclosure.

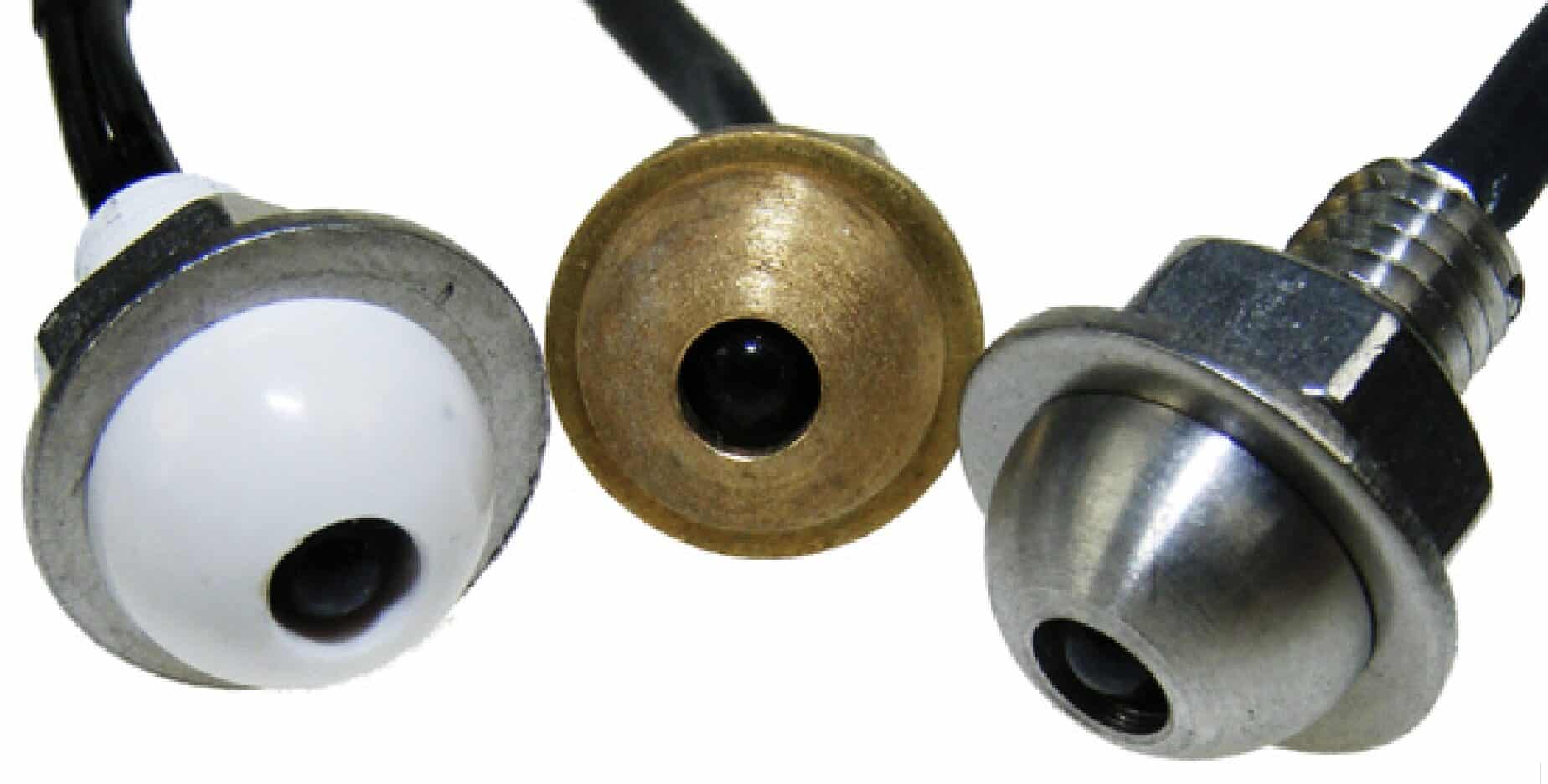

The TE-B range of button temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or platinum element. The sensor is housed in a polished brass button enclosure, with optional black plastic, white plastic, brass, stainless steel, or antique brass versions also available.
Button single-gang face plates are also available in various styles.
Additional information
| Weight | 0.10 kg |
|---|---|
| Sensor Type | 1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000 |
