Description

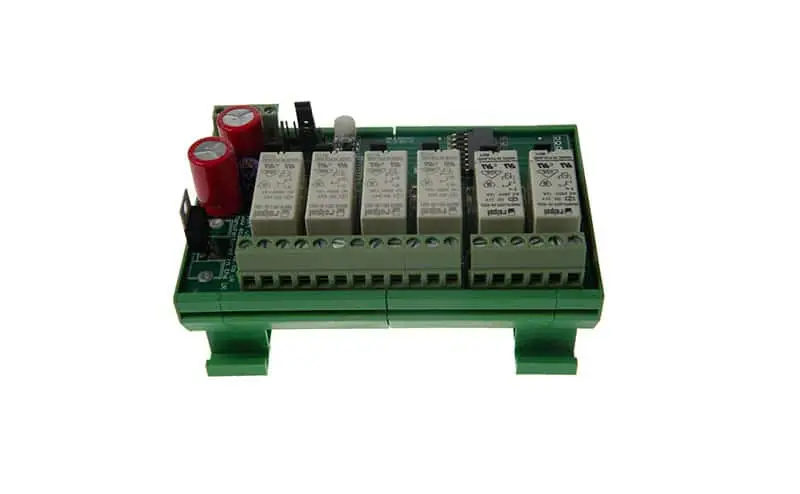

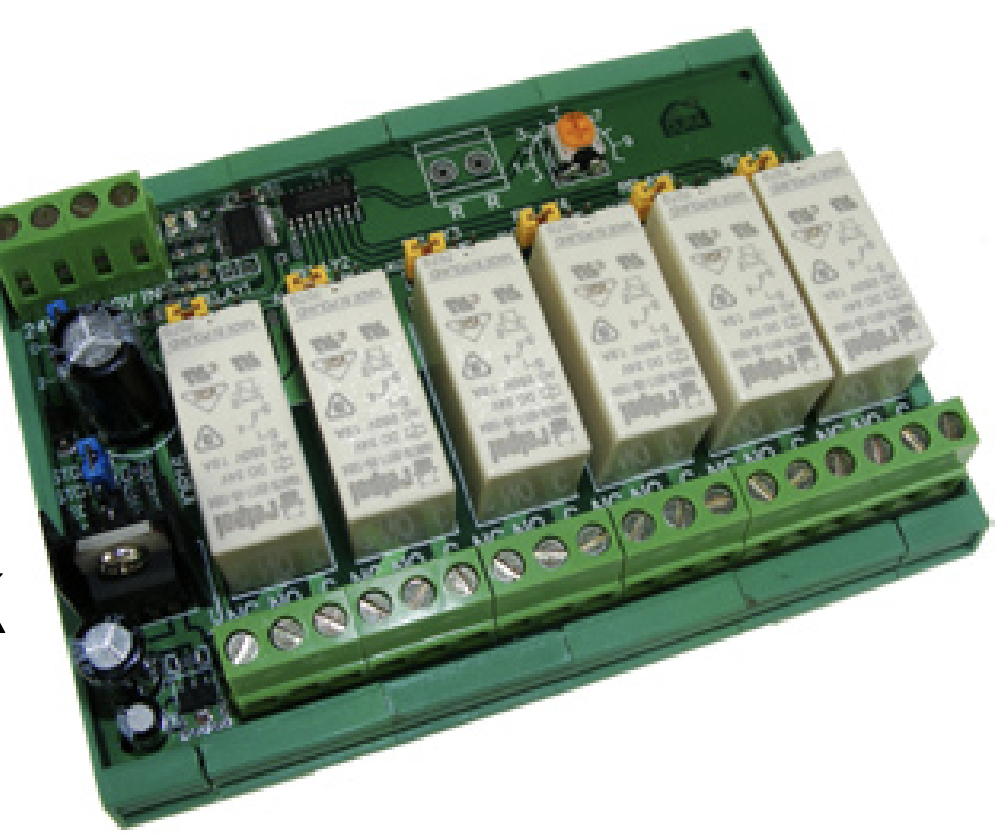

This IO module is used with DDCs to convert an analogue control output to a staged, reverse-staged or sequenced relay output.
LEDs indicate correct operation and low current draw from a 0-10Vdc controller, which means that the IOR6 can work successfully with most BEM controllers.
Specification
Input Signal: 0-10Vdc 1mA min. into 22kΩ impedance
Output Contacts: 8A at 230Vac (resistive load)
Power Supply: 24Vac ± 15% @ 50Hz or 24Vdc +15%/-6%, 90mA max.
Hysteresis: ± 0.2Vdc about switching points (± 0.1Vdc in binary)

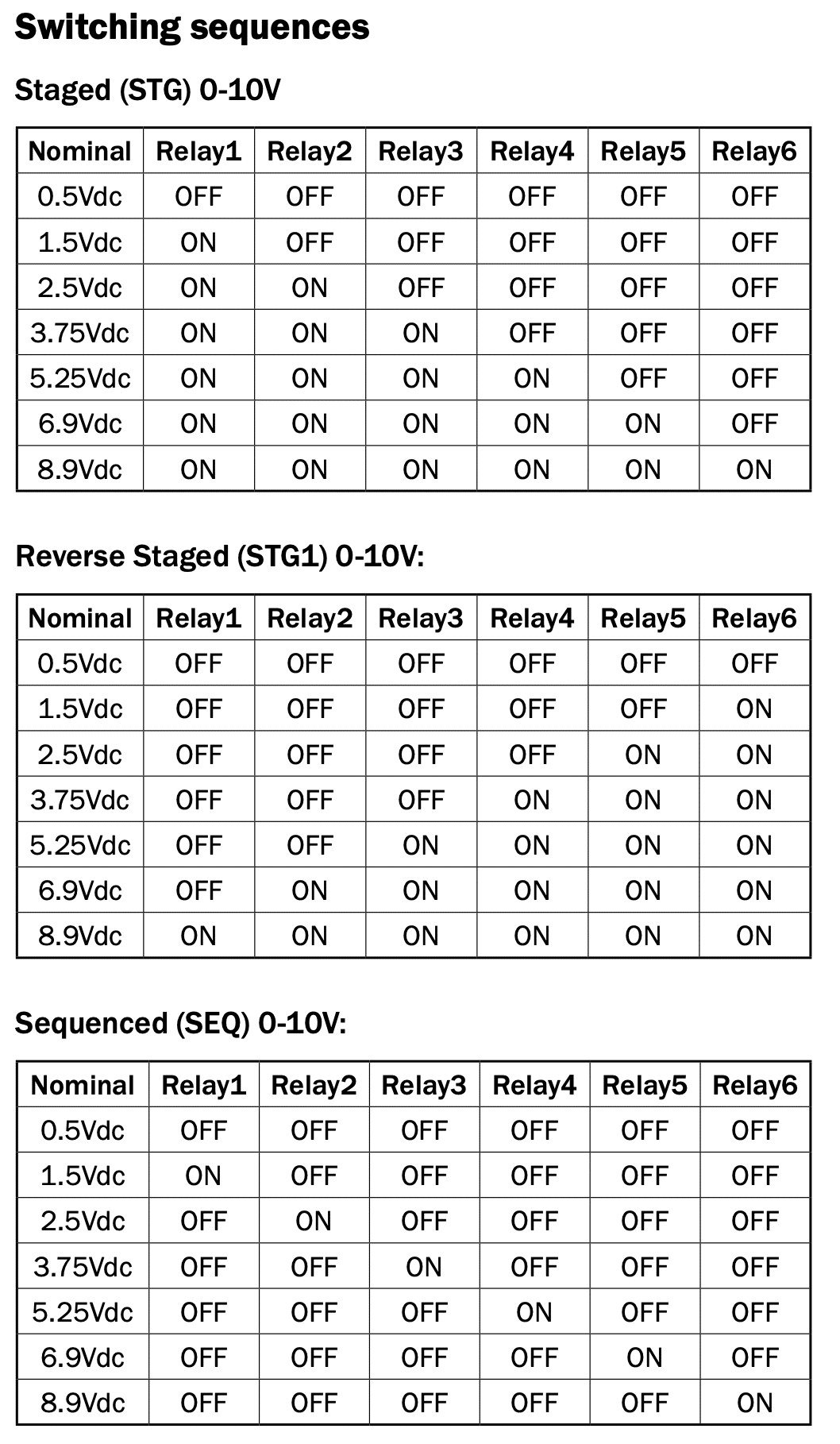

Operating Modes: Staged, Reverse Staged, Sequenced

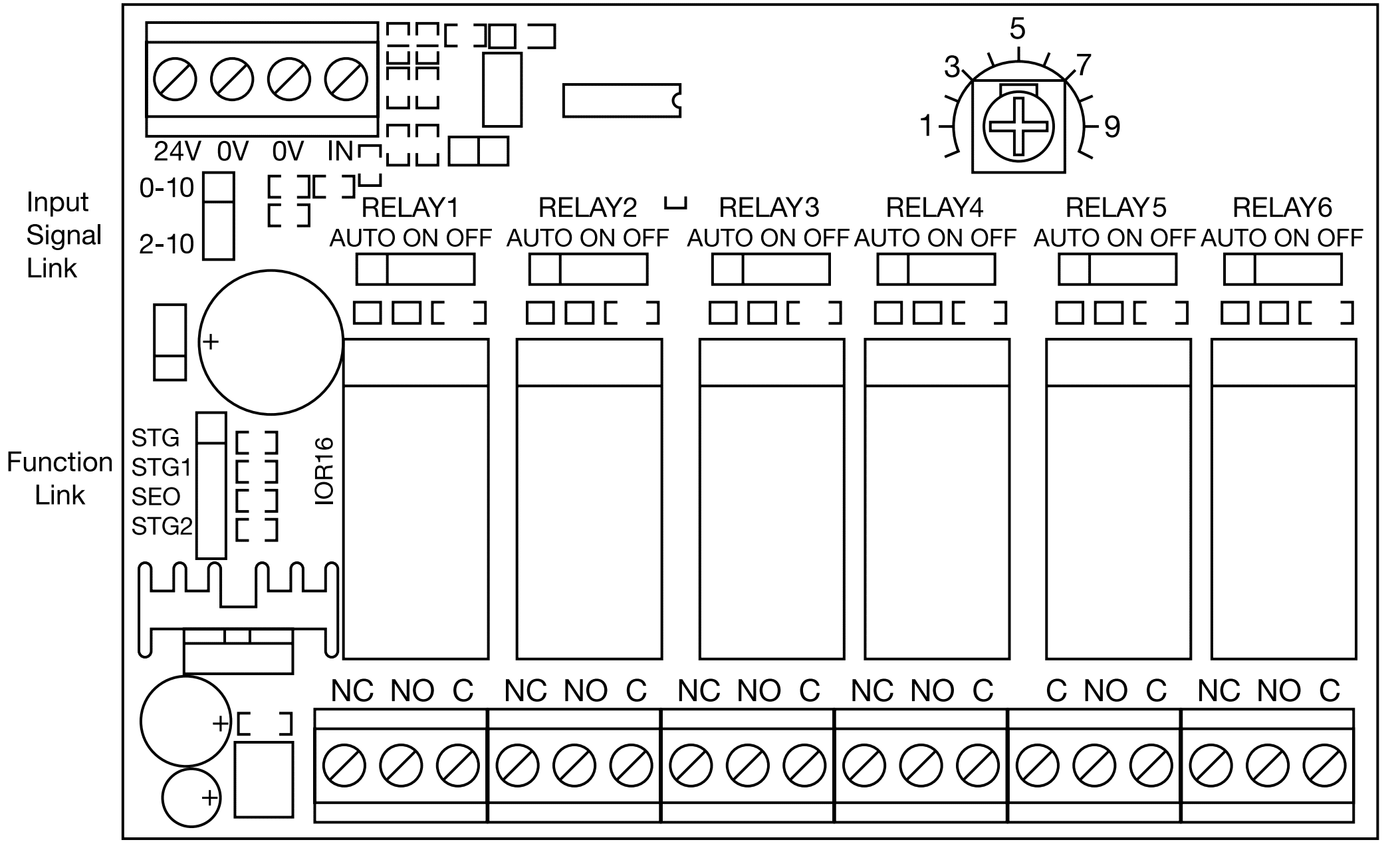

Manual Override: On/Off/Auto jumper selectable
Electrical Terminals: Rising cage connectors for 0.5-2.5mm² wire.
Operating Temp.: -10°C to +40°C, RH 0-80% non-condensing
Dimensions: 52(H) x 116(W) x 83(D)mm
