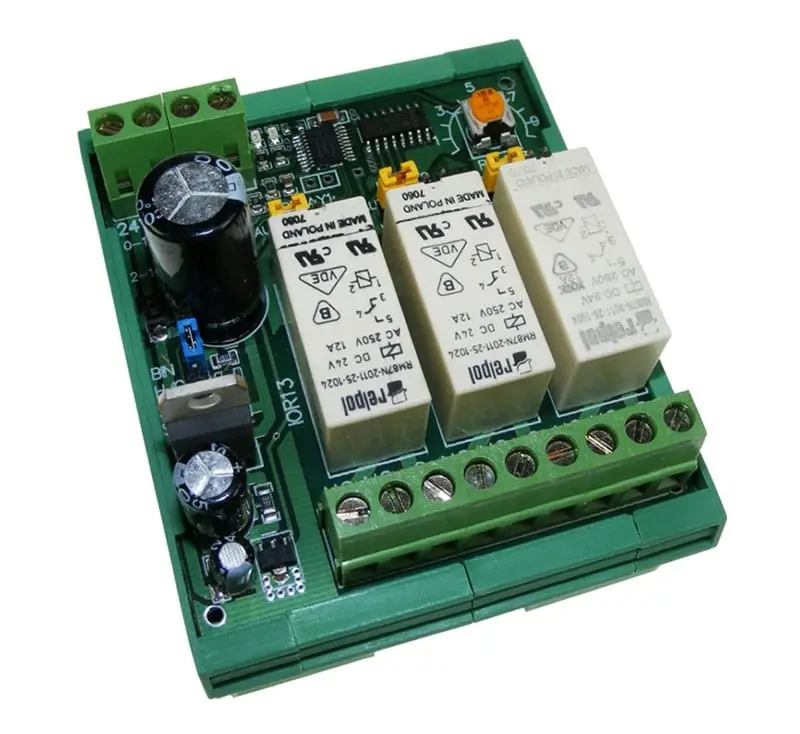

Three Stage Relay Module – IOR3
£34.60
This IO module is used with DDCs to convert an analogue control output to a binary, heat/cool, staged, or sequenced relay output. Typically, it is used in controls such as valves and contact changeovers.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
This IO module is used with DDCs to convert an analogue control output to a binary, heat/cool, staged, or sequenced relay output. Typically, it is used in controls such as valves and contact changeovers.
It is designed to clearly indicate each status via LEDs to facilitate operation and commissioning.
Specification
Input: 0 – 10Vdc 1mA min into 22KΩ impedance.
Output: 8Amp @230Vac (resistive)
Supply Voltage: 24Vac/dc +/- 10%
Operating Modes: Binary, Sequenced, Staged, Aux/ RL
Termination: Rising clamp for 0.5 to 2.5mm² cable.
Ambient: -10 to +40°C
Dimensions: 58(W) x 50(D)x 76(H)mm
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps |
4A, 6A, 8A |
