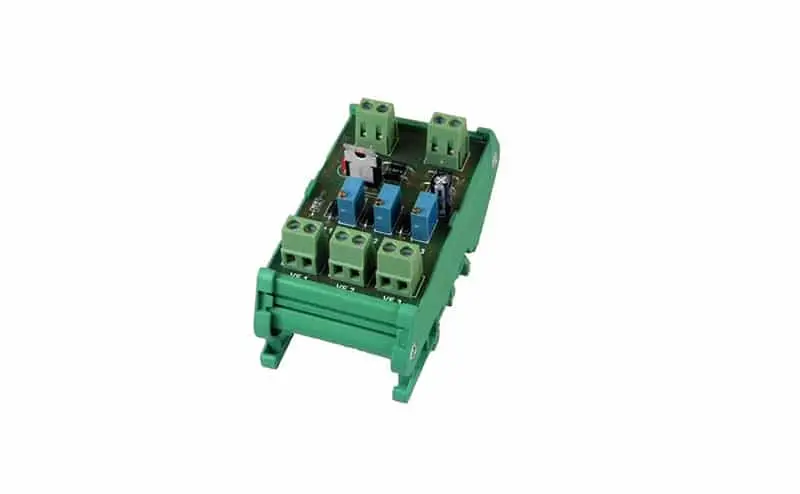

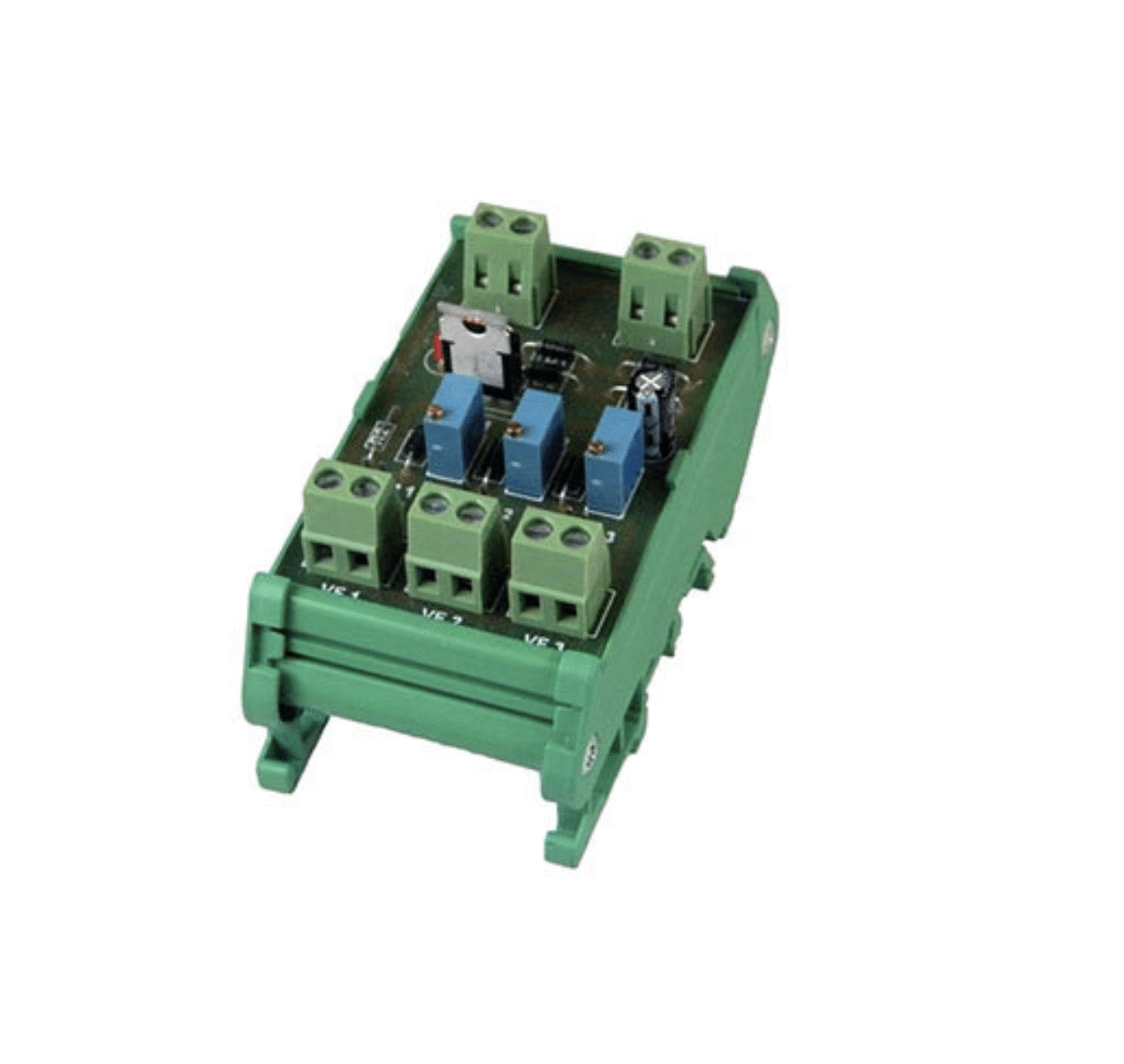

Volt Free To Voltage Converter – IOFS24-10
£35.00
The IOFS24-10 has been designed to provide 3 DC voltages from voltage-free inputs. The inputs can be adjusted to 0-10 volts. This module can be used for switched fan speed control where a 0-10 volt signal is needed, but only 3 speeds are needed.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
The IOFS24-10 has been designed to give 3 dc voltages using volt-free inputs. The inputs can be adjusted between 0-10 volts. This module can be used for switched fan speed control where a 0-10 volt signal is needed but only 3 speeds are needed.
Specification
Output: 3x adjustable dc voltages
Supply Voltage: 24Vac/dc +/- 10%
Termination: Rising clamp for 0.5 to 2.5mm² cable.
Ambient: -10 to +40°C
Dimensions: 47(W) x 49(D)x 93(H)mm
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps |
4A, 6A, 8A |
