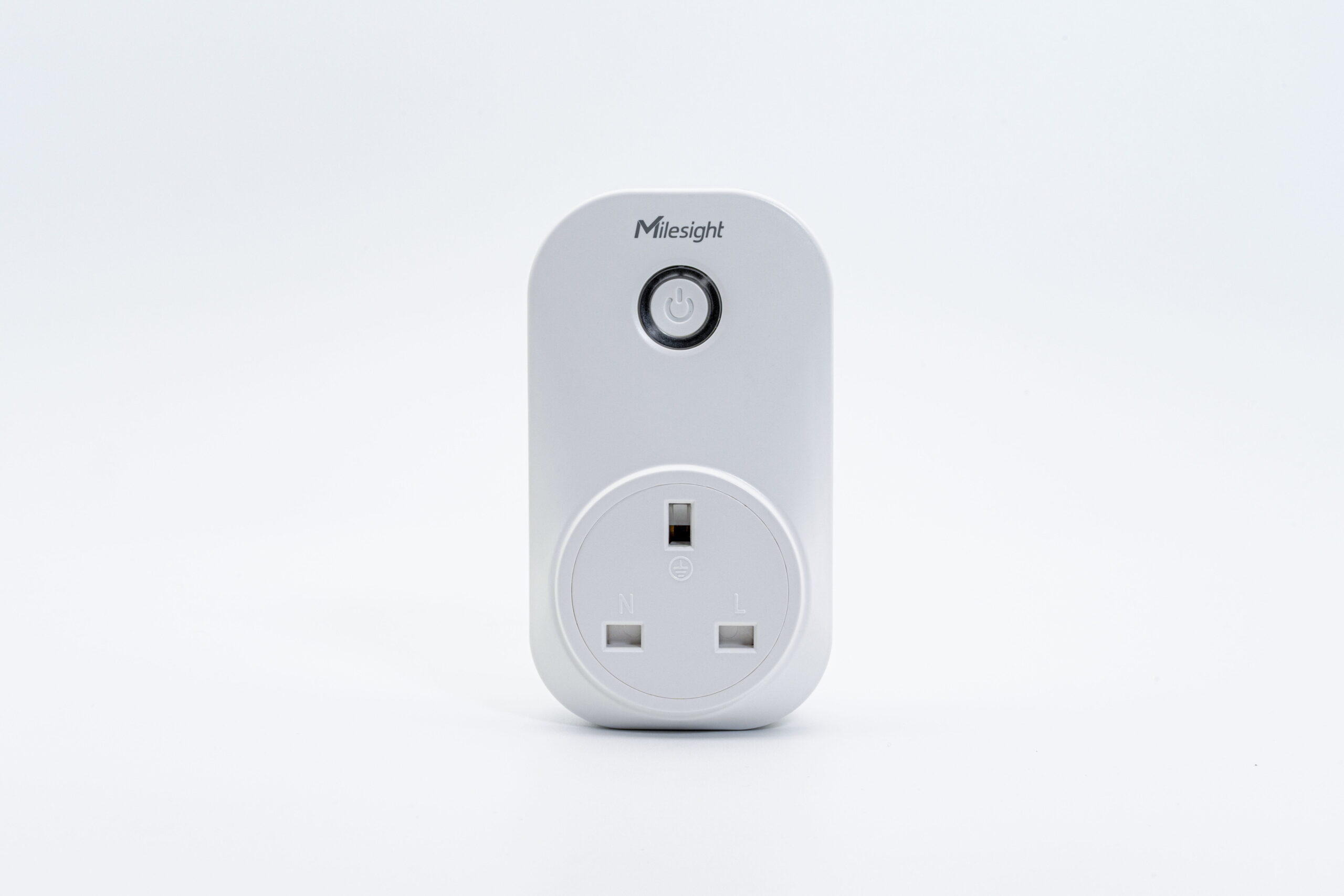

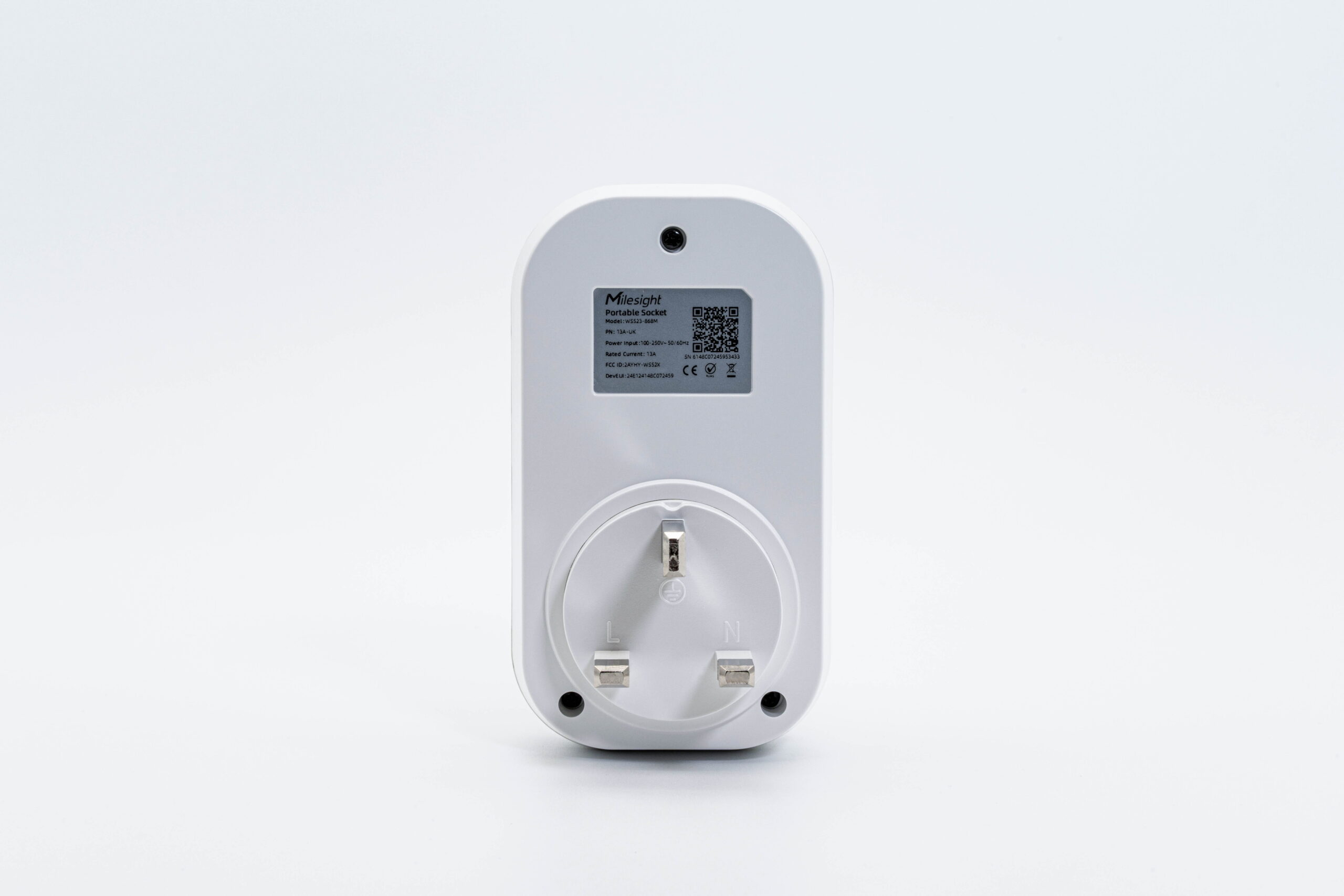

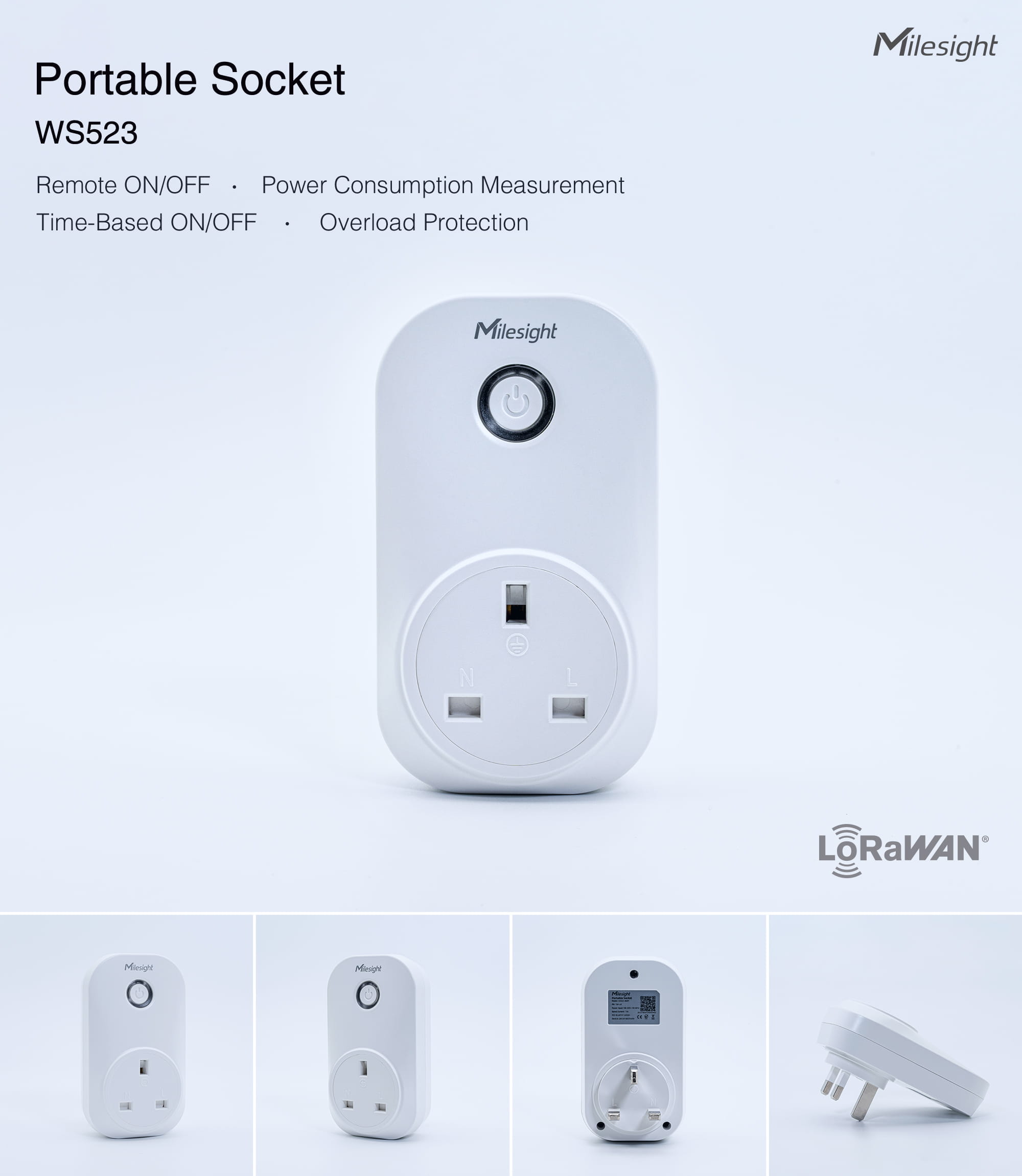

WS523-868M-13A-UK – Smart Portable Socket

WS523 is a LoRaWAN® smart portable socket for monitoring and controlling electrical appliances. Adopting most international socket types, WS523 can be used to turn electrical devices on or off locally or remotely, measure power consumption data for devices plugged into it, and even send overcurrent alarms. Compliant with a Milesight LoRaWAN® gateway, WS523 can be monitored and controlled via a web page or mobile App remotely and triggered by other Milesight sensors.

WS523 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.

Features

• Plug and play without any wiring, adopts most international socket standards
• Turn on/off devices and create timing switch-on/off schedules remotely
• Collect current, voltage, power, electrical consumption and support overload protection. Equipped with a capacitor for power outage alert
• Ultra-wide-distance wireless transmission up to line of sight of 15 km
• Equipped with NFC for one-touch configuration, supports card emulation mode
• Function well with standard LoRaWAN® gateways and network servers
• Supports Milesight D2D protocol to enable ultra-low-latency control without a gateway

Measuring Range

• Socket & Plug Type: UK 100 ~ 250 VAC, 50 ~ 60 Hz
• Max Load Capacity: 13 A, 250 VAC
• Measurement: Voltage(VAC), Current(A), Power Factor (%), Power Meter (kWh), Power (W)
