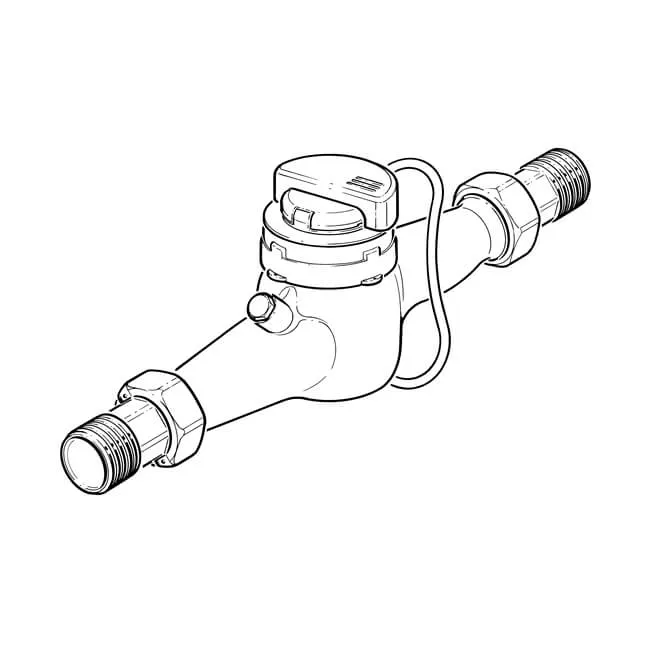

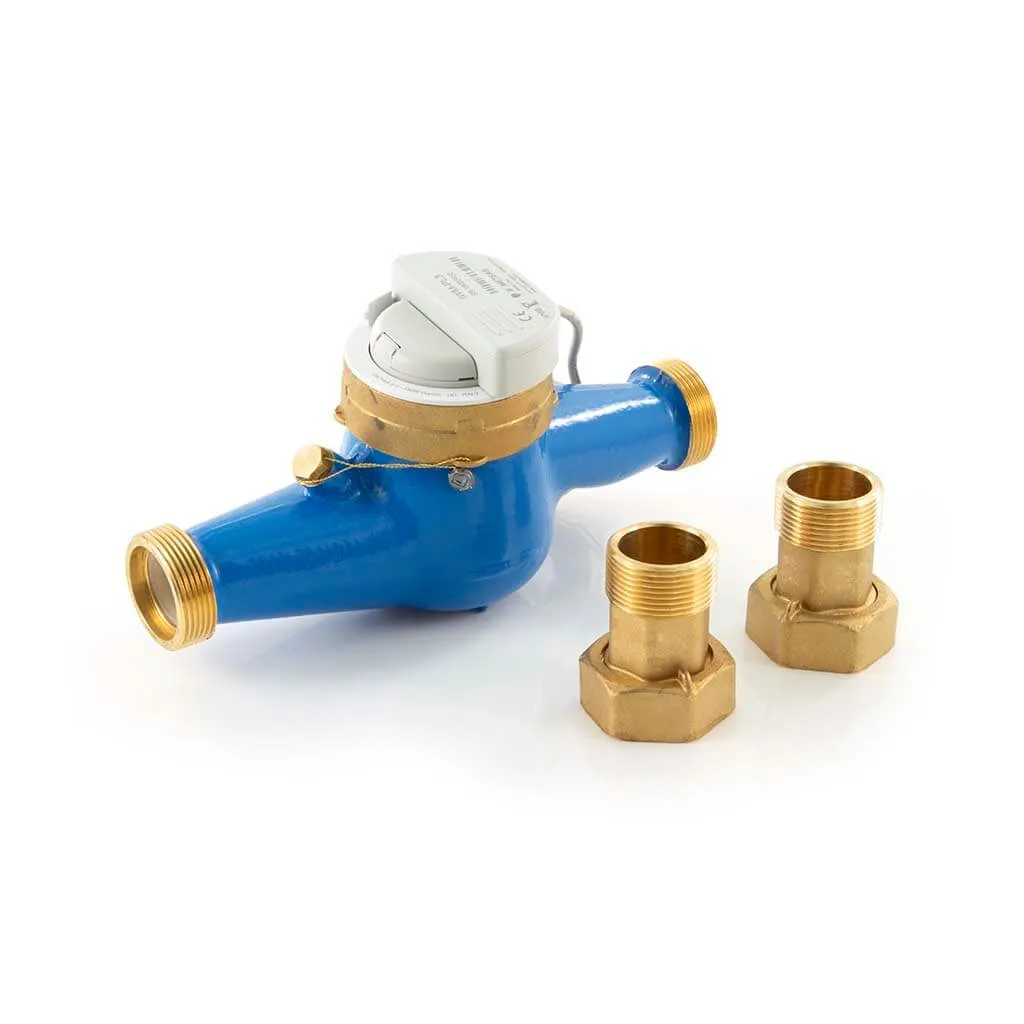

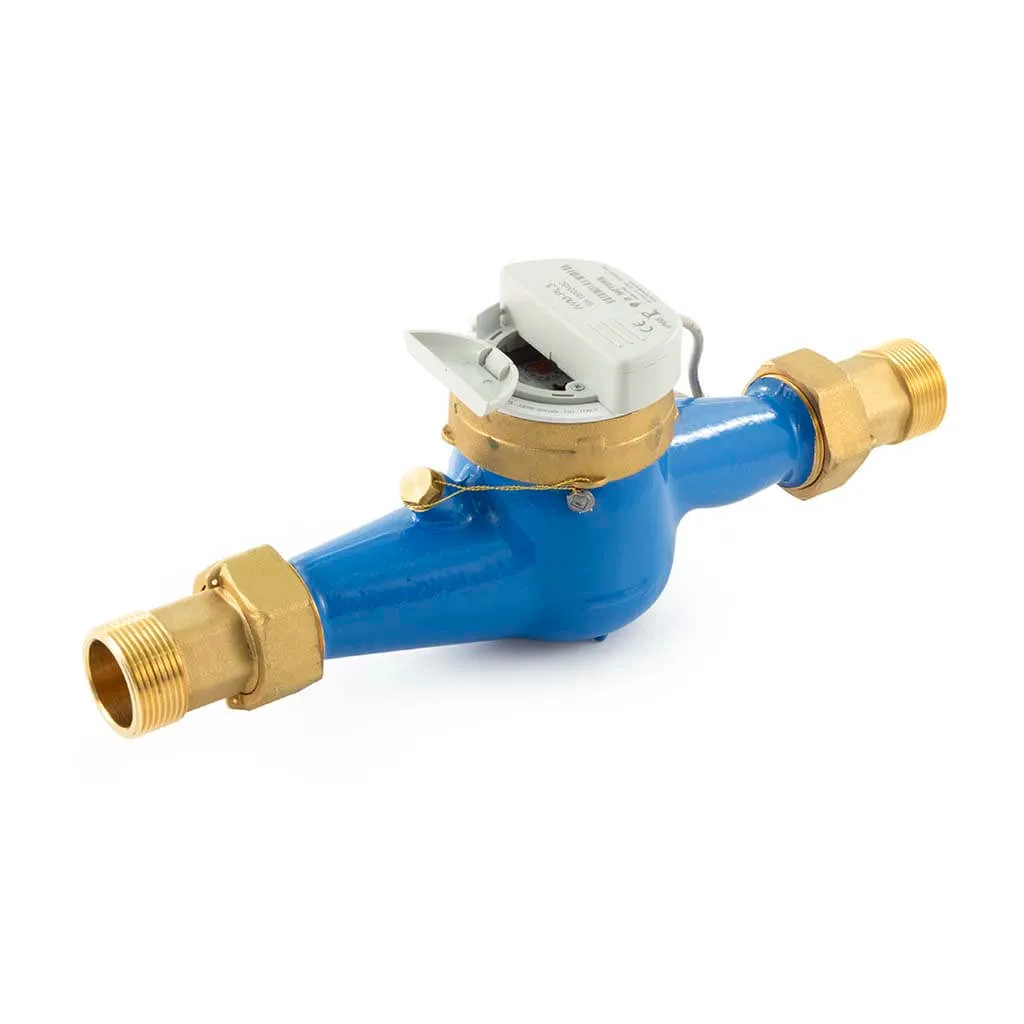

S50MJC- 50mm WRAS Cold Water Meter c/w Pulse, Qp 25

50 mm nominal bore, 2″ BSP TM thread.
Pulsed water meter for monitoring consumption, usually linked to an energy monitoring system. Cast copper alloy meter body with multi-jet and vane-wheel operation. Fitted with an inductive interface and an electronic pulse emitter module with a 1.5 m lead.
Approved according to MID standards up to R100-H and R50-VH.

Qp = permanent (nominal) flow rate
25 m³/h = 25,000 litres per hour ≈ 416.7 litres per minute ≈ 6.94 litres/second

For example, a meter marked Qp 25 is typically intended to measure accurately around a continuous flow of 25 m³/h, although it can usually handle a higher flow for shorter periods.

Benefits

• 50 mm nominal bore with 2″ BSP TM thread for precise measurement
• Constructed from durable cast copper alloy for longevity
• Multi-jet and vane wheel operation for accurate readings
• Inductive interface and electronic pulse emitter with Mbus compatibility
• Approved to MID standards up to R100-H and R50-VH
• Maximum flow rate of 25 m³/h and pressure rating of 16 bar
• 1 pulse per 10 litres for precise monitoring
• WRAS approved for safety and compliance
• Maximum cold water temperature of 50°C for versatility in usage

Water Meter Pulsed DATASHEET

You can find a spare Reed Switch Pulse unit at Screwed Spare Pulse – Cold.
